VERTEX-MILLING MACHINE-ACCESSORIES-“VISE”，VISE，ROTARY TABLE
VERTEX Precision Index Table,VIT-SERIES 5 DEGREE

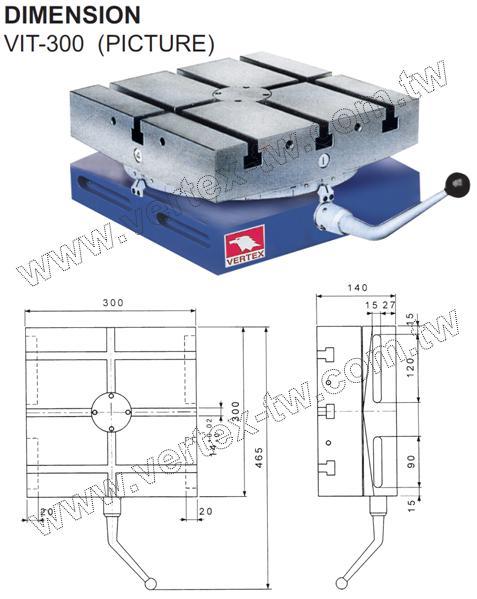

VIT-300-15
Specification
| ORDER NO. | SIZE | HEIGHT | Longitudinal | Revolving | Number | WEIGHT | CODE NO. |
Inquriy |
|
|
VIT-300-15 |
300x300 |
140 |
Manual |
Manual |
15° |
90 |
1001-010(15) |
Inquriy | |
|
VIT-450-1 |
450x450 |
170 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
200 |
1001-071 |
Inquriy | |
|
VIT-450-5 |
450x450 |
170 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
200 |
1001-081 |
Inquriy | |
|
VIT-600-1 |
600x600 |
200 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
400 |
1001-072 |
Inquriy | |
|
VIT-600-5 |
600x600 |
200 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
400 |
1001-082 |
Inquriy | |
|
VIT-700-1 |
700x700 |
220 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
600 |
1001-073 |
Inquriy | |
|
VIT-700-5 |
700x700 |
220 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
600 |
1001-083 |
Inquriy | |
 |
|||||||||
|
VIT-800-5 |
800x800 |
280 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
900 |
1001-084 |
Inquriy | |
|
VIT-1000-5 |
1000x1000 |
300 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
1200 |
1001-085 |
Inquriy | |
|
VIT-1200-5 |
1200x1200 |
340 |
Air Pressure 5~8kgs/c㎡ |
Manual |
1° or 5° |
2000 |
1001-086 |
Inquriy | |
