"TAIWAN VERTEX SMALL TYPE MACHINE-DRILL END MILL GRINDER

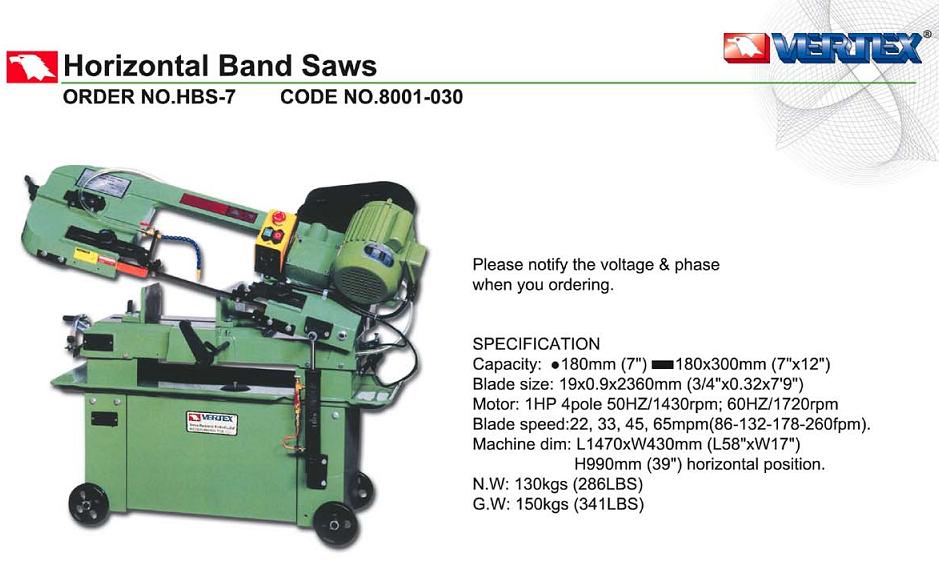

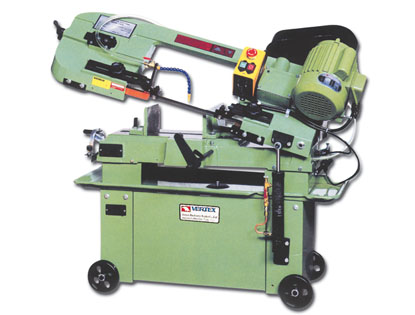

VERTEX Horizontal Band Saws
HBS-7
ORDER NO. HBS-7
CODE NO. 8001-030
Please notify the voltage & phase when you ordering.
220V OR 380V; 1PH OR 3PH
VERTEX Horizontal Band Saws
SPECIFICATION
Cutting capacity: Rod:180mm (7”) PLATE:180x300mm (7”x12”)
Blade size: 19x0.9x2360mm,3/4”x0.032x7.9”
Motor : 1HP 4pole 50Hz/ 1430rpm; 60Hz/1720rpm.
Blade speed : 22,33,45,65mpm;86-132-178-260fpm.
Machine dim: L1470xW430mm (L58”W17”)
H990mm (39”) horixontal position.
N.W: 130kgs (286LBS)
G.W.: 150kgs (341LBS)
