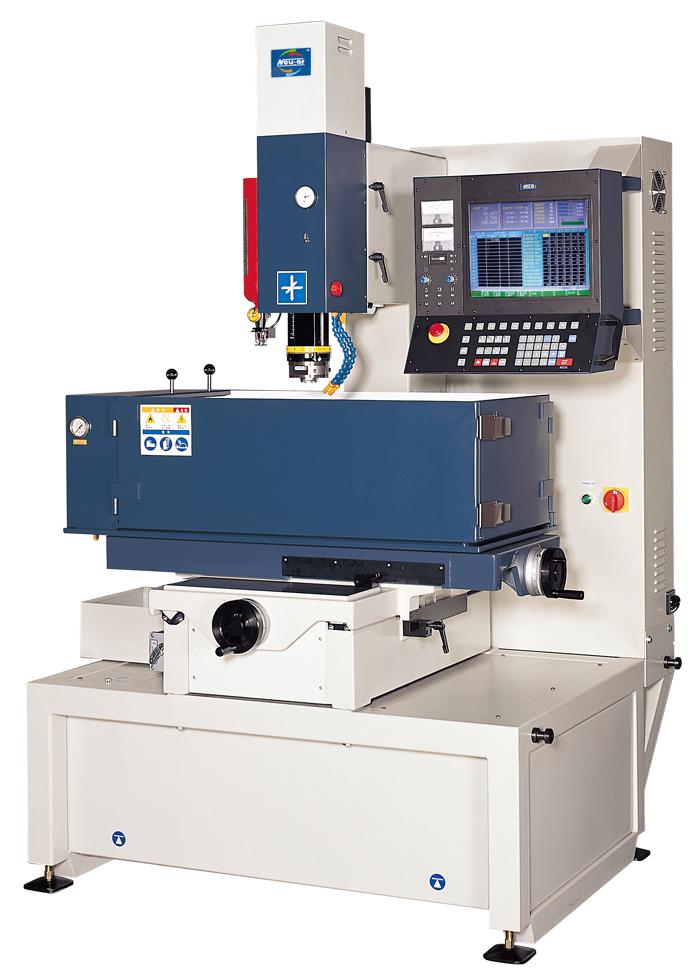

ZNC-50
ZNC-50


  1. Build in Expert System.

  2. The EDM parameter can be changed according to the Auto program setting.

  3. Automatic 14-step fine machining in single pass.

  4. Equipped with high precision Heidenhain 1μm linear encoder.

  5. Chinese/ English; Metric/ Inch unit can be displayed on screen.

  6. 60 sets working coordinate setting.

  7. Automatic Z axis calibration and positioning.

  8. Be able to machining large area with stable and slow retracting of residue.

  9. High precision ball screw for delicate transmission.

  10. Be able to machining deep hole with retracting of residue efficiently.

  11. Unify operation screen interface is easy to be understood.

  12. Be able to indicate electrode wearing, surface toughness, sparking gap of electrode.

  13. 0.5A circuit system for finest finish.

  14. Multiple fire-proof detection system.

  15. Double erect type filtration system separates carbon residue more efficiently.


Specification



SPECIFICATIONS ZNC - 50
Work Tank Dimensions
940 x 530 x 350 mm
Work Table Dimensions
630 x 360 mm
XYZ Axis Travel
350 x 250 x 200 mm
Distance from Main Axis to Table
520 mm
Auxiliary Travel of Z Axis
200 mm
Max. Workpiece Weight
500 kg
Max. Electrode Weight
50 kg
Max. Capacity of Dielectric
300 liters
Max. Machining Speed
420 mm3 / min
Min. Wear Rate
< 0.1 %
Best Surface Finish
< Ra 0.18 μm
Max. Output Current
50 A
Input Power
3.3 kVA
Machine Dimensions L x W x H
140 x 138 x 220 cm
Total Weight of Machine
1,375 kg
