ZNC Series

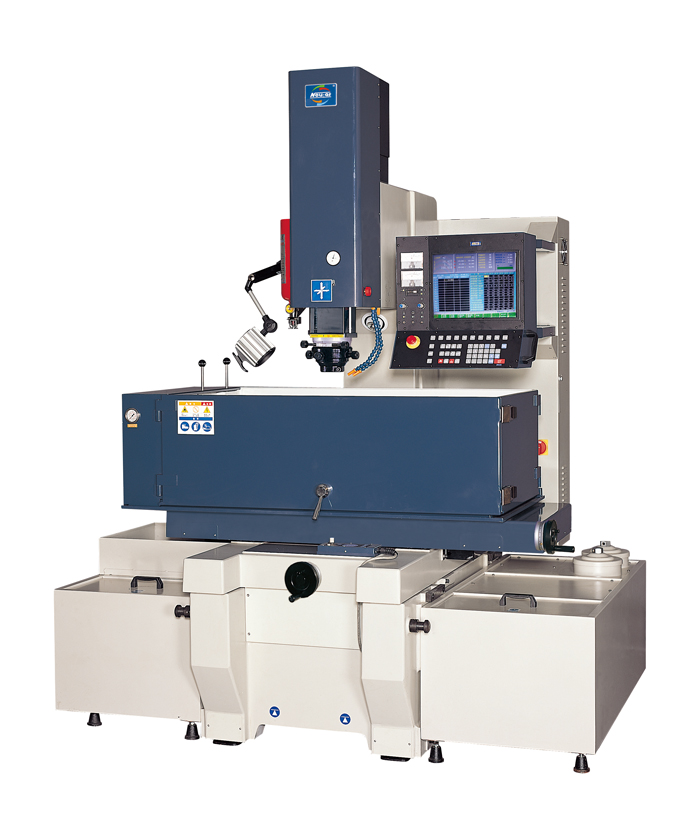

ZNC-90
ZNC-90


  1. Build in Expert System.

  2. The EDM parameter can be changed according to the Auto program setting.

  3. Automatic 14-step fine machining in single pass.

  4. Equipped with high precision Heidenhain 1μm linear encoder.

  5. Chinese/ English; Metric/ Inch unit can be displayed on screen.

  6. 60 sets working coordinate setting.

  7. Automatic Z axis calibration and positioning.

  8. Be able to machining large area with stable and slow retracting of residue.

  9. High precision ball screw for delicate transmission.

  10. Be able to machining deep hole with retracting of residue efficiently.

  11. Unify operation screen interface is easy to be understood.

  12. Be able to indicate electrode wearing, surface toughness, sparking gap of electrode.

  13. 0.5A circuit system for finest finish.

  14. Multiple fire-proof detection system.

  15. Double erect type filtration system separates carbon residue more efficiently.


Specification



SPECIFICATIONS ZNC - 90
Work Tank Dimensions
1240 x 700 x 435 mm
Work Table Dimensions
800 x 450 mm
XYZ Axis Travel
500 x 400 x 350 mm
Distance from Main Axis to Table
650 mm
Auxiliary Travel of Z Axis
170mm
Max. Workpiece Weight
1350 kg
Max. Electrode Weight
200 kg
Max. Capacity of Dielectric
600 liters
Max. Machining Speed
480 mm3 / min
Min. Wear Rate
< 0.1 %
Best Surface Finish
< Ra 0.18 μm
Max. Output Current
60 A
Input Power
4.06 kVA
Machine Dimensions L x W x H
205 x 180 x 244 cm
Total Weight of Machine
2,620 kg
