Specification

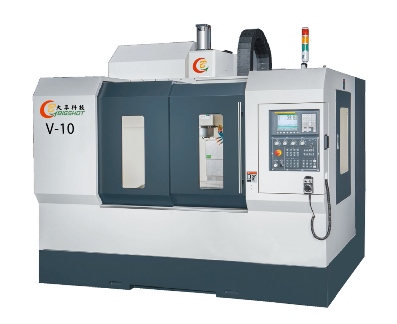

MODEL | V5 | V10 | V16 |
Table | |||
Work Table mm | 650x430 | 1200x550 | 1720x850 |
T-Slots (W×No.) mm | 14x4 | 18x4 | 18x7 |
Max. Table Load kg | 250 | 1000 | 2000 |
TRAVEL | |||
X Axis mm | 500 | 1000 | 1,600 |
Y Axis mm | 400 | 600 | 900 |
Z Axis mm | 500 | 620 | 800 |
Spindle Nose to Table Surface mm | 155~605 | 130-750 | 100-900 |
SPAN | |||
X-aixs span / width mm | 250/#25 | 330/#35 | 455/#55 |
Y-aixs span / width mm | 440/#35 | 650/#35 | 583/977/#55 |
Z-aixs span / width mm | 310/#35 | 410/#45 | 435/#120x50 |
Spindle | |||
Spindle Taper | BT30 | BT40/ | BT50 |
Spindle Speed rpm | 10,000 | 10,000 | 8000 |
X/Y/Z axis servo motor | 1.5/1.5/2 | 2/2/3 | 3/4/3 |
Spindle Motor KW | 5.5/7.5(OP) | 7.5/11(OP) | 7.5/15(OP) |
FEED RATE | |||
X/Y/Z Axis Rapid Traverse m/min | 48/48/48 | 30/30/30 | 24/24/24 |
Cutting Feed Rate m/min | 10 | 10 | 10 |
ATC(Automatic Tool Changer) | |||
ATC Type | ARMLESS /Arm(OP) | ARMLESS / Arm (OP) | Arm / Arm (OP) |
Tool Storage Capacity pc | 12/16(OP) | 20/24(OP) | 24/32(OP) |
Max. Tool Weight kg | 3 | 7 | 15 |
Max. Tool (Diam.×Length) φ×mm | φ60x150 | φ100x300 | φ110x300 |
Tool change time sec | 2/1.8(OP) | 2/1.8(OP) | 1.8 |
MACHINE SIZE | |||
Air source kgs/cm | 6 | 6 | 6 |
Machine Dimension (L*W*H) | 1,906*2,495*2,387 | 2,810*2,180*2,700 | 4,400*3,700*3,120 |
Machine Weight kgs | 2900 | 6200 | 18000 |
Slide way type | 3 axes Linear Guide Ways | 3 axes Linear Guide Ways | X,Y axes Linear Guide Ways ; Z axis Solid Box Guide Ways |
