Vertical Machining Center (V Series)
CNC Vertical Machine Center

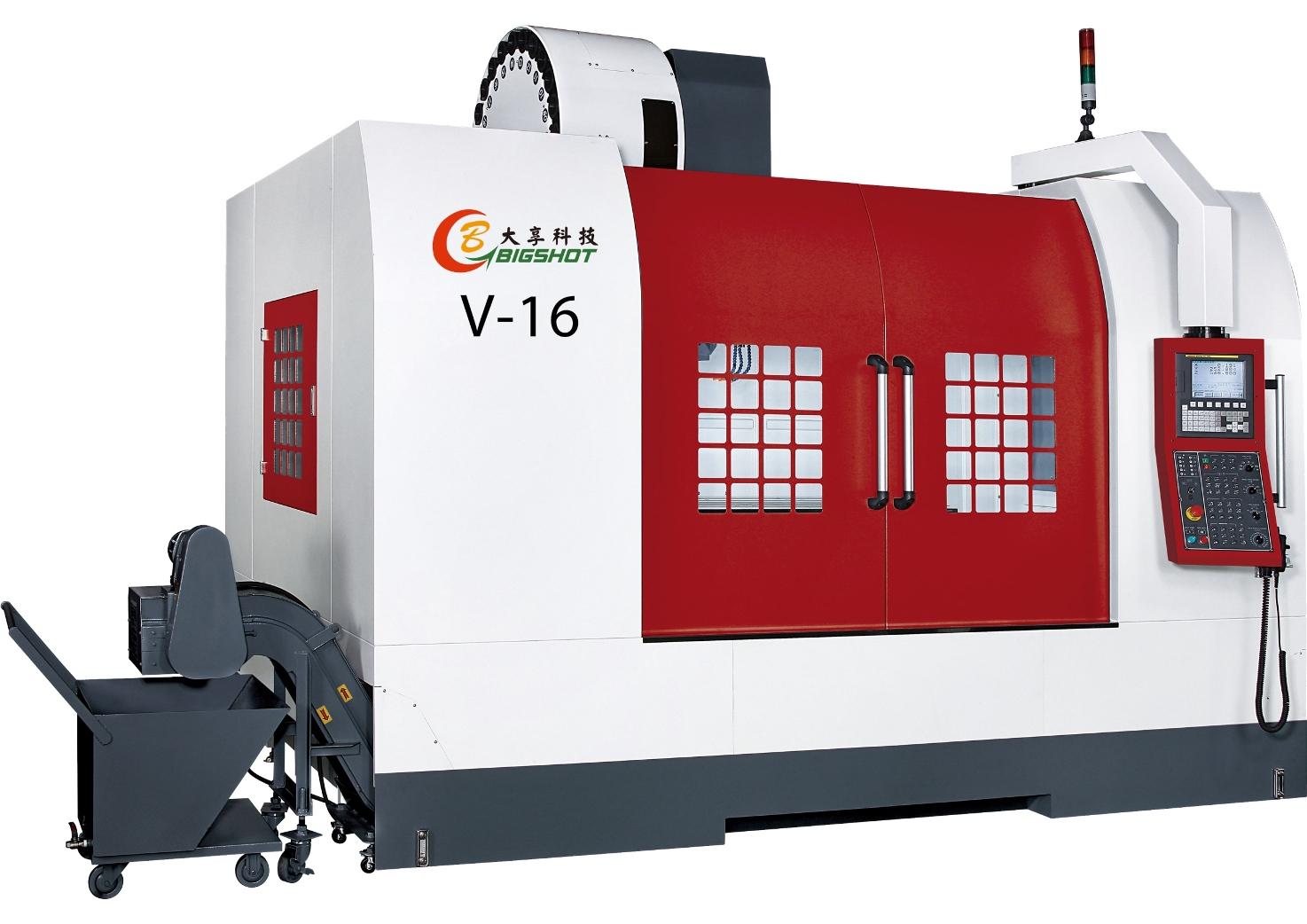

V-16

Specification


MODELV5V10V16
Table
Work Table mm650x4301200x5501720x850
T-Slots (W×No.) mm14x418x418x7
Max. Table Load kg25010002000
TRAVEL
X Axis mm50010001,600
Y Axis mm400600900
Z Axis mm500620800
Spindle Nose to Table Surface mm155~605130-750100-900
SPAN
X-aixs span / width  mm250/#25330/#35455/#55
Y-aixs span / width  mm440/#35650/#35583/977/#55
Z-aixs span / width  mm310/#35410/#45435/#120x50
Spindle
Spindle TaperBT30BT40/BT50
Spindle Speed  rpm10,00010,0008000
X/Y/Z axis servo motor1.5/1.5/22/2/33/4/3
Spindle Motor  KW5.5/7.5(OP)7.5/11(OP)7.5/15(OP)
FEED RATE
X/Y/Z Axis Rapid Traverse m/min48/48/4830/30/3024/24/24
Cutting Feed Rate  m/min101010
ATC(Automatic Tool Changer)
ATC TypeARMLESS /Arm(OP)ARMLESS / Arm (OP)Arm / Arm (OP)
Tool Storage Capacity pc12/16(OP)20/24(OP)24/32(OP)
Max. Tool Weight kg3715
Max. Tool (Diam.×Length) φ×mmφ60x150φ100x300φ110x300
Tool change time  sec2/1.8(OP)2/1.8(OP)1.8
MACHINE SIZE
Air source kgs/cm666
Machine Dimension (L*W*H)1,906*2,495*2,3872,810*2,180*2,7004,400*3,700*3,120
Machine Weight  kgs2900620018000
Slide way type3 axes Linear Guide Ways3 axes Linear Guide WaysX,Y axes Linear Guide Ways ;
Z axis Solid Box Guide Ways
