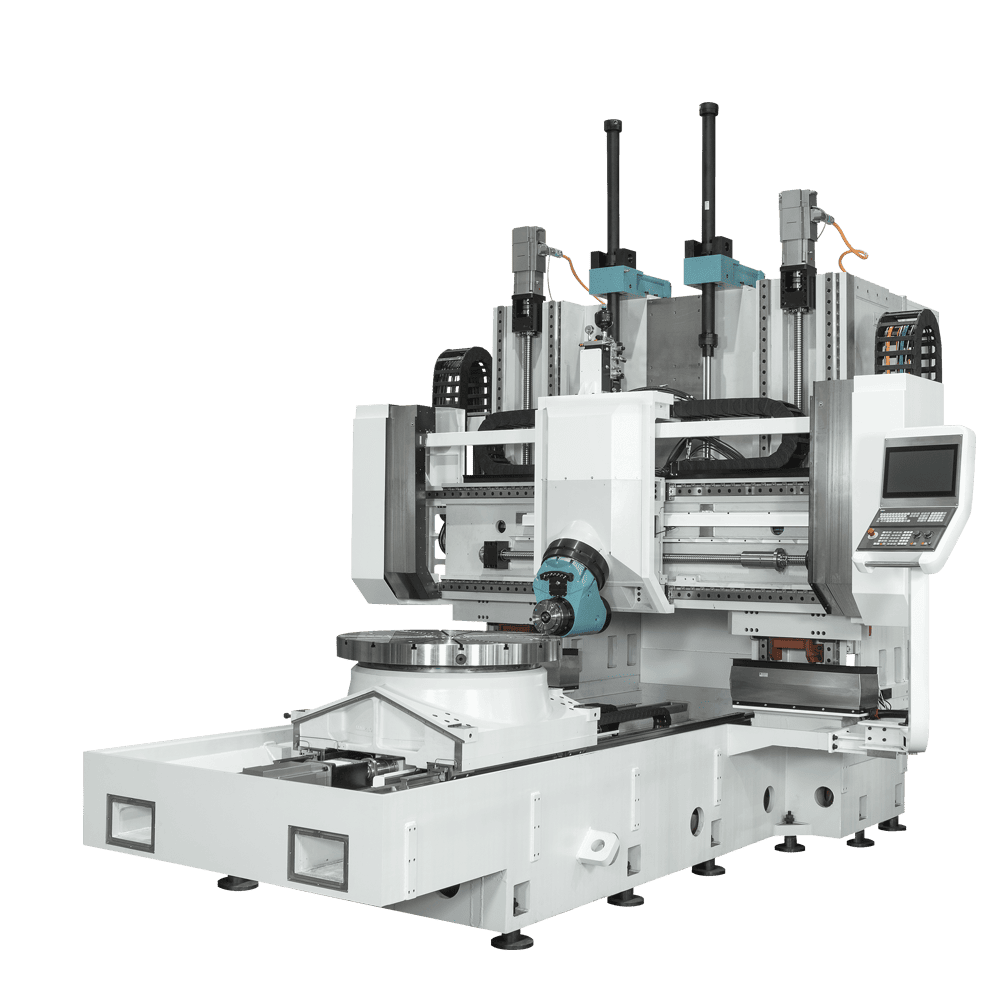

The range of Energy series machining centers, a portal style machine with a moving crossrail, is design to perform continuous 5-axis machining.
Main Features
Symmetrical portal for maximum guarantee of geometric precisions retention with time.
Hydraulically balanced crossrail for maximum axes dynamics and reduced energy consumption.
Milling and turning compound.
Hydrostatic guide rail rotary table
Built-in motor drive for B/C axis
Double servo Z axis moving crossrail structure enhance the machine cutting efficiency.
X/Y/Z axes rapid feed rate Max. 30/30/24 m/min , the excellent dynamic characteristics could
SINUMERIK 840D SL CNC controller with excellent five axes simultaneous machining function.
Specifications

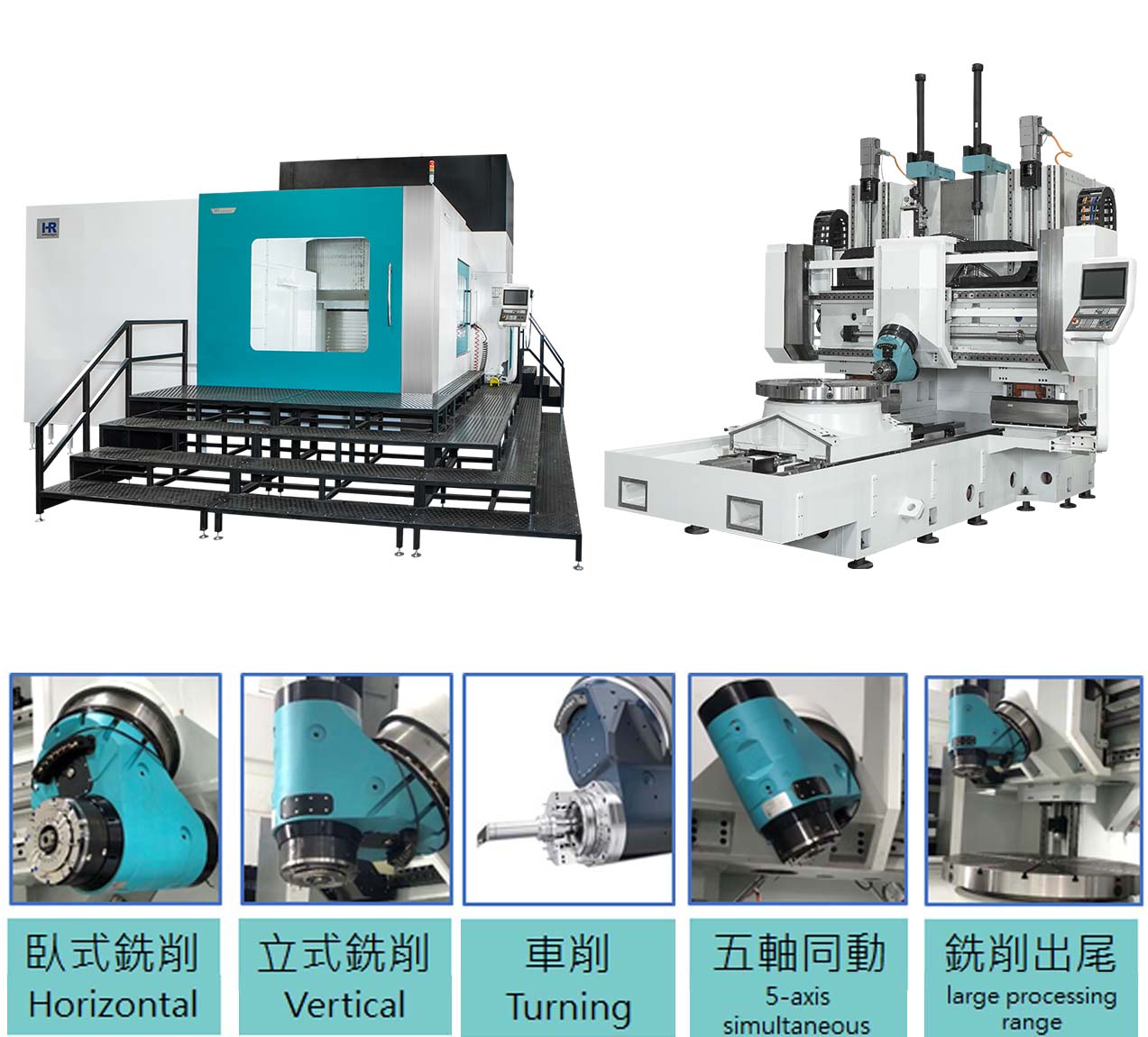

5-sided and/or 5-axis simultaneous machining, including turning, in one set-up.
1.The vertical milling can span the φ1320 machining area.
2.It has the Z-axis measuring tool stroke under the exclusive worktable, which does not affect the processing area.
3.The moving beam Z-axis structure has the smallest overhang and the highest rigidity.。

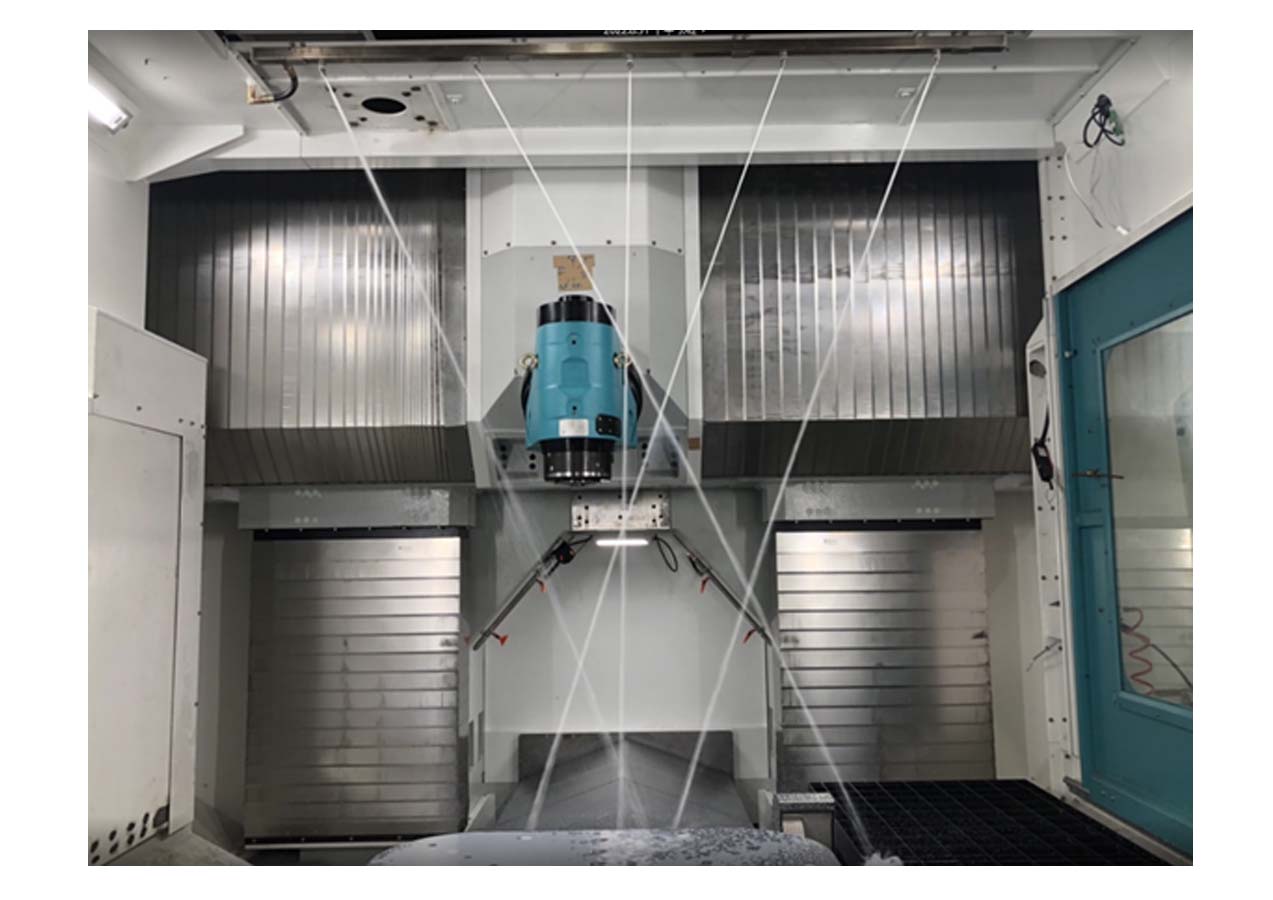

HR Powerful Workpiece Shower System
1.Bowl-shaped workpiece chip buildup problem.
2.M Code can be used for chip removal during machining.
3.High-pressure nozzle can achieve strong chip flushing effect.
4.The spray angle can be pre-adjusted
