Products

HRE Series
Customized 2 meters ~ 16 meters
HRE2505

Hone Right provides comprehensive technical expertise and support. When you purchase a Hone Right gantry-type surface grinder, you not only acquire a machine of excellent quality but also benefit from the most comprehensive technical assistance and service. With over two decades of practical experience in surface grinding, Yashang is well-positioned to offer customers rich expertise in grinding techniques. We are always ready to address any processing and grinding-related issues.

We are also attentive to your needs and requirements. We offer customized machines to meet your specific processing challenges and precision demands.

Specification

Specifications

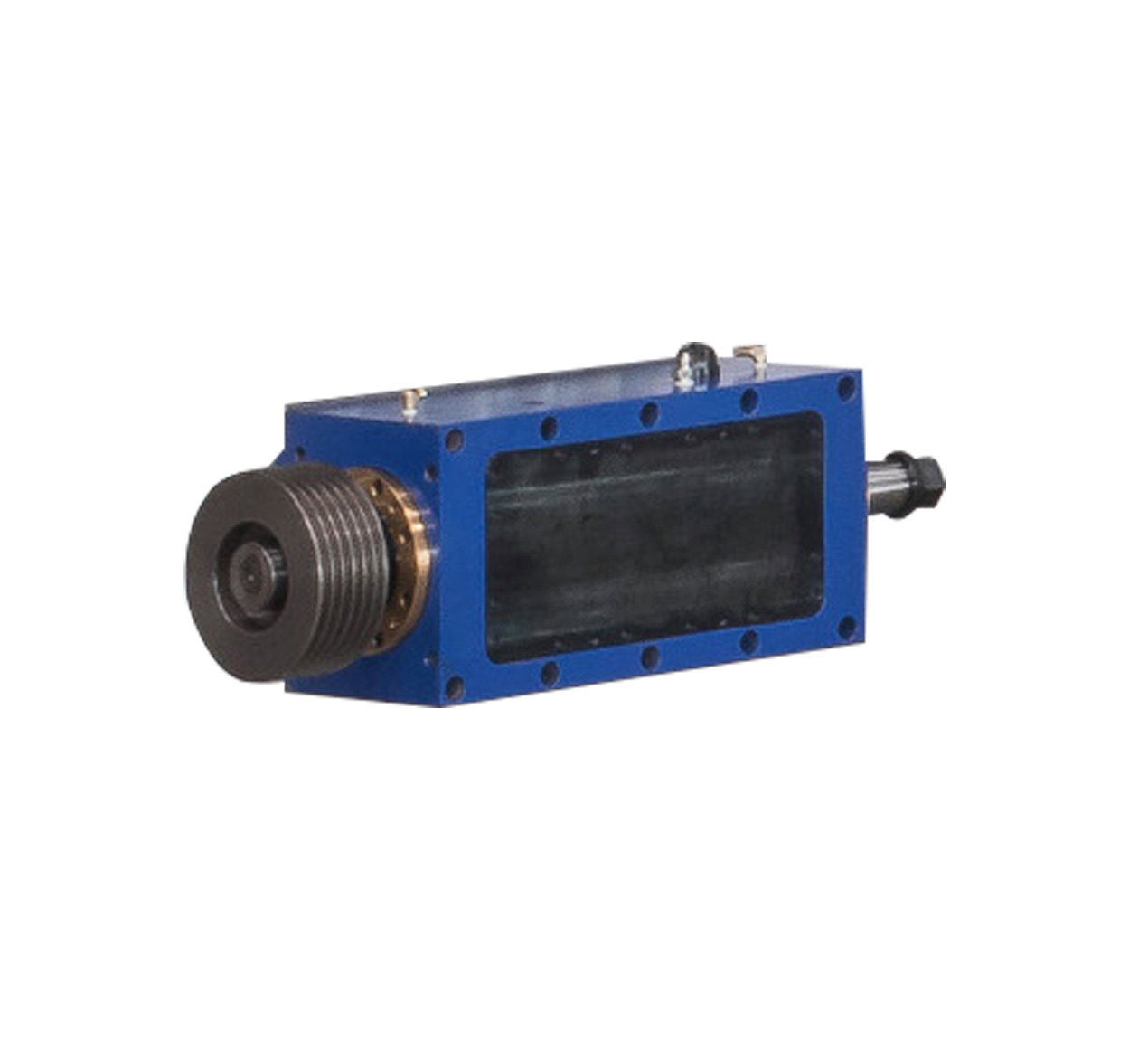

Oil Film Surrounded Spindle

The wheel spindle is supported by a metal bushing which is surrounded by an oil film. This reduces heat friction, abnormal wear and provides smooth operation for a better surface finish.

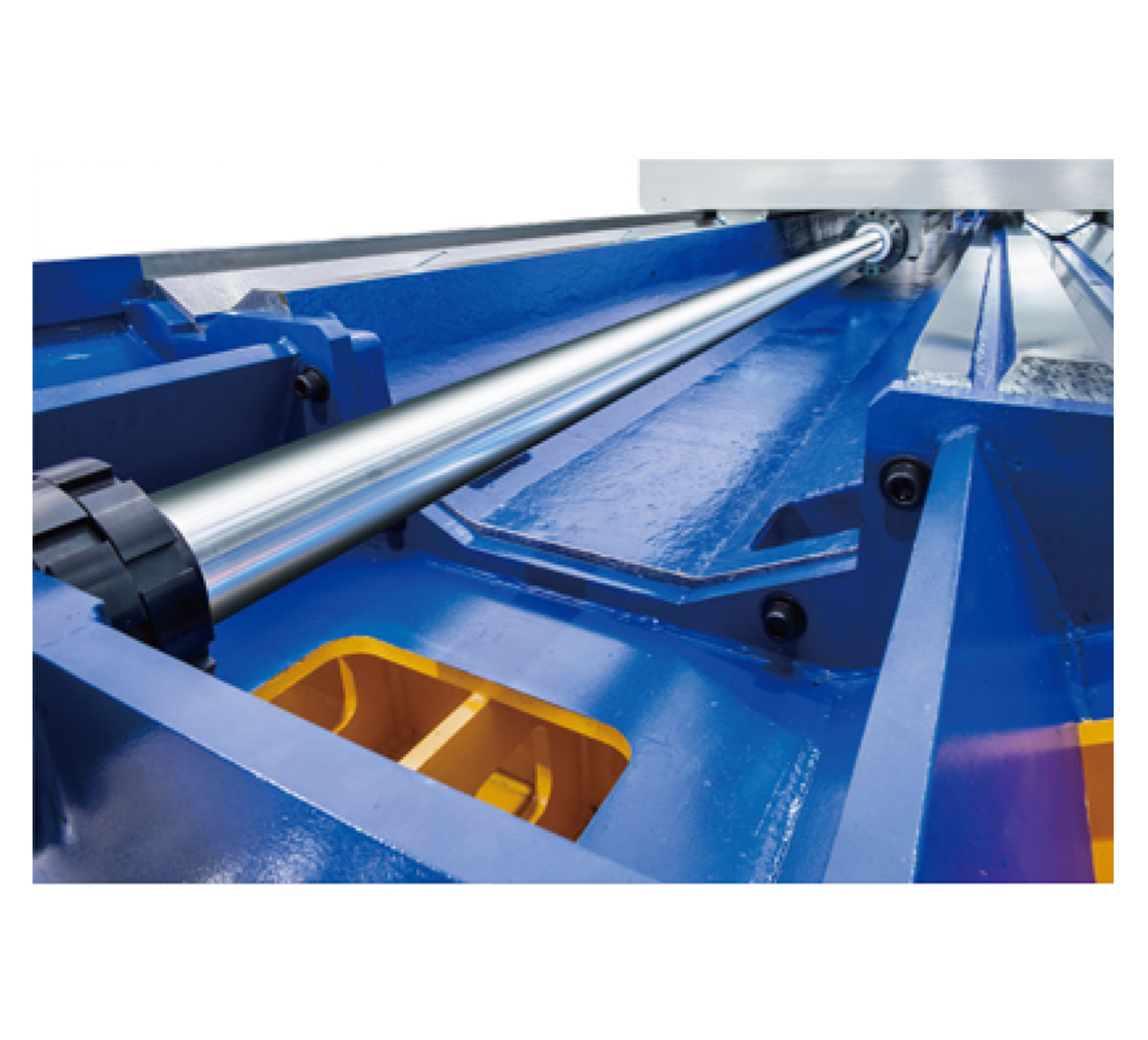

X-axis Driven by Hydraulic Cylinder

The X-axis movement is driven by a double-acting hydraulic cylinder, featuring smooth motion without deformation or oil leakage problem.
X-axis moving speed can be adjusted on the control panel.
The hydraulic system features buffering function to eliminate impact problem at the end of stroke. It not only provides a protection for the hydraulic cylinder but also extends cylinder life.

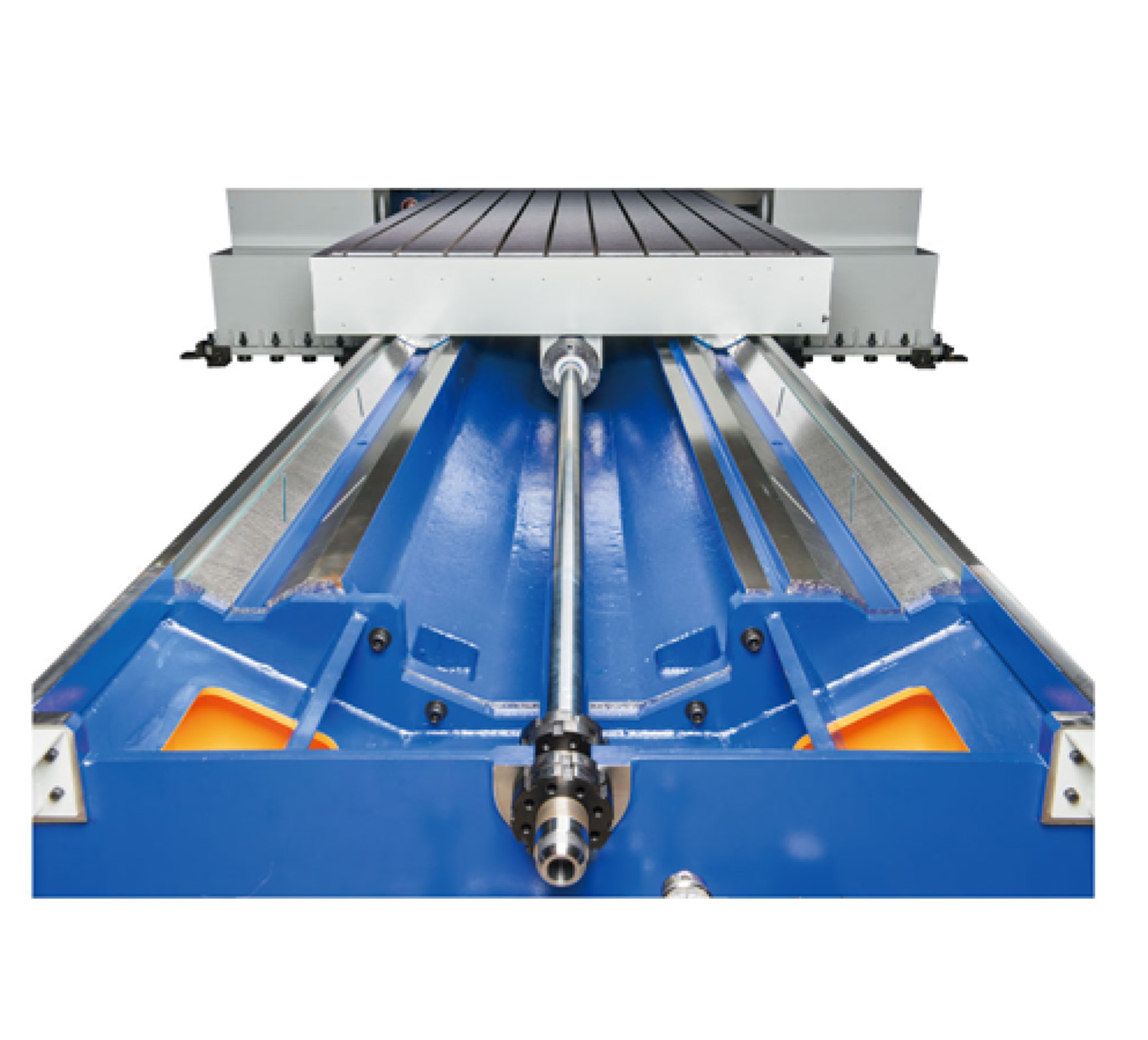

Double "V" Slidevays on Base

Extra large double "V" slideways on the base effectively increase contact area between mating surfaces. This provides the rigid support for heavy workpiece.

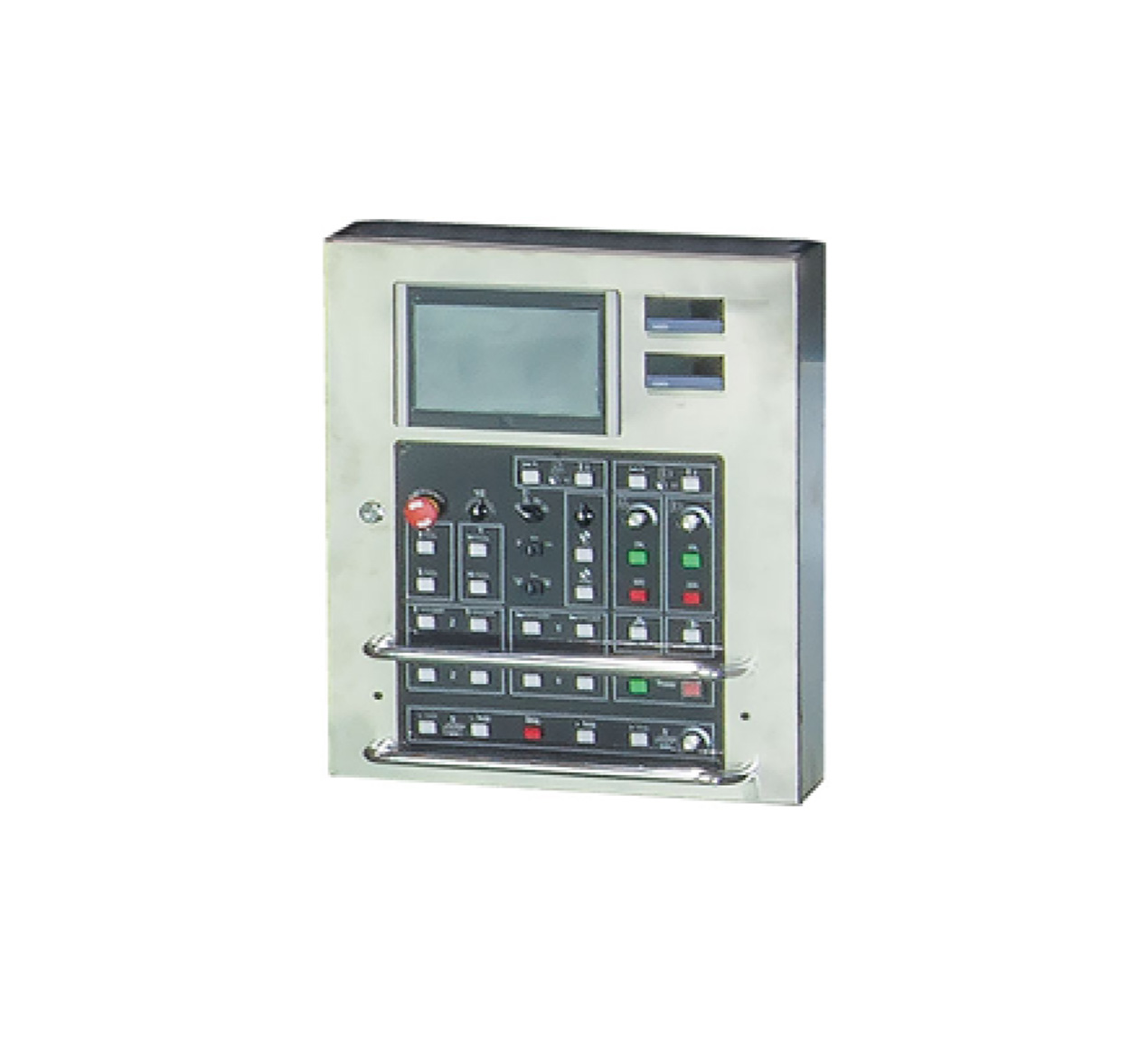

Choice of NC or CNC Control

The surface grinder is available to equip with a NC or CNC control, featuring powerful functions and making grinding operation easy to learn and operate.

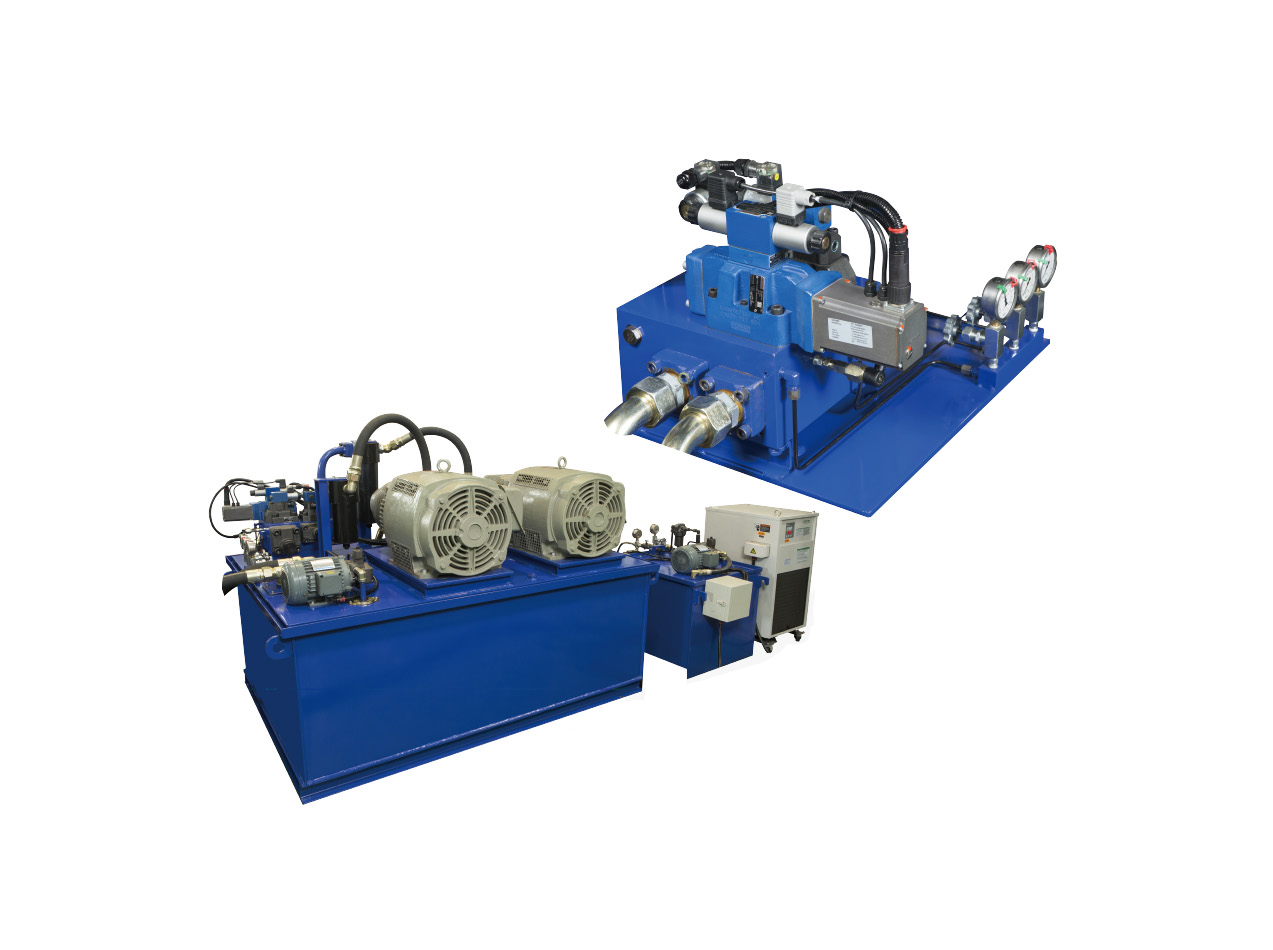

Hydraulic Power Unit

The hydraulic power unit employs a powerful device, providing powerful drive for X-axis movement.
Smooth movement on X-axis can be ensured even at low speed.
The cooler enables the hydraulic oil to maintain a constant temperature for reliable operation.

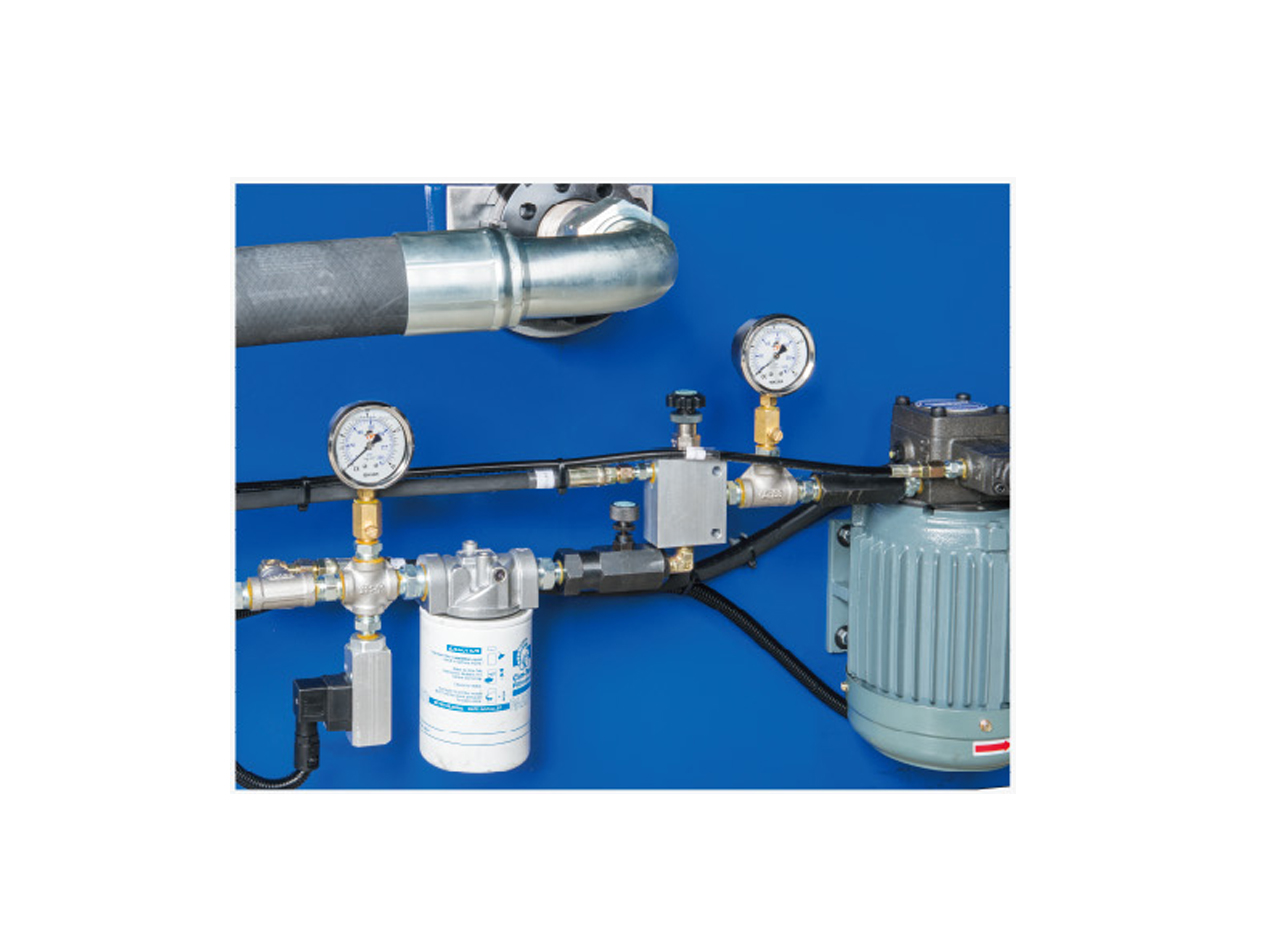

Circulated Lubrication Oil Circuit

Lubrication oil is circulated and detected. In case of lack of oil, the machine stops automatically.

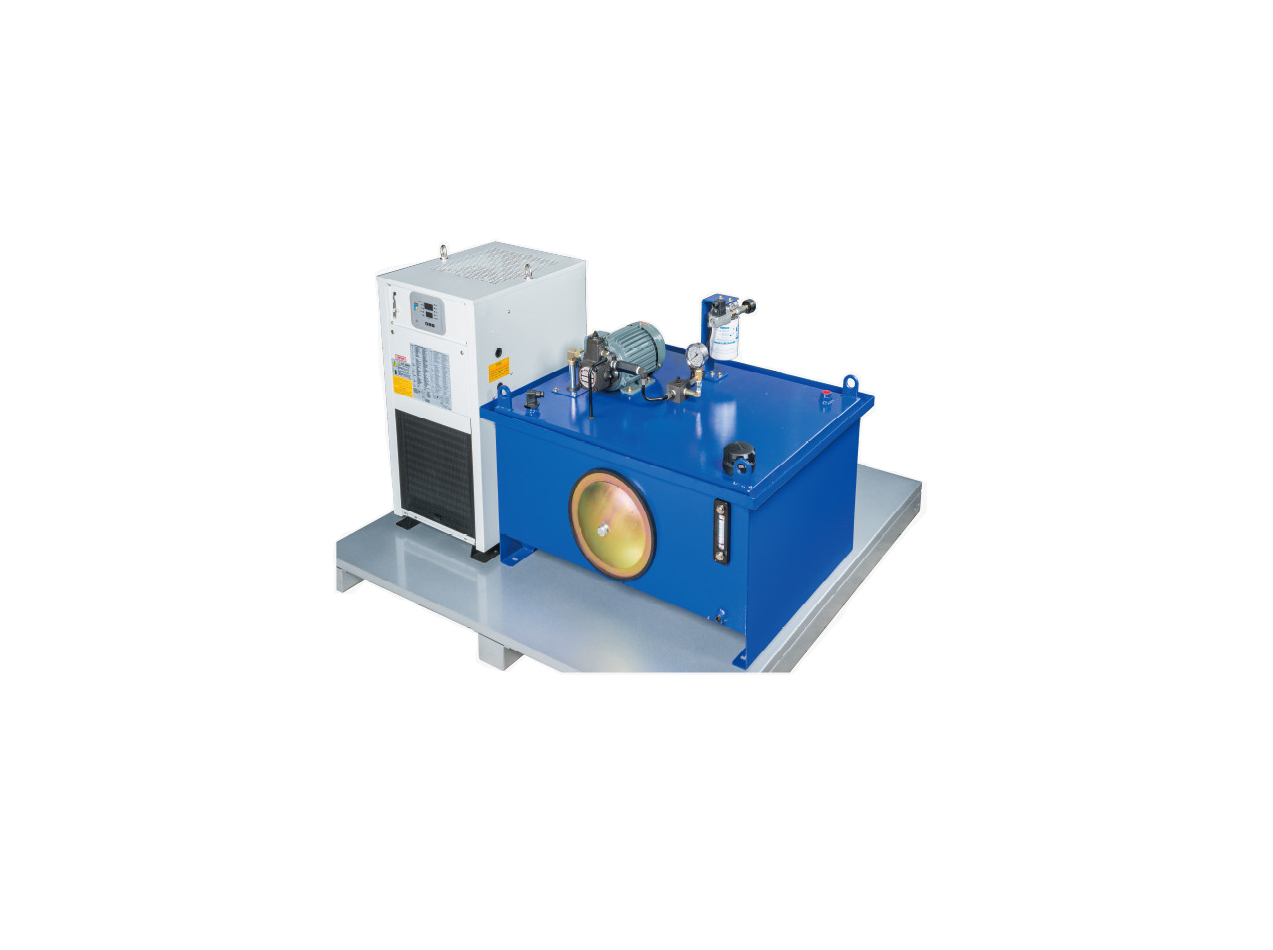

Spindle Oil Cooler

The spindle oil cooler allows the spindle to run at a constant temperature, reducing thermal deformation of the spindle to a minimum.
