HORIZONTAL CNC LATHE

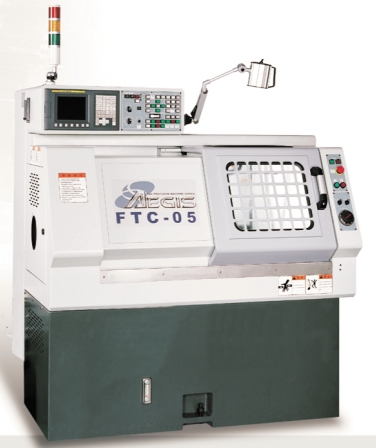

AEGIS FTC-05
FTC-05
No. 1 Choice in High Precision Parts Turning Lathe!
Suitable for special purpose machining and small lot flexible machining.
Compact construction with small floorspace of 2x2 meters only for saving space. Easy to install.
Available to equip with robot for fully automatic operation.
Suitable for operating together with whole plant equipment or a production line.
Chip conveyor can be mounted at right or back side of the machine to suit the working space as desired.
Ideal for precision parts machining in various industries such as optical deviceds, measuring instruments, automotives and motorcycles, aircrafts, aerospace, electronics and parts.
Specification
MODEL | UNIT | FTC-05 |
Swing Over Bed | mm | 180 |
Swing Over Top Slide | mm | 120 |
Distance Between Center | mm | N/A |
MAX. Turnable O.D. | mm | 91 |
MAX.Turnable Length | mm | 91 |
Angle of the Machine bed | Degree | 0 |
AC Spindle Motor | AC 3KW/5HP | |
Max. Spindle Speed | RPM | 6000 /8000(OPT) |
Spindle nose | ISO | A2-4 |
Spindle Hole | mm | 35 |
Through Bar Capacity | mm | 25.4 |
Spindle Front Bearing I.D. | mm | 55 |
Chuck Size | inch | 5C (5"chuck) |
Tailstock Taper | MT | N/A |
Tailstock Quill Diameter | mm | N/A |
Tailstock Quill Travel | mm | N/A |
Tailstock Seat Travel | mm | N/A |
X-Axis Travel | mm | 200 |
Z-Axis Travel | mm | 180 |
X-Axis Rapid Speed | m/min | 12 |
Z-Axis Rapid Speed | m/min | 12 |
Min. Input Increment | mm | 0.001 |
Square Shank Tools Size | mm | 16 |
Max. Boring Tool Diameter | mm | 20 |
Numbers of Tool Position | Gang Type | |
Change Tool Times | sec | N/A |
Coolant Pump Motor | HP | 1/4 |
Machine Dimension | mm³ | 1450*1350*1550 |
Floor Space | mm² | 2000*2000 |
Packing Dimension | mm³ | 2080*1460*1960 |
Machine Net Weight | kg | 1500 |
Machine Gross Weight | kg | 1980 |
- Work Lamp
- Leveling Bolts and Pads
- Heat Exchanger for Electrical Cabinet
- Coolant System
- Tool Holder 4 pcs
- Tool 4 pcs
- Collet Chuck (5C) 1pc
- Collet (5C) 1 pc
- Tool Box with Tool Kits
- Automatic Lubrication system and Ball Screw Lubrication System
- Gang-type Tooling System (5" hydraulic rotary cylinder and hydraulic power unit)
- Tool Holder
- Auxiliary tool slide
- Milling attachment
- I.D. Tool
- I.D. Double Tool
- O.D. Tool
- 8 tools Turret
- 5c Collect Chuck
- I.D. Tool Sleeve
- 5" Hollow Hydraulic Chuck
- 5" Hydraulic Chuck
- Hydraulic Power Tooling System
- Bar Feeder
- Parts Catched (Front side)
- Spindel Air Blast Device (Front side)
- High Speed Air Power Tooling System
- Chip Conveyor with Bucket
- 4" PML air Chuck (in case pneumatic system is ready)
