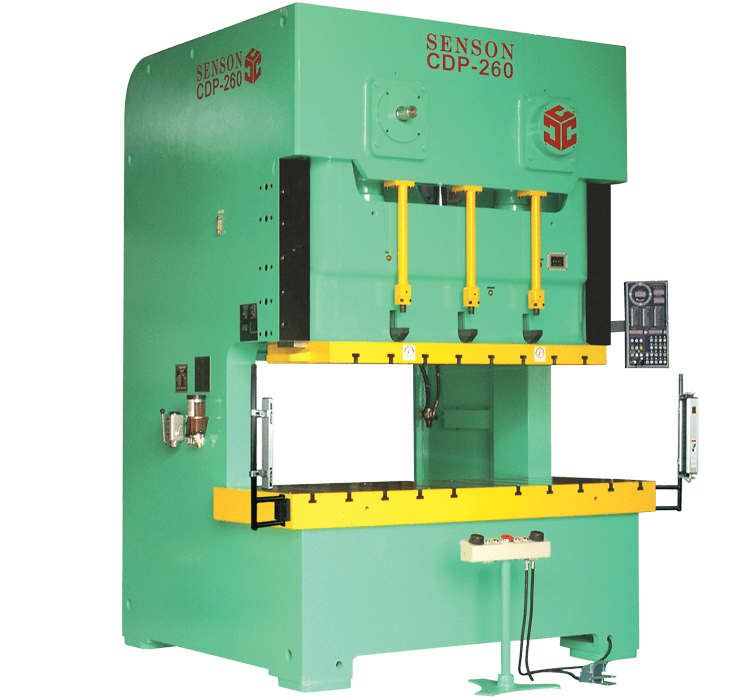

C-Frame Double Crank Precision Power Press
C-Frame Double Crank Precision Power Press
CDP Series
C-Frame Double Crank Precision Power Press
CDP Series
110 ~ 260 tons
Extensive Scope of Application: Broad slide bottom and bolster are suitable for punching operations with progressive dies for various automotive, motorcycle and machine components, and appliance and computer parts.
Specification

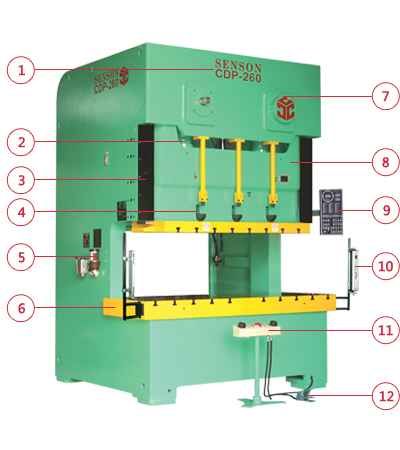

- Counter balancer (Equilibrating cylinders)
- Connecting rod
- Six-face wide-and-long guide rail
- Knock out device
- Manual electric grease pump
- Bolster
- Anti-repeat device(Overrun detector)
- Slide
- Crank angle LED display
- Safety light curtain
- Portable push button operation stand
- Foot switch
Standard Accessories
Operation modes ("off", "inching"/"single"/"safe single"/"continuous") | Wet type clutch brake | Counter balancer (Equilibrating cylinders) |
Motorized slide adjuster | Die height indicator | Encoder |
360°Crank angle LED display | S.P.M. LED display | Product lot counter (Preset, 6-digit)/td> |
Total counter (Preset, 6-digit) | Brake angle monitor device | Cutting outlet: 2-set |
Spare electronic rotary cams: 4-set | Mileage maintenance reminder | Pre-date/month/year production performance recorder |
Inverter (or Variable speed V.S. motor -for overseas market) | "FOR." & "REV." modes for main motor | Knock out device |
Electric grease pump | Air ejector | Air source socket |
Power socket 220V, 5A (for overseas market) | Power take-off feed shaft (feed direction:left→right ) | Portable push button operation stand |
Rubber mount (shock absorber) | Maintenance tools with box | Operation Manual |
Safety devices for protecting workers or tools | |||
---|---|---|---|
Hydraulic overload protector | Mis-feed detective circuit: 3-set (A,B) | Anti-repeat device (overrun detector) | Safety light curtain |
Optional Accessories
Pneumatic die cushion | Hydraulic die cushion | Foot switch |
Air feeder | Roll feeder | Auto material straighter |
Quick die change system: die lifter, die arm, etc. |

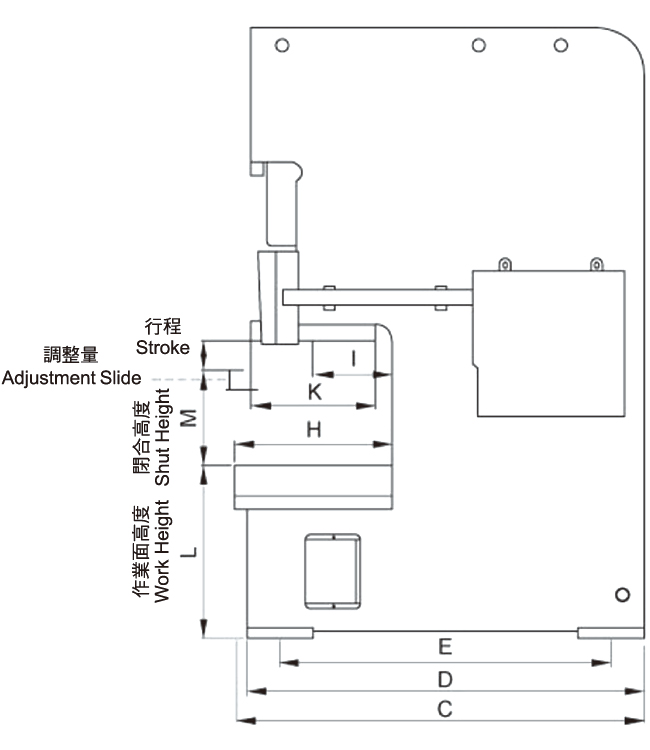

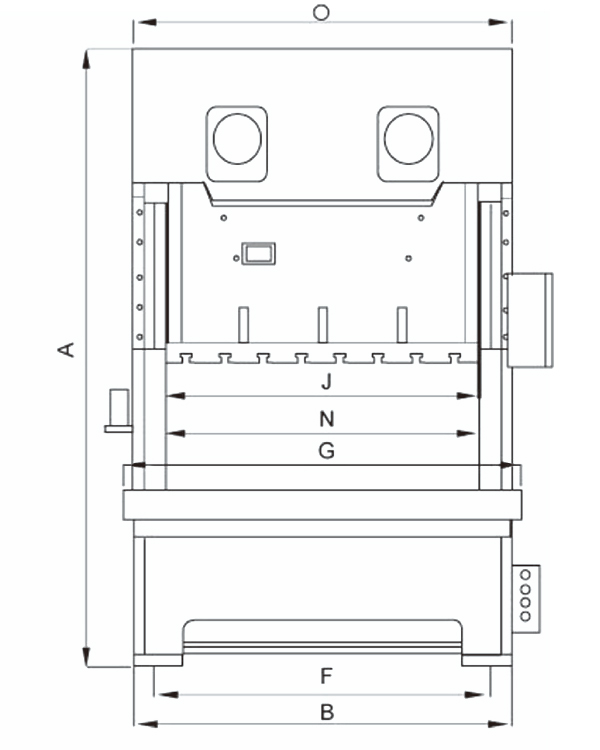

Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CDP-110 | 2930 | 2160 | 1825 | 1805 | 1545 | 1960 | 1900 | 680 | 345 | 1460 | 560 | 880 | 400 | 1530 | 1830 |
CDP-160 | 3180 | 2230 | 1980 | 1930 | 1610 | 2030 | 2040 | 760 | 390 | 1600 | 600 | 900 | 450 | 1620 | 1940 |
CDP-200 | 3520 | 2250 | 2230 | 2180 | 1820 | 1950 | 2250 | 815 | 435 | 1860 | 660 | 970 | 500 | 1890 | 2250 |
CDP-260 | 3920 | 2900 | 2520 | 2480 | 2120 | 2660 | 2720 | 920 | 465 | 2120 | 820 | 1060 | 550 | 2200 | 2580 |
Model | A | B | C | D | E | F | G | H | I | J | K | L |
---|---|---|---|---|---|---|---|---|---|---|---|---|
CDP-110 | 1460 | 560 | 180 | 375 | Ø50.8 | 1900 | 680 | 150 | 200 | 250 | 620 | 275 |
CDP-160 | 1600 | 600 | 200 | 400 | Ø50.8 | 2040 | 760 | 200 | 200 | 300 | 640 | 300 |
CDP-200 | 1860 | 660 | 220 | 450 | Ø50.8 | 2420 | 860 | 215 | 220 | 300 | 860 | 300 |
CDP-260 | 2120 | 820 | 260 | 450 | Ø50.8 | 2720 | 920 | 215 | 220 | 300 | 860 | 350 |
Model Number | CDP-110 | CDP-160 | CDP-200 | CDP-260 |
---|---|---|---|---|
Capacity tonf |
110 | 160 | 200 | 260 |
Slide Stroke Length mm |
180 | 200 | 220 | 240 |
Strokes Per Minute (Variable Speed) S.P.M. |
30-65 | 30-50 | 25-47 | 20-41 |
Tonnage Rating Point mm |
5 | 6 | 6 | 7 |
Shut Height (S.D.A.U) mm |
400 | 450 | 500 | 550 |
Slide Adjustment mm |
100 | 110 | 120 | 130 |
Slide Bottom Area mm |
1460 x 560 | 1600 x 600 | 1860 x 660 | 2120 x 820 |
Bolster Area mm |
1900 x 680 | 2040 x 760 | 2420 x 860 | 2720 x 920 |
Bolster Thickness mm |
150 | 160 | 170 | 180 |
Work Heigh mm |
880 | 900 | 970 | 1030 |
Frame Inside Width mm |
1530 | 1620 | 1890 | 2190 |
Overall Size mm |
2160 x 1825 | 2230 x 1980 | 2250 x 2230 | 2900 x 2520 |
Overall Height mm |
2930 | 3180 | 3520 | 3860 |
Main Motor(Variable Speed) KW x P |
11 x 4 | 15 x 4 | 19 x 4 | 22 x 4 |
Slide Adjust Motor KW x P |
0.75 x 4 | 0.75 x 4 | 1.5 x 4 | 2.2 x 4 |
Air Pressure kgf/cm2 |
5 | 5 | 5 | 5 |
PS. Based on the main factory production, rights of modification reserved.
