Servo Motor Lathe Turret
Servo Turret

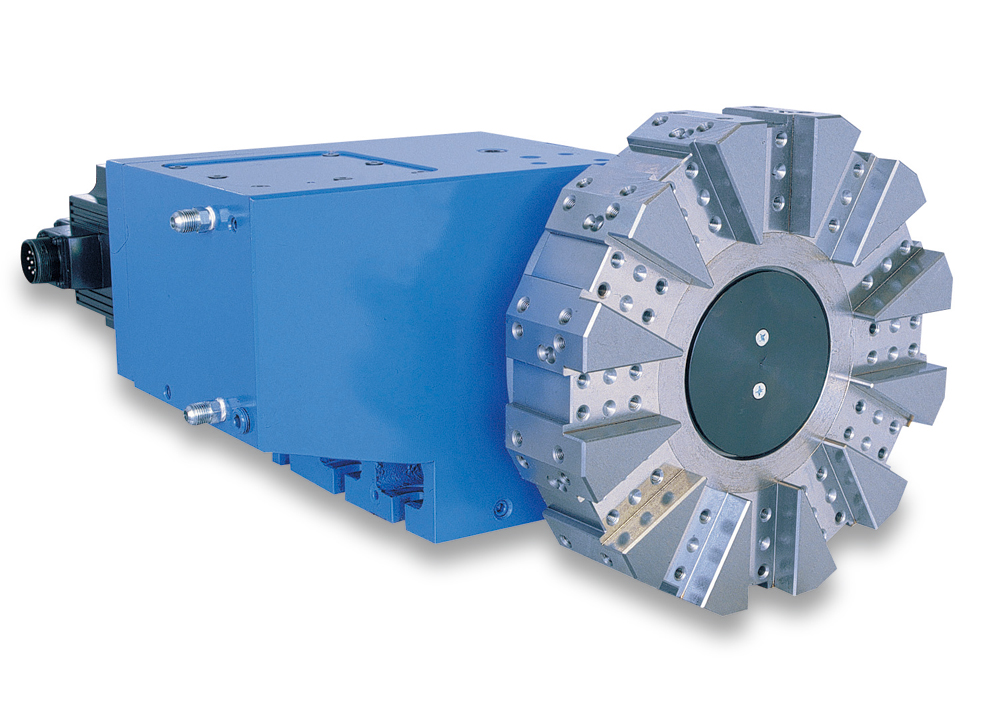

LS-240SV

Servo Turret Features:
The turret rotation and indexing is driven by a special servo motor.
High torque output, low noise.
Fast tool change without tool change error.
The turret can be controlled by various controllers.

Specification

Specifications And Accessories

MODEL   LS-240SV
 Center height mm 120
 Number of tools N 8T / 10T / 12T
 Rotating time (tool-to-tool) sec 0.37 / 0.35 / 0.34
 Rotating time (including locking) sec 0.47 / 0.45 / 0.44
 Total indexing time for 180° sec 0.7
 Total indexing time for 180° (including locking) sec 0.8
Gear speed ratio   9:1
 Curvic couplings type   24180
 Servo motor   HG-SR81JK
 Hydraulic working pressure Kgf/cm² (35-40)40
 Flow rate L/min. 40
 Thrusting force of hyd. cyl. Kgf 4,396
 Accuracy of repeatability mm 0.003
 N.W. (without tool disc) Kg 122
