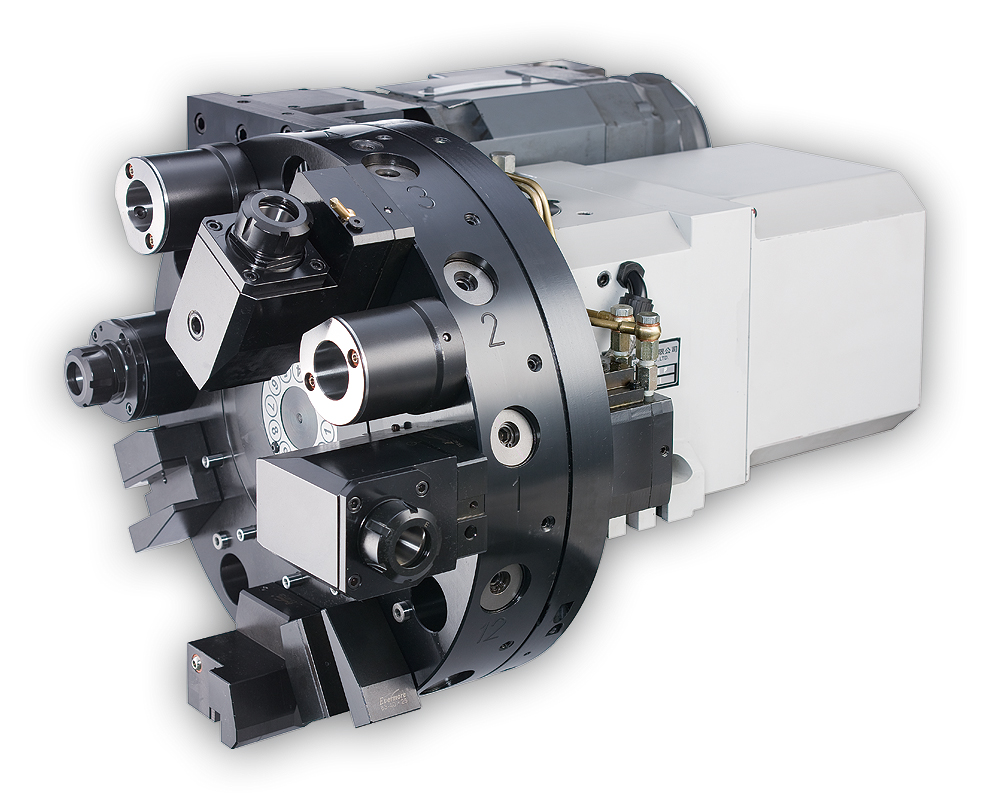

Powered Turret
Powered Turret
LS-200SP/LS-250SP

Powered Turret Features:
Turret rotation and indexing is driven by a special servo motor.
Tool holders are driven by a spindle motor that features high torque output and no noise.
Fast tool change without change error.
Powered tool holders meet DIN69880 and DIN5480 standards.
Repeatability accuracy reaches 0.003 mm.
Three-piece type curvic clutch ensures high positioning accuracy.
LS-200SP
VDI Ø40, 12 tools, tools center Dia. Ø340 and Ø370 mm, Turret center height 100 mm


SERVO TURRET:
Mitsubishi Servomotor: HG-SR81JK ; Gear ratio 1/24
Hydraulic power source: P = 40kg / cm²

Hydraulic cylinder clamping force 3,130 kg



POWERED TOOL HOLDER:
Tool shank specifications: DIN 5480 W20 x 0.8 and zero detent system.
Max. tool speed: 5,000 rpm.
Spindle motor specification:
Mitsubishi SJ-PF5.5-01 3.7 / 5.5 KW
Fanuc α3 3.7 / 5.5 KW
Tool and motor transmission gear ratio 1 : 1



LS-250SP
VDI Ø50, 12 tools, tools center Dia. Ø400, Turret center height 125 mm


SERVO TURRET:
Mitsubishi Servomotor: HG-SR81JK ; Gear ratio 1/36
Hydraulic power source: P = 40kg / cm²

Hydraulic cylinder clamping force 6,540 kg



POWERED TOOL HOLDER:
Tool shank specifications: DIN 5480 W24 x 1.25 and zero detent system.
Max. tool speed: 4,000 rpm.
Spindle motor specification:
Mitsubishi SJ-PF7.5-01 5.5 / 7.5 KW
Fanuc α6 5.5 / 7.5 KW
Tool and motor transmission gear ratio 1 : 1

Specification

Specifications And Accessories

MODEL   LS-200SP LS-250SP
Center height mm 100 125
Number of tools N 8T / 12T 8T / 12T
Rotating time (tool-to-tool) sec 0.45 / 0.42 0.65 / 0.5
Rotating time (including locking) sec 0.55 / 0.52 0.82 / 0.67
Total indexing time for 180° sec 1.2 1.6
Total indexing time for 180°
(including locking)
sec 1.3 1.77
Gear speed ratio   24:1 36:1
Curvic couplings type   3 Piece type 3 Piece type
Turret servo motor   HG-SR81JK
MR-J4-100A-RJ
HG-SR81JK
MR-J4-100A-RJ
Hydraulic working pressure Kgf/cm² (35-40)40 (35-40)40
Flow rate L/min. 30 40
Thrusting force of hyd. cyl. Kgf 3,130 6,540
Accuracy of repeatability mm 0.003 0.003
N.W. Kg 240 338
Tool servo motor   MITSUBISHI - SJ-PF5.5-01
FANUC - α3
MITSUBISHI - SJ-PF7.5-01
FANUC - α6
