INLINE HELICAL GEAR REDUCERS

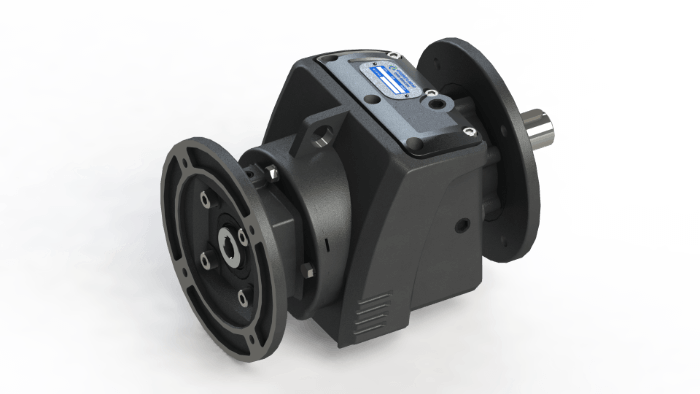

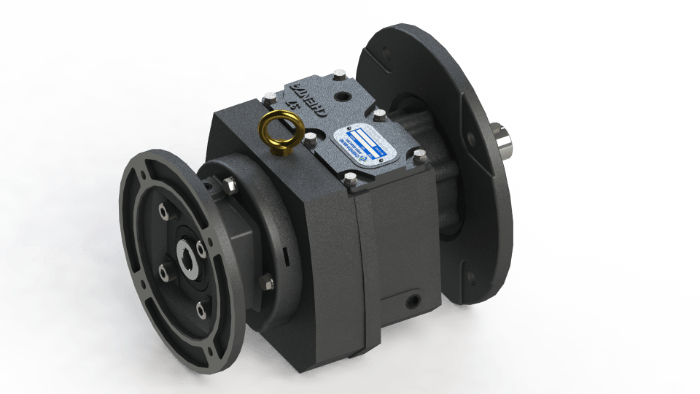

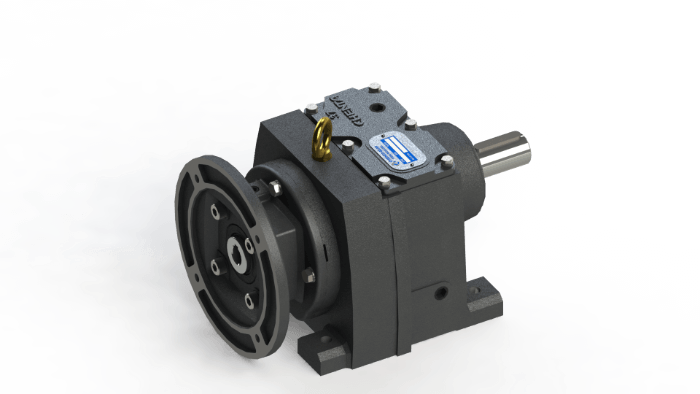

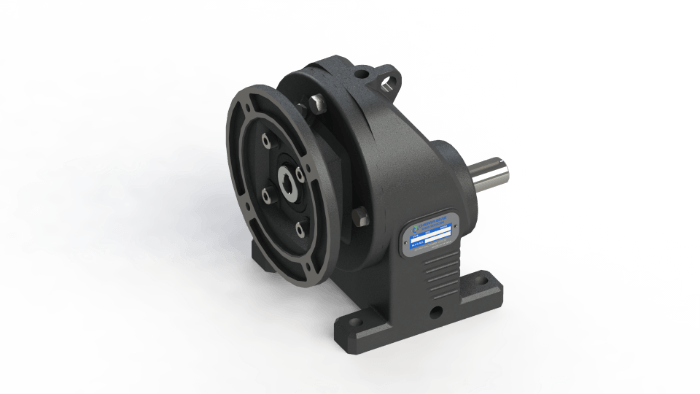

In-line Helical Gear Reducer-R series(Input Flange)
LHF

FEATURES
1. DESIGN CONCEPTS: the combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness.
2. ENERGY EFFICIENCY: leveraging the advantage of high accuracy of helical gears, the reducers perform at 90% efficiency with higher stability and lower noise level.
3. RATIOS COVERAGE: 1~3 stages of reduction provides a wide range of ratio accommodation from 1/1.3~1/27788.
4. LOADING CAPACITY: available with power ranges from 1/4hp up to 150hp depending on different requirements and applications.
5. TENSILE STRENGTH: pinion and gears are made with 20CrMo alloy 1. steel plus carburizing heat treatment to enhance performance; the input pinion is equipped with double bearing support to provide stability at high speed.
6. COMPLETE SERIES: vertical and horizontal mounting along various input mechanism ensure the products meet a wide range of applications.
7. INSTALLATION FLEXIBILITY: all models are designed for a choice of mounting position (M1~M6) specified by customers.
8. APPEARANCE AESTHETICS: the products are designed with modern exterior while maintaining high rigidity.

Specification

Size Output-Shaft [mm] M2 [Nm] Max I - Min I - Max
R17 20 85 4.05 79.85
R37 25 218 4.2 119.93
R47 30 332 4.05 120.20
R67 35 495 3.96 123.20
R77 40 634 4.03 116.13
R87 50 1803 4.06 117.17
R97 60 2903 4.00 115.43
R107 70 5468 4.00 115.50
R137 90 7997 4.04 117.25
R147 110 11368 4.16 117.29
R167 120 17346 3.93 178.17
