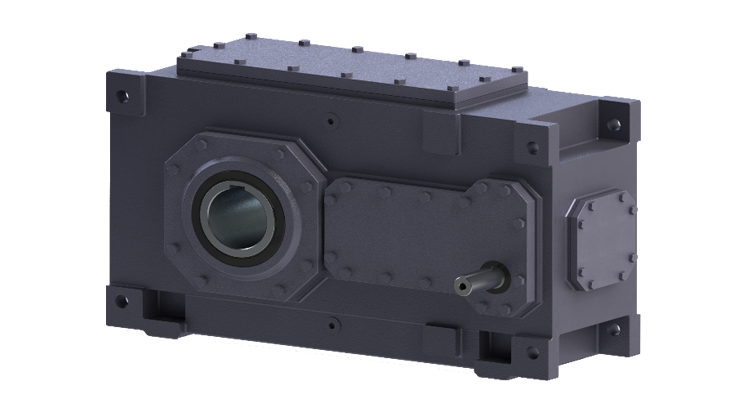

Industrial Gearbox-H／B series(Helical gear units)

Industrial Gearbox

Industrial Gearbox-H／B series(Helical gear units)

H/B

FEATURES
1. DESIGN
CHENTA gear units are a modularized design with following advantages:
‧ More sizes are available with a reduced variety of parts.
‧ Higher operational reliability combined with a increased capacity of power.
2. MOUNTING
CHENTA gear units can be supplied for either horizontal or vertical installation; other arrangements are also possible on request.
3. NOISE BEHAVIOR
CHENTA gear units are designed with an improvement of noise-emission:
‧ High precision gears with grinding.
‧ Designing a robust configuration of housing for a better noise-absorbing.
4. THERCAL CONDUCTION
CHENTA gear units not only have a high efficiency but also a favorable thermal conduction:
‧ An enlarged housing surface area.
‧ Applied with a larger fan incorporating the new style of air conduction fan cowl.

Specification

H/B series-H1
Size	Output-Shaft [mm]	M2 [Nm] Max	I - Min	I - Max
3	60	3.3	1.25	5.60
5	85	9.6	1.25	5.60
7	105	17.8	1.25	5.60
9	125	28.7	1.25	5.60
11	150	50.6	1.60	5.60
13	180	77	1.60	5.60
15	220	130	2.00	5.60
17	240	173	2.80	5.60
19	270	245	4.00	5.60

H/B series-H2
Size	Output-Shaft [mm]	M2 [Nm] Max	I - Min	I - Max
4	80	6.7	6.30	22.40
5	100	11.2	6.30	22.40
6	110	14.4	8.00	28.00
7	120	20.3	6.30	22.40
8	130	25.6	8.00	28.00
9	140	33.7	6.30	22.40
10	160	42.2	8.00	28.00
11	170	59.3	6.30	22.40
12	180	73.8	8.00	28.00
13	200	86	6.30	20.00
14	210	107	8.00	25.00
15	230	143	6.30	20.00
16	240	160	7.10	22.40
17	250	195	6.30	20.00
18	270	230	7.10	22.40
19	290	292	6.30	22.00
20	300	335	7.10	22.40
21	320	410	7.10	20.00
22	340	458	8.00	22.40

H/B series-H3
Size	Output-shaft [mm]	M2 [Nm] Max	I - Min	I - Max
5	100	11.6	25.00	90.00
6	110	15.5	31.50	112.00
7	120	21.7	25.00	90.00
8	130	27.2	31.50	112.00
9	140	35.7	25.00	90.00
10	160	43.8	31.50	112.00
11	170	63.5	25.00	90.00
12	180	77.2	31.50	112.00
13	200	88	22.40	90.00
13	200	88	22.40	90.00
14	210	109	28.00	112.00
15	230	153	22.40	90.00
16	240	173	25.00	100.00
17	250	200	22.40	90.00
18	270	240	25.00	100.00
19	290	300	22.40	90.00
20	300	345	25.00	100.00
21	320	420	22.40	90.00
22	340	470	25.00	100.00

H/B series-H4
Size	Output-Shaft [mm]	M2 [Nm] Max	I - Min	I - Max
7	120	21.7	100.00	355.00
8	130	27.2	125.00	450.00
9	140	35.7	100.00	355.00
10	160	44.2	125.00	450.00
11	170	61.6	100.00	355.00
12	180	78	125.00	450.00
13	200	90.7	100.00	355.00
14	210	113	125.00	450.00
15	230	153	100.00	355.00
16	240	173	112.00	400.00
17	250	200	100.00	355.00
18	270	240	112.00	400.00
19	290	300	100.00	355.00
20	300	345	112.00	400.00
21	320	420	100.00	355.00
22	340	470	112.00	400.00

H/B series-B2
Size	Output-Shaft [mm]	M2 [Nm] Max	I - Min	I - Max
4	80	6.2	5.00	11.20
5	100	9.4	5.00	11.20
6	110	12	6.30	14.00
7	120	19	5.00	11.20
8	130	23.8	6.30	14.00
9	140	29.9	5.00	11.20
10	160	38	6.30	14.00
11	170	54	5.00	11.20
12	180	66.3	6.30	14.00
13	200	81.1	5.00	11.20
14	210	101	6.30	14.00
15	230	132	5.00	11.20
16	240	148	5.60	12.50
17	250	195	5.60	11.20
18	270	230	7.10	12.50

H/B series-B3
Size	Output-Shaft [mm]	M2 [Nm] Max	I - Min	I - Max
4	80	6.7	12.50	71.00
5	100	11.6	12.50	71.00
6	110	15.5	16.00	90.00
7	120	21.7	12.50	71.00
8	130	27.2	16.00	90.00
9	140	35.7	12.50	71.00
10	160	43.8	16.00	90.00
11	170	63.5	12.50	71.00
12	180	77.2	16.00	90.00
13	200	90.7	12.50	71.00
14	210	113	16.00	90.00
15	230	153	12.50	71.00
16	240	173	14.00	80.00
17	250	200	12.50	71.00
18	270	240	14.00	80.00
19	290	300	12.50	71.00
20	300	345	14.00	80.00
21	320	420	12.50	71.00
22	340	470	14.00	80.00

H/B series-B4
Size	Output-Shaft [mm]	M2 [Nm] Max	I - Min	I - Max
5	100	11.6	80.00	315.00
6	110	15.5	100.00	400.00
7	120	21.7	80.00	315.00
8	130	27.2	100.00	400.00
9	140	35.7	80.00	315.00
10	160	44.2	100.00	400.00
11	170	61.6	80.00	315.00
12	180	78	100.00	400.00
13	200	90.7	80.00	315.00
14	210	113	100.00	400.00
15	230	153	80.00	315.00
16	240	173	90.00	355.00
17	250	200	80.00	315.00
18	270	240	90.00	355.00
19	290	300	80.00	315.00
20	300	345	90.00	355.00
21	320	420	80.00	315.00
22	340	470	90.00	355.00
