ES Series Wall Mount Enclosure with Gland Plate Single-Door, IP66

Wall Mount

ES Series Wall Mount Enclosure with Gland Plate Single-Door, IP66

ES Series

Construction
Gland plate with sealing gasket carbon
14 gauge or 16 gauge steel
12 gauge galvanized mounting panel
High quality automatic seamless foam-in-place gasket
Seams continuously welded
Door opening 120°
Quarter-turn lock
Three-point lock on larger enclosures
Heavy-duty hinge
Grounding studs on body and door

Finish
RAL 7032 power coating, RAL7035 and other color available
Mounting plate in galvanized finish

Industry Standards

ES Series, singal-door
IP66, IEC 60529
RoHS Compliant
CE

Custom Enclosures
Nonstone offers high quality custom enclosures and modification services for your unique requirements. Custom orders are very competitive priced and can save your time and money.
For information, please contact your NonStone representative.

Other finish color and textures
Cutouts and special holes in body and doors.
Custom doors
Custom body
Special or custom accessories

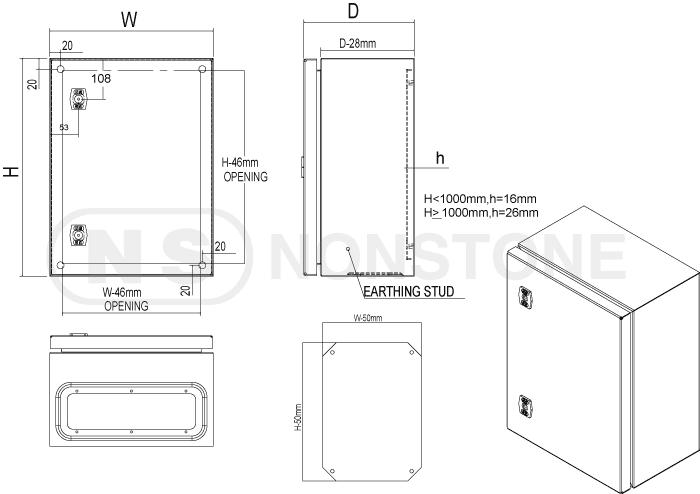

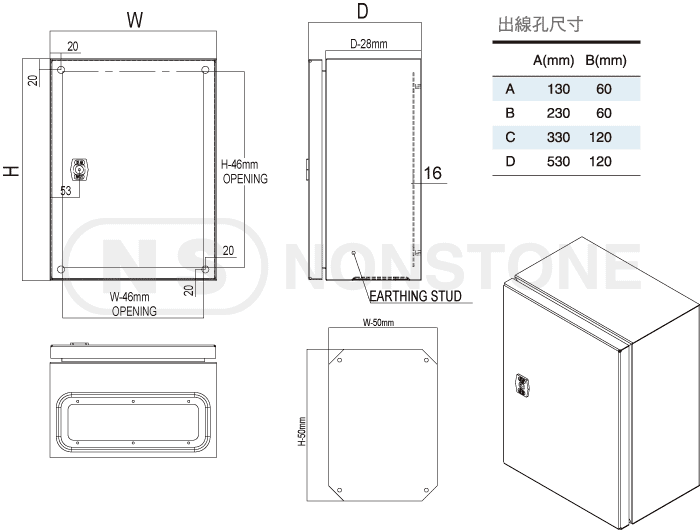

Specification

No	Catalog Number	H(mm)	W(mm)	D(mm)	CAD	PDF
1	ES202015	200	200	150
2	ES302015	300	200	150
3	ES302515	300	250	150
4	ES302520	300	250	200
5	ES303015	300	300	150
6	ES303020	300	300	200
7	ES304015	300	400	150
8	ES404020	400	400	200
9	ES403015	400	300	150
10	ES403020	400	300	200
11	ES404020	400	400	200
12	ES406020	400	600	200
13	ES406025	400	600	250
14	ES406030	400	600	300
15	ES503015	500	300	150
16	ES503020	500	300	200
17	ES504015	500	400	150
18	ES504020	500	400	200
19	ES504025	500	400	250
20	ES505020	500	500	200
21	ES505025	500	500	250
22	ES507020	500	700	200
23	ES507025	500	700	250
24	ES604020	600	400	200
25	ES604025	600	400	250
26	ES604030	600	400	300
27	ES605020	600	500	200
28	ES605025	600	500	250
29	ES606020	600	600	200
30	ES606025	600	600	250
31	ES606030	600	600	300
32	ES705020	700	500	200
33	ES705025	700	500	250
34	ES806020	800	600	200
35	ES806025	800	600	250
36	ES806030	800	600	300
37	ES808025	800	800	250
38	ES808030	800	800	300
39	ES1006025	1000	600	250
40	ES1006030	1000	600	300
41	ES1006040	1000	600	400
42	ES1008025	1000	800	250
43	ES1008030	1000	800	300
44	ES1206030	1200	600	300
45	ES1206040	1200	600	400
46	ES1208030	1200	800	300
