Products

Wall Mount
FT Series Wall Mount Enclosures Single-Door, IP66, RAL 7035 Outdoor
FT Series

Construction
Door: 1.5mm - 1.8mm Mild Steel carbon
Body: 1.2mm Mild Steel
2mm galvanized steel mounting panel
High quality automatic seamless foam-in-place gasket
Seams continuously welded
All continuous welded seams are finished smooth
Door opening 120°
Quarter-turn lock

Heavy-duty hinge
Grounding studs on body and door

Finish
RAL 7035 outdoor power coating
Mounting plate in galvanized finish

Standards

FT Series, singal-door
IP66, IEC 60529
RoHS Compliant
REACH Compliant
CE

Custom Enclosures
Nonstone offers high quality custom enclosures and modification services for your unique requirements. Custom orders are very competitive priced and can save your time and money.
For information, please contact your NonStone representative.
Other finish color and textures
Cutouts and special holes in body and doors.
Custom doors
Custom body
Special or custom accessories

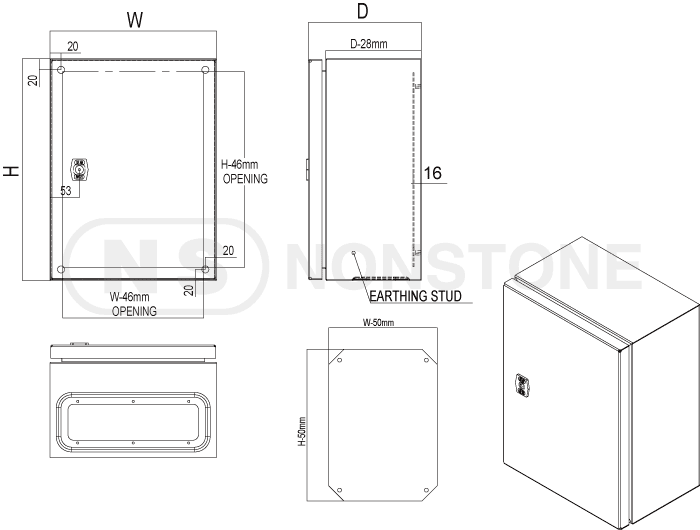

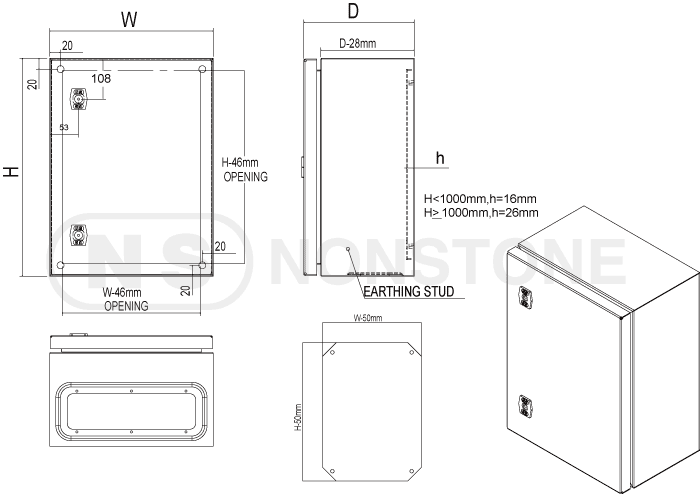

Specification

Catalog Number

H(mm)

W(mm)

D(mm)

CAD PDF
1

FT202015

200

200

150


2

FT302015

300

200

150


3

FT302515

300

250

150


4

FT302520

300

250

200


5

FT303015

300

300

150


6

FT303020

300

300

200


7

FT304015

300

400

150


8

FT304020

300

400

200


9

FT403015

400

300

150


10

FT403020

400

300

200


11

FT404020

400

400

200


12

FT406020

400

600

200


13

FT406025

400

600

250


14

FT406030

400

600

300


15

FT503015

500

300

150


16

FT503020

500

300

200


17

FT504015

500

400

150


18

FT504020

500

400

200


19

FT504025

500

400

250


20

FT505020

500

500

200


21

FT505025

500

500

250


22

FT507020

500

700

200


23

FT507025

500

700

250


24

FT604020

600

400

200


25

FT604025

600

400

250


26

FT604030

600

400

300


27

FT605020

600

500

200


28

FT605025

600

500

250


29

FT606020

600

600

200


30

FT606025

600

600

250


31

FT606030

600

600

300


32

FT705020

700

500

200


33

FT705025

700

500

250


34

FT806020

800

600

200


35

FT806025

800

600

250


36

FT806030

800

600

300


37

FT808025

800

800

250


38

FT808030

800

800

300


39

FT1006025

1000

600

250


40

FT1006030

1000

600

300


41

FT1006040

1000

600

400


42

FT1008025

1000

800

250


43

FT1008030

1000

800

300


44

FT1206030

1200

600

300


45

FT1206040

1200

600

400


46

FT1208030

1200

800

300
