Wall Mount
NSW Series IP65 Window Enclosures, IP66

Wall Mount

NSW Series IP65 Window Enclosures, IP66

NSW Series

Construction
5mm tempered glass carbon
14 gauge or 16 gauge steel
12 gauge galvanized mounting panel
High quality automatic seamless foam-in-place gasket
Seams continuously welded
Door opening 120°
Quarter-turn lock
Three-point lock on larger enclosures
Heavy-duty hinge
Grounding studs on body and door

Finish
RAL 7032 power coating, RAL 7035 and other color available
Mounting plate in galvanized finish

Industry Standards

NS Series, singal-door
IP66, IEC 60529
RoHS Compliant
CE

Custom Enclosures
Nonstone offers high quality custom enclosures and modification services for your unique requirements. Custom orders are very competitive priced and can save your time and money.
For information, please contact your NonStone representative.

Other finish color and textures
Cutouts and special holes in body and doors.
Custom doors
Custom body
Special or custom accessories

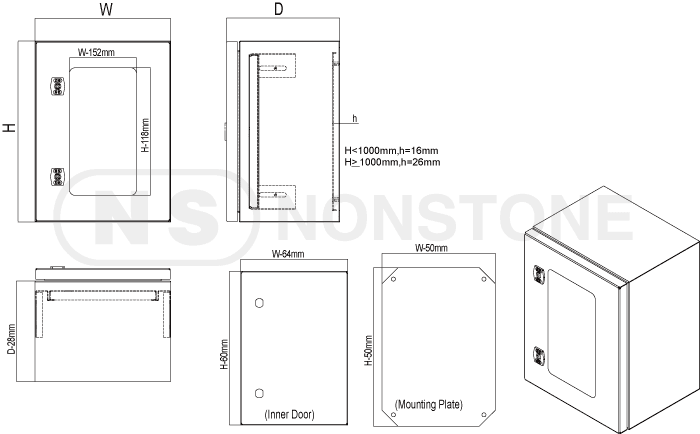

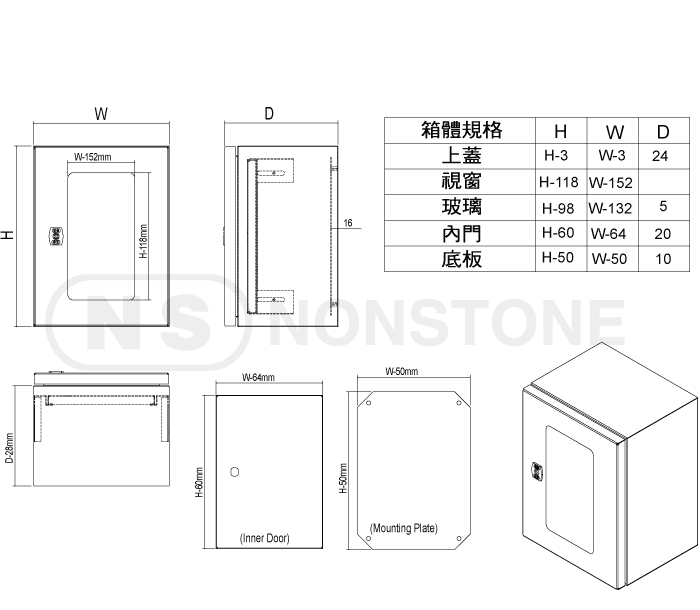

Specification

No	Catalog Number	H(mm)	W(mm)	D(mm)	CAD	PDF
1	NSW303020	300	300	200
2	NSW304015	300	400	150
3	NSW304020	300	400	200
4	NSW403015	400	300	150
5	NSW403020	400	300	200
6	NSW404020	400	400	200
7	NSW406020	400	600	200
8	NSW406025	400	600	250
9	NSW406030	400	600	300
10	NSW503015	500	300	150
11	NSW503020	500	300	200
12	NSW504015	500	400	150
13	NSW504020	500	400	200
14	NSW504025	500	400	250
15	NSW505020	500	500	200
16	NSW505025	500	500	250
17	NSW507020	500	700	200
18	NSW507025	500	700	250
19	NSW604020	600	400	200
20	NSW604025	600	400	250
21	NSW604030	600	400	300
22	NSW605020	600	500	200
23	NSW605025	600	500	250
24	NSW606020	600	600	200
25	NSW606025	600	600	250
26	NSW606030	600	600	300
27	NSW608025	600	800	250
28	NSW608030	600	800	300
29	NSW705020	700	500	200
30	NSW705025	700	500	250
31	NSW806020	800	600	200
32	NSW806025	800	600	250
33	NSW806030	800	600	300
34	NSW808025	800	800	250
35	NSW808030	800	800	300
36	NSW8010020	800	1000	200
37	NSW8010030	800	1000	300
38	NSW1006025	1000	600	250
39	NSW1006030	1000	600	300
40	NSW1006040	1000	600	400
41	NSW1008025	1000	800	250
42	NSW1008030	1000	800	300
43	NSW10010030	1000	1000	300
44	NSW1206030	1200	600	300
45	NSW1206040	1200	600	400
46	NSW1208030	1200	800	300
47	NSW12010025	1200	1000	250
48	NSW12010030	1200	1000	300
