AL Series Wall Mount Enclosures Single-Door

Wall Mount

AL Series Wall Mount Enclosures Single-Door

AL, ALDD Series

Construction
14 gauge or 16 gauge aluminum
12 gauge galvanized mounting panel
High quality automatic seamless foam-in-place gasket
Seams continuously welded
Door opening 120°
Quarter-turn lock
Three-point lock on larger enclosures
Heavy-duty hinge
Grounding studs on body and door

Finish
RAL 7032 power coating, RAL 7035 and other color available
Mounting plate in galvanized finish

Standards

AL Series, singal-door
IP66, IEC 60529
RoHS Compliant
CE

Custom Enclosures
Nonstone offers high quality custom enclosures and modification services for your unique requirements. Custom orders are very competitive priced and can save your time and money.
For information, please contact your NonStone representative.

Other finish color and textures
Cutouts and special holes in body and doors.
Custom doors
Custom body
Special or custom accessories

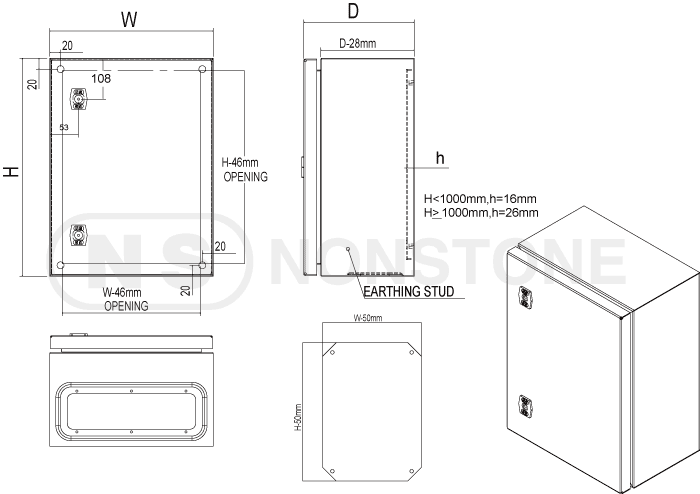

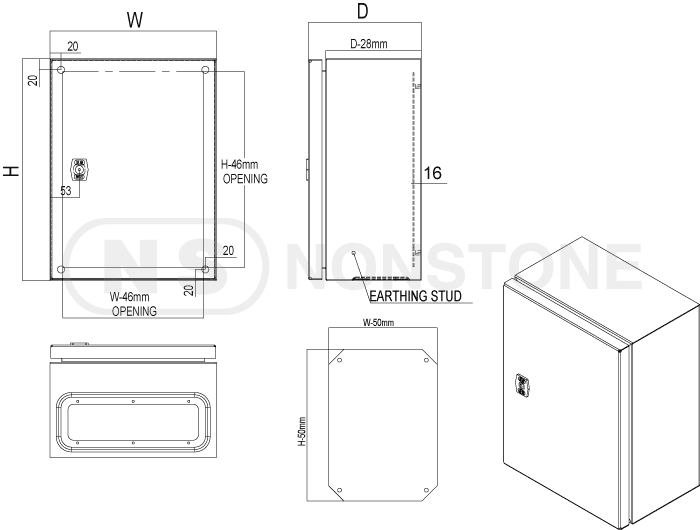

Specification

No	Catalog Number	H(mm)	W(mm)	D(mm)	CAD	PDF
1	AL202015	200	200	150
2	AL302015	300	200	150
3	AL302515	300	250	150
4	AL302520	300	250	200
5	AL303015	300	300	150
6	AL303020	300	300	200
7	AL304015	300	400	150
8	AL304020	300	400	200
9	AL403015	400	300	150
10	AL403020	400	300	200
11	AL404020	400	400	200
12	AL406020	400	600	200
13	AL406025	400	600	250
14	AL406030	400	600	300
15	AL503015	500	300	150
16	AL503020	500	300	200
17	AL504015	500	400	150
18	AL504020	500	400	200
19	AL504025	500	400	250
20	AL505020	500	500	200
21	AL505025	500	500	250
22	AL507020	500	700	200
23	AL507025	500	700	250
24	AL604020	600	400	200
25	AL604025	600	400	250
26	AL604030	600	400	300
27	AL605020	600	500	200
28	AL605025	600	500	250
29	AL606020	600	600	200
30	AL606025	600	600	250
31	AL608030	600	800	300
32	AL705020	700	500	200
33	AL705025	700	500	250
34	AL806020	800	600	200
35	AL806025	800	600	250
36	AL806030	800	600	300
37	AL808025	800	800	250
38	AL808030	800	800	300
39	AL1006025	1000	600	250
40	AL1006030	1000	600	300
41	AL1006040	1000	600	400
42	AL1008025	1000	800	250
43	AL1008030	1000	800	300
44	AL1206030	1200	600	300
45	AL1206040	1200	600	400
46	AL1208030	1200	800	300
