Straightening Machine C1-101

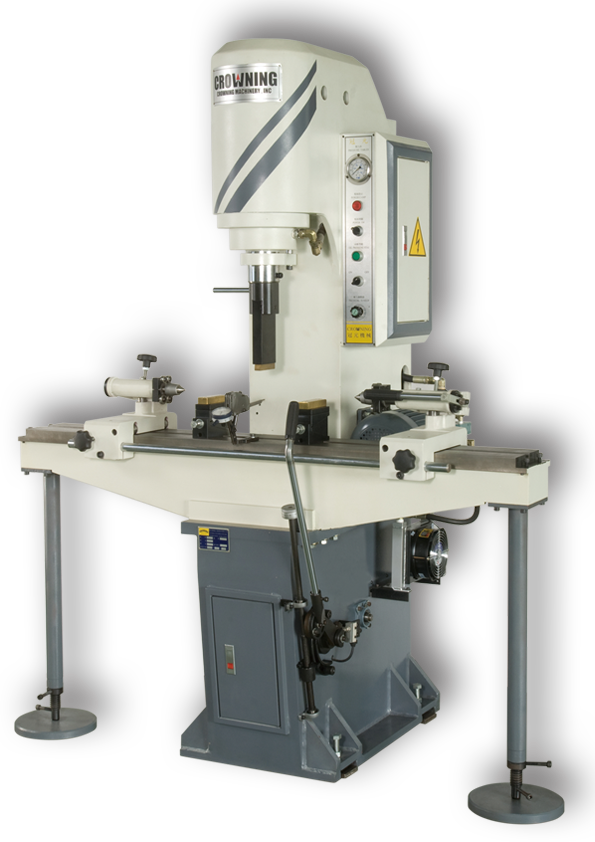

C1-101 Manual Straightening Machine
C1-101

C1-101 Ball Screw and Spindle Straightening Machine(Manual)(30T)
The manual oil servo driving machine supports to operate micro-adjustment for high-quality requirements.
The precise is allowed 0.01mm precision (depending on workpiece).

Applications: Ball screws, Rods and PipesApplication : Ballscrew, rod, spindle

For customers’need, C1-101 straightening machine can be changed from manual to semi-automatic or human-machine integration mode.


※The straightening precise is allowed 0.01mm precision (depending on workpiece).

Specification

Item
Can Working Material Can Working Diameter Can Working Length Motor output Output Tonnage
S45C Ø35mm(below) 80mm~450mm
(Length can be added to 3m)

3HP2.2KW~

5HP3.7KW

30T

Mold
Machine
Vehicle
