Straightening Machine C3-201

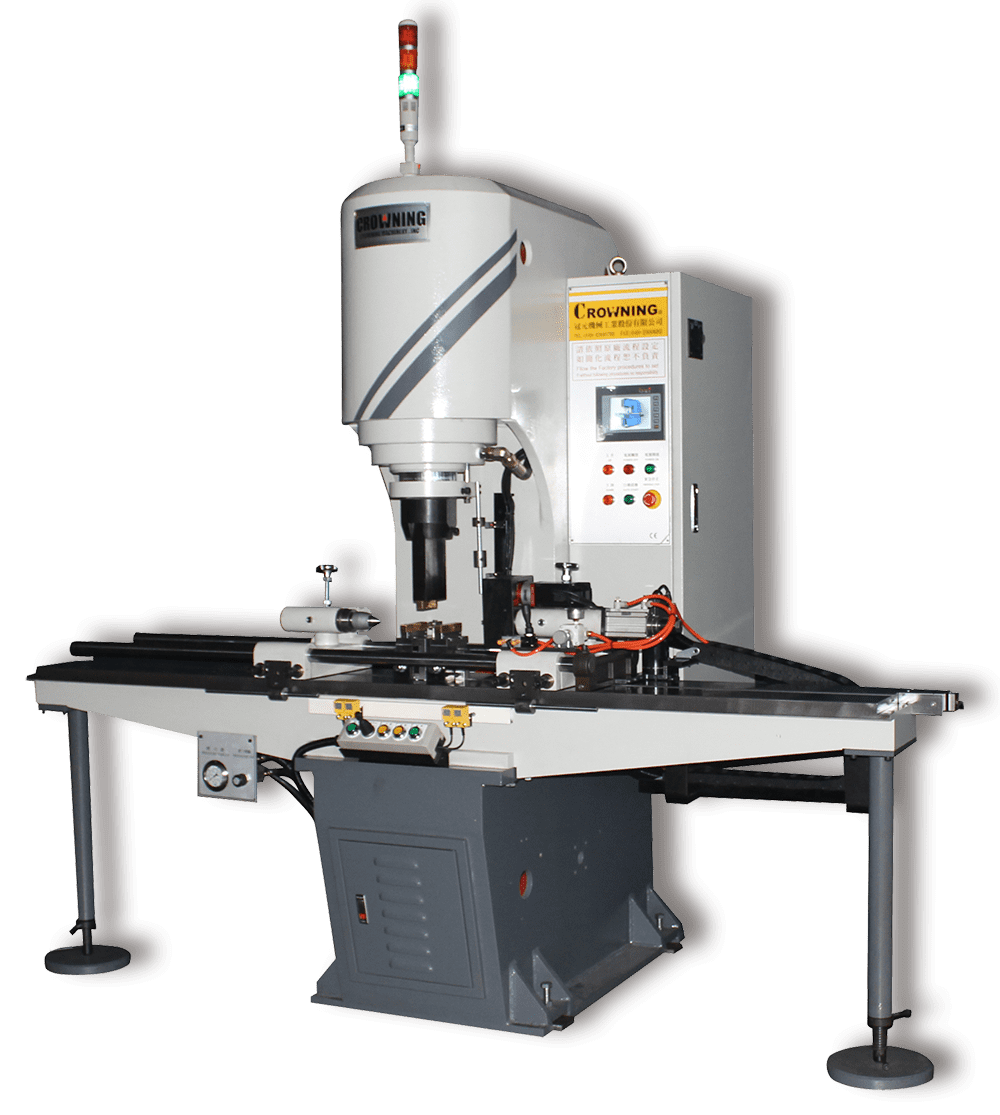

C3-201 Automatic Straightening Machine
C3-201
Application : Ballscrew, rod, spindle
An optional automatic material feeding module can be added to this machine (screws, rods and pipes only).
C3-201 automatic straightening machine for precision screw alignment, shaping mandrel driving straighten and a straight tube type and other operations, high accuracy, fully functional and easy to operate.
The straightening precise is allowed 0.03mm
(below) precision (depending on workpiece).
Specification
Item
Can Working Material | Can Working Diameter | Can Working Length | Motor output | 出力噸位 |
S45C | Ø50mm(below) | 1200mm | 7.5HP5.5KW | 60T |
