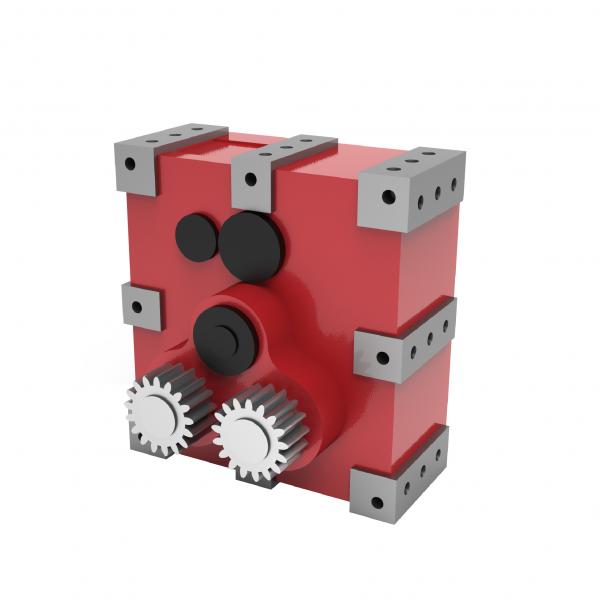

Backlash Free Reducer
Content of Backlash Free Reducer

Specification

Series Code Module Type No of Teeth Ratio Max Input Speed Max Output Torque Pitch Circle
SC-3AX SC-3AS 3 Straight 18T 27 3000 RPM 800 Nm 54.00
SC-3AH 3 Helical Left 19°31'42 18T 27 3000 RPM 800 Nm 57.30
SC-4FX SC-4FS 4 Straight 20T 27 3000 RPM 1000 Nm 80.00
SC-4FH 4 Helical Left 19°31'42 20T 27 3000 RPM 1000 Nm 84.88
SC-5FX SC-5FS 5 Straight 7T 27 3000 RPM 1200 Nm 85.00
SC-5FH 5 Helical Left 19°31'42 7T 27 3000 RPM 1200 Nm 90.18
SC-6AX SC-6AS 6 Straight 19T 47 3000 RPM 3000 Nm 114.00
SC-6AH 6 Helical Left 19°31'42 19T 47 3000 RPM 3000 Nm 120.95
SC-6FX SC-6FS 6 Straight 19T 47 3000 RPM 3000 Nm 114.00
SC-6FH 6 Helical Left 19°31'42 19T 47 3000 RPM 3000 Nm 120.95
SC-8AX SC-8AS 8 Straight 17T 47 3000 RPM 5000 Nm 136.00
SC-8AH 8 Helical Left 19°31'42 17T 47 3000 RPM 5000 Nm 144.30
SC-8FX SC-8FS 8 Straight 17T 47 3000 RPM 5000 Nm 136.00
SC-8FH 8 Helical Left 19°31'42 17T 47 3000 RPM 5000 Nm 144.30
