Products

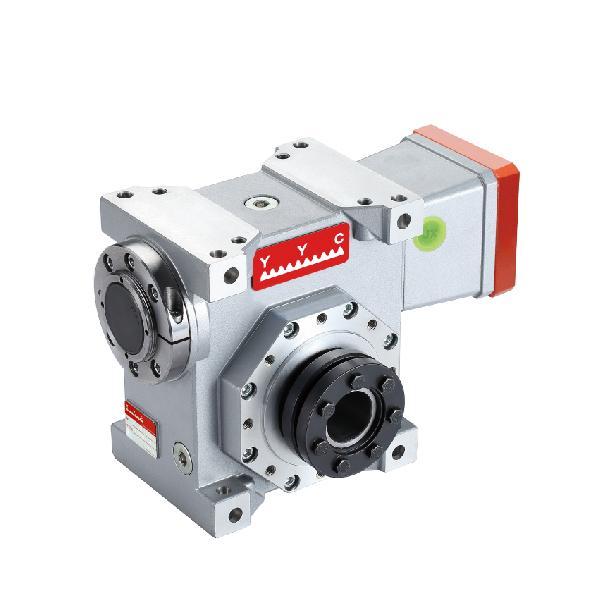

Servo Worm Gearbox
Servo Worm Gearbox-SWG Series
SWG Series

Specification

型號
Code
減速比
Ratio
背隙等級
Backlash Level
輸出軸
Output shaft
SWG045 14.5, 19.5, 30, 45, 60, 90 P0 2 armin
P1 3~5 armin
SDR, SDL: 迫緊環孔輸出
SDR, SDL: Hollow shaft for shrink disc

DSD:雙迫緊環孔輸出
DSD: Hollow shaft for double shrink disc

WKE: 中空軸(有鍵槽)孔輸出
WKE: Hollow shaft with keyway

SSR, SSL: 單輸出軸
SSR, SSL: Single solid shaft

DSS: 雙輸出軸
DSS: Double solid shaft
SWG050 14.5, 19.5, 30, 60 P0 2 armin
P1 3~5 armin
SWG055 14.5, 19.5, 30, 45, 60, 90 P0 2 armin
P1 3~5 armin
SWG063 14.5, 19.5, 30, 45, 60, 90 P0 2 armin
P1 3~5 armin
SWG075 14.5, 19.5, 30, 45, 60, 90 P0 1 armin
P1 2~4 armin
SWG090 14.5, 19.5, 30, 45, 60, 90 P0 1 armin
P1 2~4 armin
