Feature

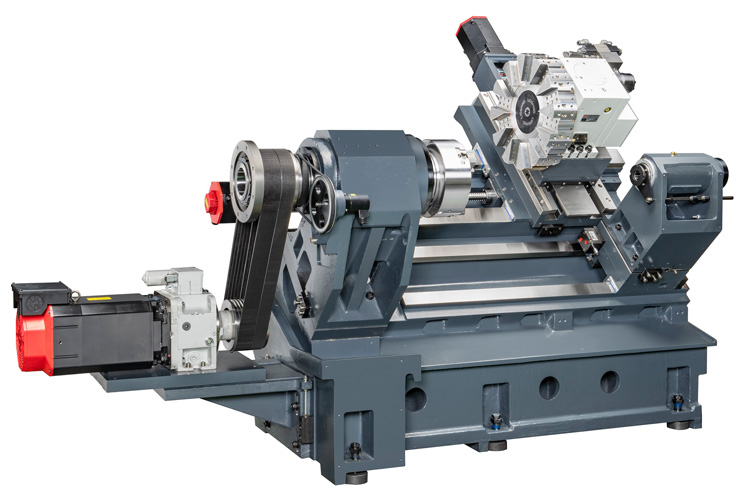

The major machine parts, such as the base, saddle, headstock,slide and tailstock are made of Meehanite cast iron and tempered to relieve stress there by ensuring lifetime accuracy.
High performance servomotors are directly coupled to the pre-ten sioned ball screws.
Linear guideway on the X and Z axis.
45 degrees slant bed construction features efficient chip removal and firm support.
Specifications
Swing over bed | Ø 840 mm ( 30” ) |
---|---|
Max turning diameter | Ø 670 mm ( 26.37” ) |
Working length |
600mm ( 23.6” ) 1200 mm ( 47.2" ) 2100 mm ( 82.7" ) |
Spindle nose | A2 - 8/OP:A2-11 |
Bar capacity | Ø 91 mm ( 3.85” ) / OP: Ø 117 mm ( 4.6" ) |
Hydraulic chuck | Ø 304 mm ( 12” ) / OP: Ø 381 mm ( 15" ) |
X axis travel | 365 mm ( 335+30 ) ( 14.4" ) |
Z axis travel |
700 mm ( 27.56” ) 1300 mm ( 51.18" ) 2200 mm (86.61" ) |
STANDARD ACCESSORIES
Feature
- Major machine parts, such as base, saddle, headstock, slide and sub spindle are made of Meehanite cast iron. They are tempered to relieve stress thereby ensuring lifetime accuracy.
- High performance servo motors are directly coupled to the pre-tensioned ball screws.
- Linear guide way on X and Z axes has fewer friction and faster feed rate.
- ox guide way on B axis has higher rigidity.
- 45 degrees slant bed constriction features efficient chip removal and firm support.
Controller : FANUC、SIEMENS、FAGOR
FANUC Controller (Std.)
SIEMENS Controller (Opt.)
FAGOR controller (Opt.)
SKF Precision Spindle and P4 precision bearings :
The cartridge type is conveniently removed allowing for convenient servicing. The spindle runs on class P4 precision bearings providing high axial thrust capability and superior radial stability. This ensures high precision during heaving duty turning.
Fast Turret Indexing :
FCL - TS / TT series turret
The 12 position turret features bi-directional random tool selection. Fast indexing time is 0.6 seconds.
FCL - S series : hydraulic turret
Twin spindle series enables the entire workpiece to be machined at one time.
