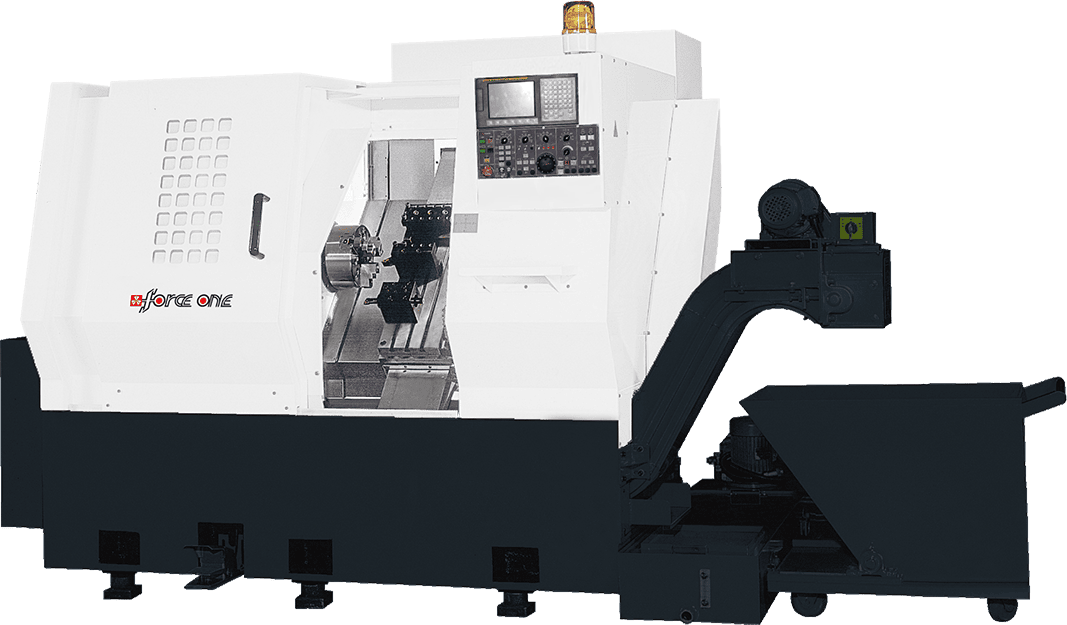

Gang type cnc lathe
Gang type cnc lathe
FNC-10
Feature
The slideways are coated with Teflon to eliminate stick-slip, minimize wear and maintain long term accuracy.
Gang type CNC lathe. It has the longest gang slide travel in the word, and has excellent rigidity and tools capacity.
The 45° bed is one piece, close grained casting mounted on a cast-iron base, on a cast-iron base.
Widely spaced hardened and ground slideways combined with the 32mm dia. Z axis ball screw give exceptional rigidity.
Specification
Specifications
Swing over bed / Sub plate | Ø 400/120 mm (15.7"/4.7") |
---|---|
Chuck size | Ø 160 mm (6") |
Spindle nose | A2 - 5 |
Spindle bearing diameter | Ø 90 mm (3.5") |
Bar capacity | Ø 45 (1.7") |
Cross slide travel (x) | 450 mm (17.7") |
Longitudinal carriage travel (Z) | 340 mm (13.3") |
