Wivie always think about needs and conveniences from users, and then, we make more suitable and efficient machines, W series. The human-based and innovation are our important core design. The new experience by W series presented.

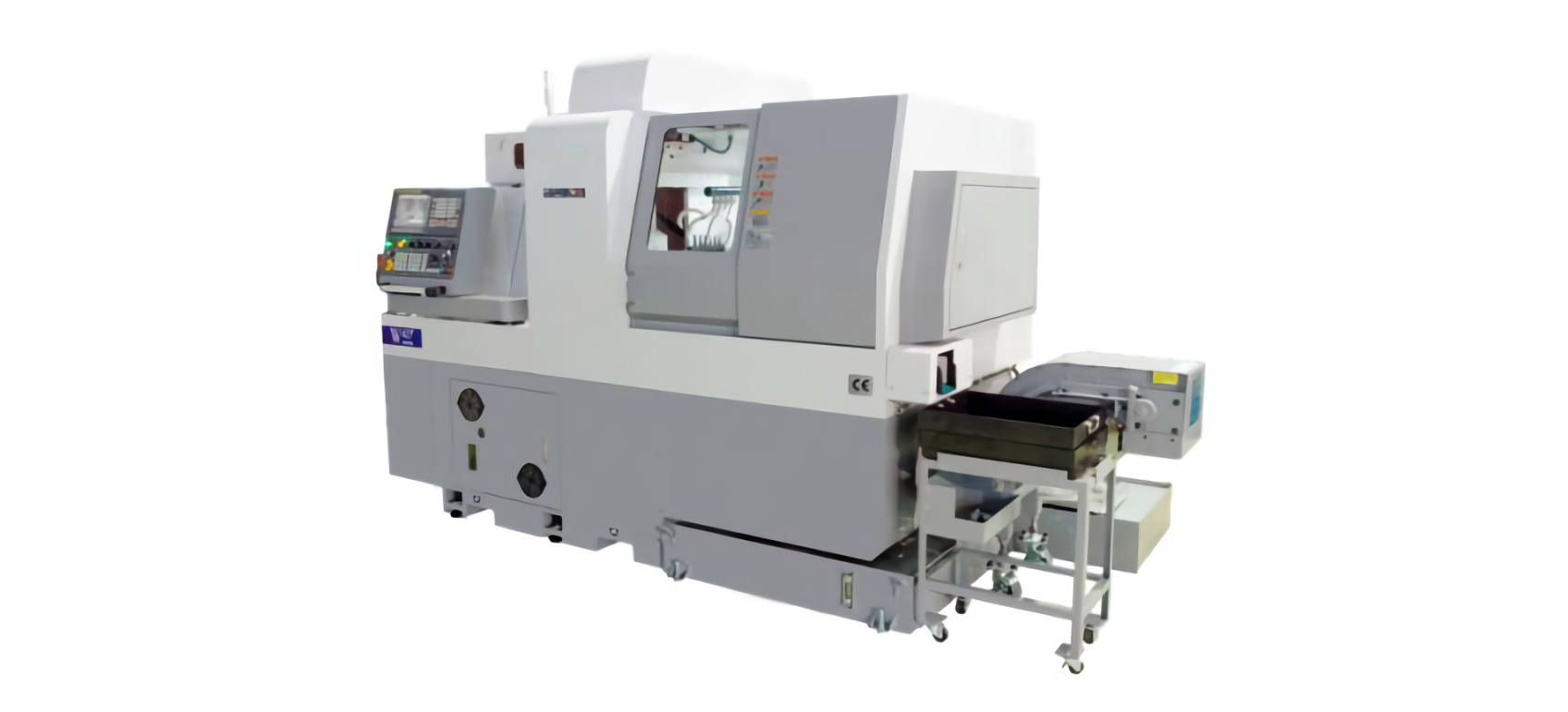

W series and SW series CNC Swiss Turn Machine can process milling, tapping, drilling, and turning complexity parts for medial parts (especially for bone screw), electrical parts, automobile, clock/ watch, and aerospace..., etc.. Main and Sub spindle synchronous machining can save time cost.

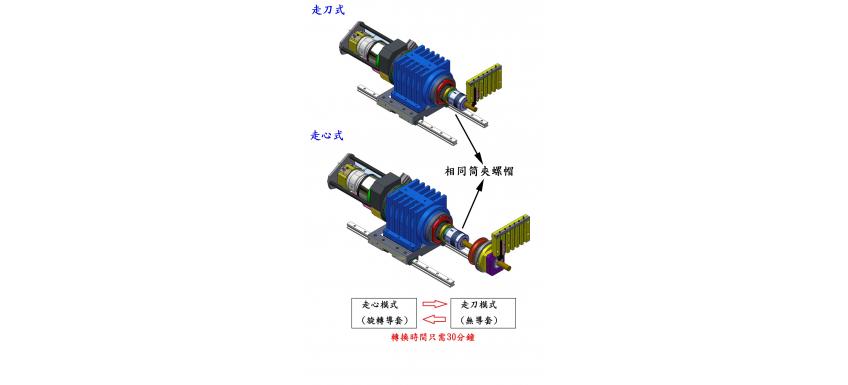

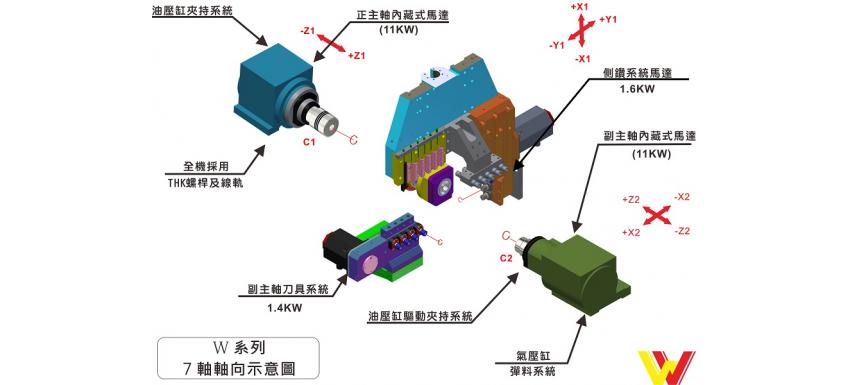

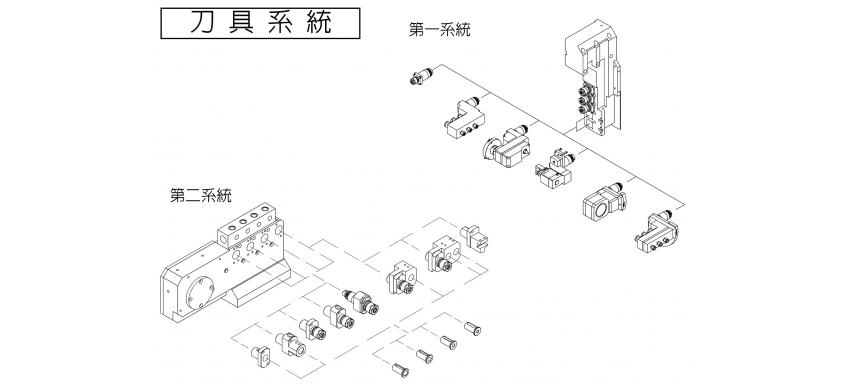

Feature
Process Capacity:
|
Item |
Unit |
Max. Capacity |
Remark |
|
Main/ Sub spindle Max. drilling |
mm |
Ø13 |
SUS303 |
|
Main/ Sub spindle Max. tapping |
mm |
M12 / P1.75 |
SUS303 |
|
Cross live tool Max. drilling |
mm |
Ø10 |
SUS303 |
|
Cross live tool Max. tapping |
mm |
M8 / P1.25 |
SUS303 |
|
Sub spindle face live tool Max. drilling |
mm |
Ø10 |
SUS303 |
|
Sub spindle face live tool Max. tapping |
mm |
M6 / P1.0 |
SUS303 |
*Tested by FANUC system
Specification Table
Main structure:
|
Item |
Unit |
W327 |
W427 |
Remark |
|
Max. turning dia. |
mm |
Ø32 |
Ø42 |
|
|
Max. turning length (Rotary) |
mm |
300 |
|
|
|
Max. turning length (Fixed) |
mm |
340 |
|
|
|
Max. turning length (Non guide bush) |
mm |
80 |
105 |
|
|
OD tooling holder |
pcs |
6 |
□16 |
|
|
ID tooling holder |
pcs |
5 |
Ø25 |
|
|
Cross live tooling holder |
pcs |
3 |
ER-20 |
|
|
Cross live tooling holder |
pcs |
2 |
ER-16 |
|
|
Face live tooling of sub spindle holder |
pcs |
4 |
4 |
ER-16 |
|
Sub spindle aside drilling tooling holder |
pcs |
2 |
Ø25 |
|
|
No. of axis controls (with C axis) |
pcs |
7 |
7 |
|
|
C axis control minimum |
degree |
0.001° |
|
|
|
Max. main spindle speed |
rpm |
7000 |
6000 |
|
|
Max. sub spindle speed |
rpm |
7000 |
6000 |
|
|
Rapid traverse of X1/X2/Z1/Z2/Y1 |
M/min |
30 |
|
|
|
Rapid traverse of Y2 |
M/min |
20 |
|
|
|
Main spindle motor |
KW |
11 |
Built-in |
|
|
Sub spindle motor |
KW |
11 |
Built-in |
|
|
Main spindle cooling |
pcs |
Oil cooling |
|
|
|
Sub spindle cooling |
pcs |
Oil cooling |
|
|
|
Main spindle clamping system |
pcs |
Hydraulic |
|
|
|
Sub spindle clamping system |
pcs |
Hydraulic |
|
|
|
Cross live tooling motor |
KW |
1.6 / 6000rpm |
|
|
|
Face live tooling motor of sub spindle |
KW |
1.4 / 6000rpm |
|
|
|
Lubrication tank |
L |
2 |
|
|
|
Air compressed pressure |
Mpa |
0.6 |
1 | |
|
Air compressed flow |
L/min. |
20 ~ 145 |
4 |
|
|
Machine dimension L x W x H |
mm |
2945 x 1665 x 2130 |
2 |
|
|
Coolant tank |
L |
380L(100%) |
3 | |
|
Weight |
KG |
4450 |
2 | |
1. 0.6Mpa = 6kg/cm2
2. Without coolant tank and pumps.
3. At least 90% full for machining
4. Air flow will be different by different options.
All specification are subject to change without notice.
