Products

Hi-Speed Built-in Spindle
Built-in Type Spindle

Applications :
• Suitable for carving machines.

Spindle Features :
• Spindle speed:24,000 rpm

• Spindle cooling method: Oil cooling.

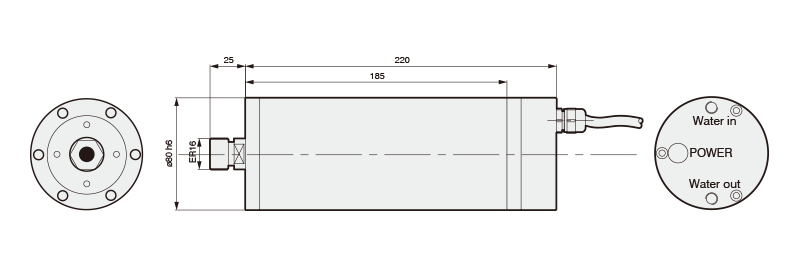

Specification

Model

Maximum Speed

24,000 R.P.M

Maximum Dynamic Runout

0.01 mm

Cooling Water Flow Rate

56.9 IMP( L/Hour )

Cooling Water Inlet Temperature

18~22˚C

Axial Failure Load (Push)

25 kgf

Body Size

80 mm (h6)

Weight

7 kg
