Hi-Speed Built-in Spindle
Built-in Type Spindle
Applications :
• Suitable for carving machines.
Spindle Features :
• Spindle speed：60,000rpm
• Spindle cooling method: Oil cooling.
Specification
| 型式 | |
|
Motor Type |
220V, 2P, 3Ø |
|
Power Output |
0.75 kW |
|
Maximum Speed |
60,000 R.P.M |
|
Maximum Dynamic Runout |
0.01 mm |
|
Cooling Water Flow Rate |
56.9 IMP(L/Hour) |
|
Cooling Water Inlet Temperature |
16~20˚C |
|
Collected Actuation Pressure |
6 kg/cm2 |
|
Collected Locking Torque |
1.63 Nm |
|

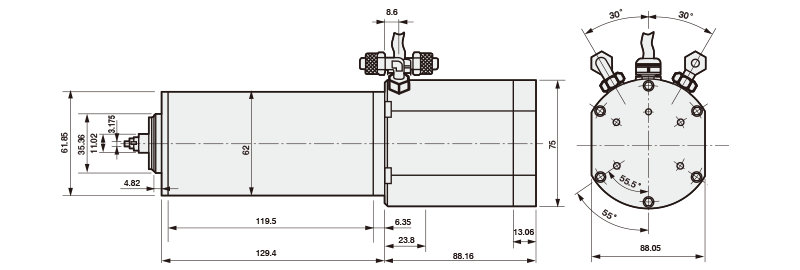

Body Size |
62 mm (h6) |
|
Weight |
4 kg |
