A patented new product developed in 2015. Produce 1200m3 air flow rate every hour. Suitable to install on the machine with closet working space such as CNC lathe, CNC machine center, EDM, Gear hobbing machine, CNC grinding machine, for its oil mist recycle and filtration.
** 2015 new developing patented product **
** Air flow rate up to 1200m3/hr **

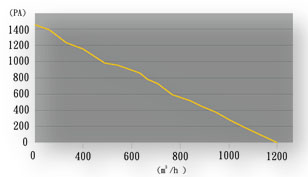

＜Specification＞
＜Charactor＞
Height efficiency design：
With Patented cyclone that creates huge air flow; centrifugal filtering to reduce the saturated rate of the filter.
Special filter kit：
High density filter, every mm3 filter was crisscrossed by 100 apertures.
Low energy consumption ：
Using 1/2 HP high efficiency motor to save the plant energy consumption.
Freely installation：
Installing according to the exactly space without effect the working flow.
Low vibration：
Triple dynamic balanced fan and separated filter make sure the fan can be always balanced after long working time.

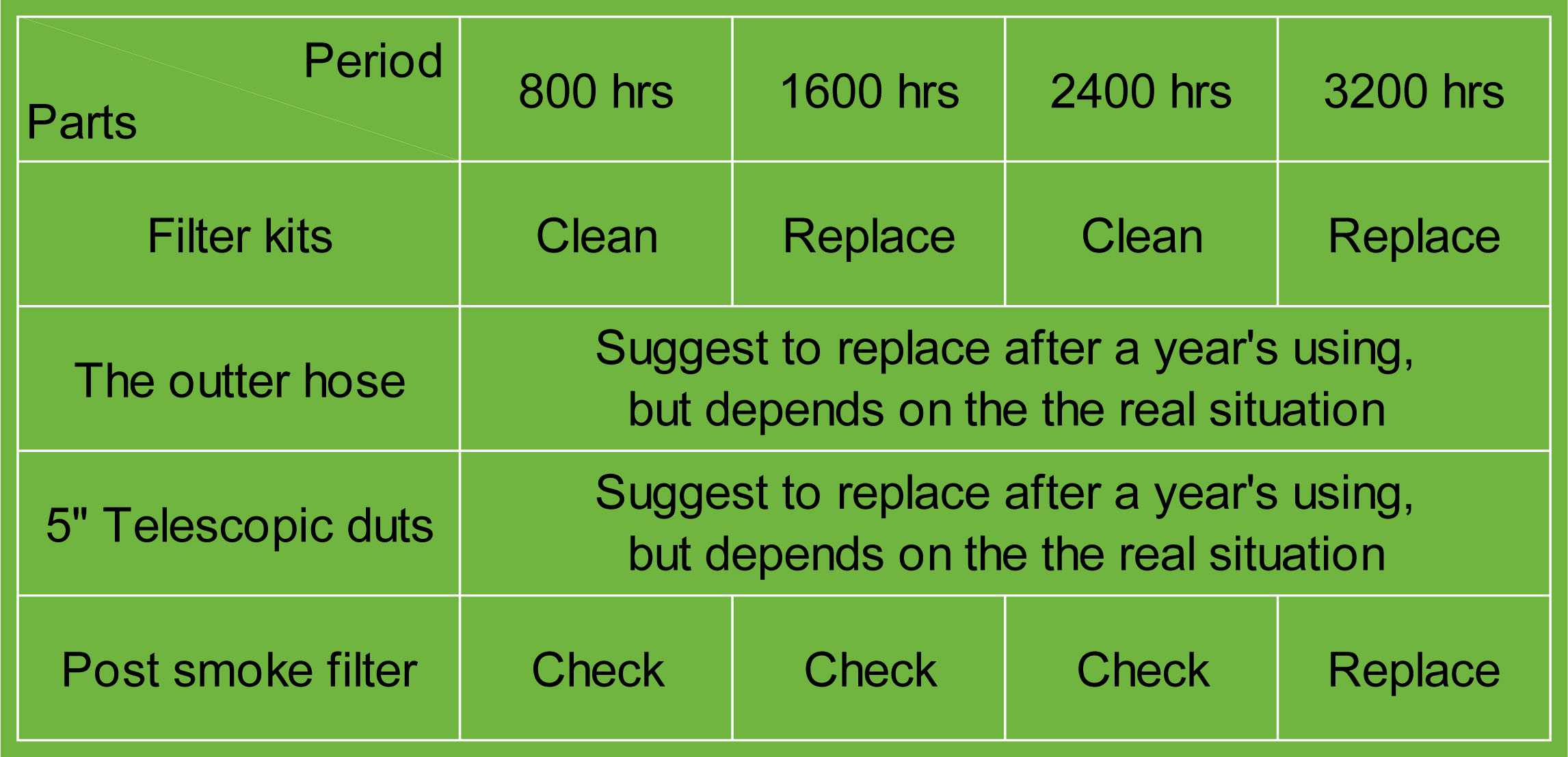

＜Maintenance＞

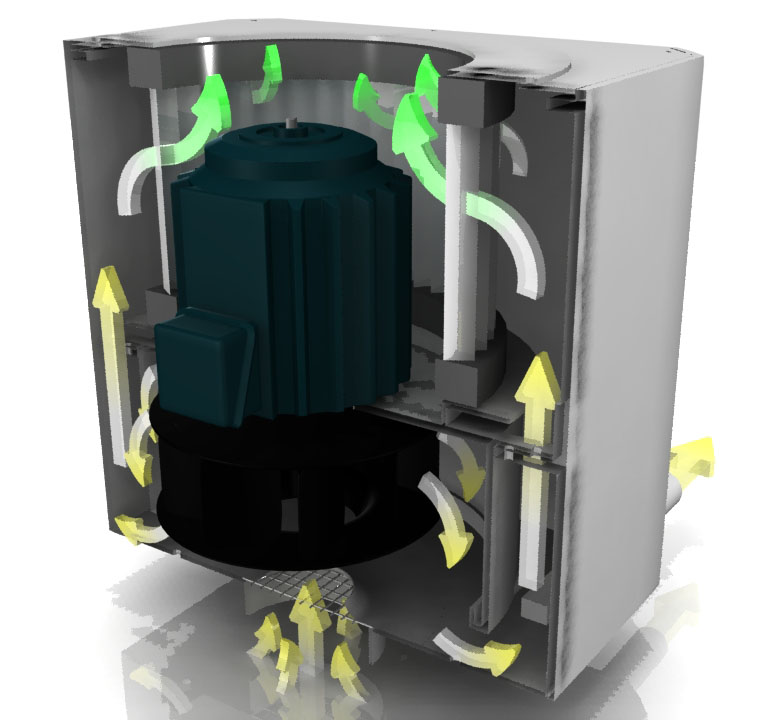

＜Flow field＞
Patented cyclone design, creats huge wind flow by using smallest motor.
Wind flow dirction allows the liquid to be recycled first and filtered than in order to reach the huge recycleing result.

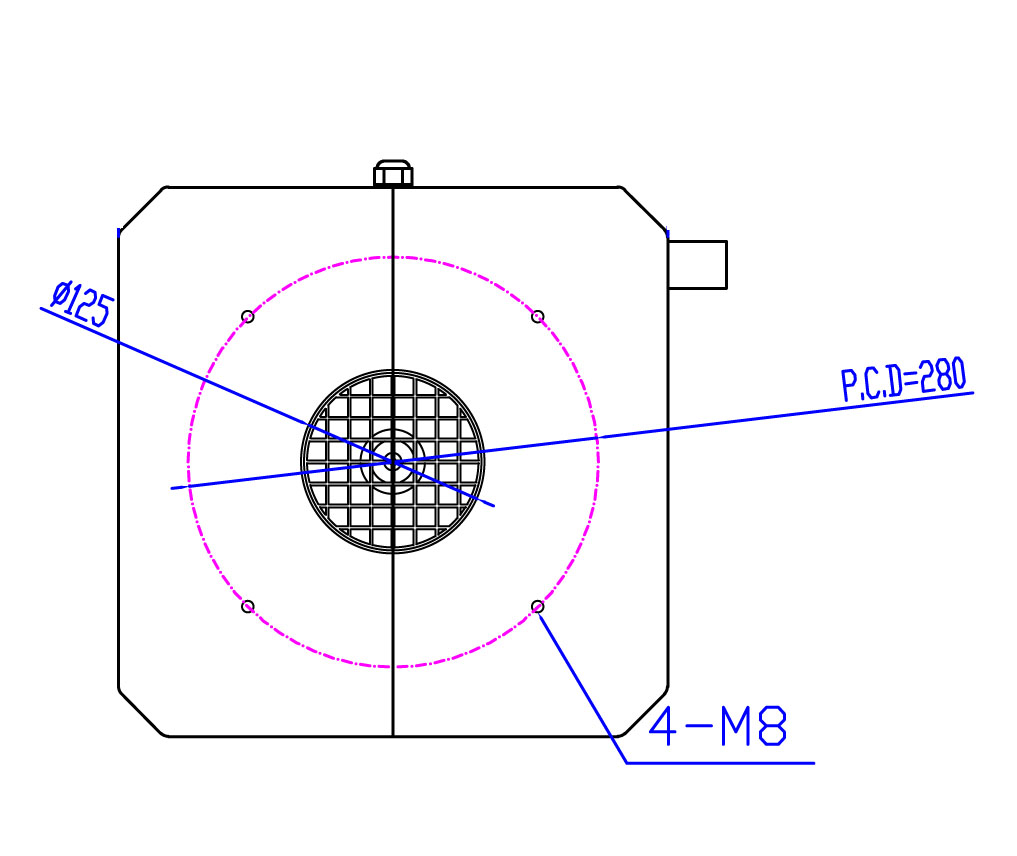

＜Installation hole＞
