Products

Magnetic Buzzer
Magnetic Transducer-SMD

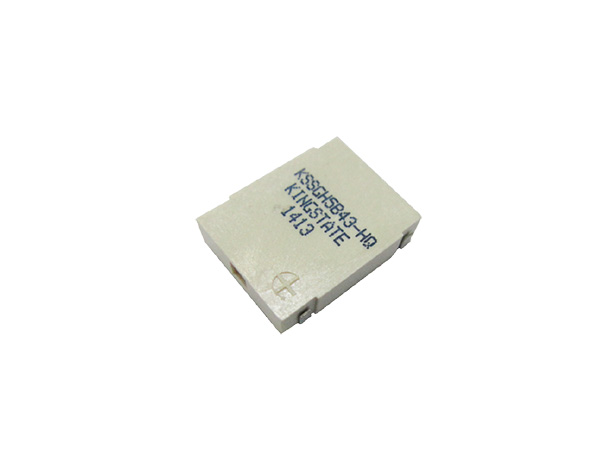

KSSGH5B43-HQ

Specification

  • Rated Frequency (Hz):3,200
  • Rated Voltage (Vo-p/VDC):5.0
  • Current Consumption (mA):Max. 90
  • Sound Pressure Level (dB):Min. 87dBA(Typical 93)@10cm
  • Coli Resistance(Ω):43+/-6.5
  • Operating Voltage Range (Vo-p):4.0~7.0
  • Operating Temperature (℃):-40~+85
  • Storage Temperature (℃):-50~+85
  • Dimension (mm):14.0x11.0x3.0
