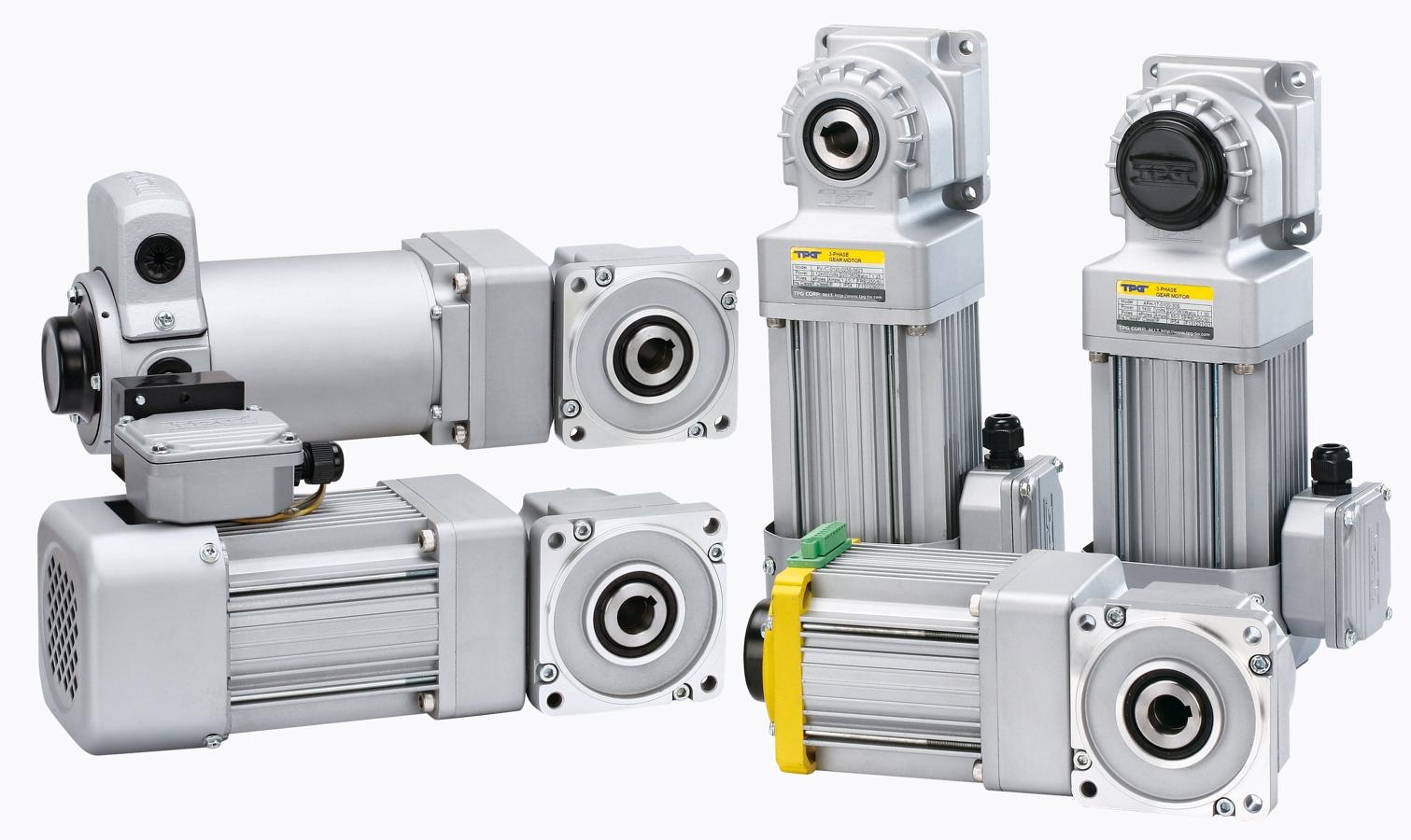

AF-17 TYPE
• 3 PHASE: 60W, 100W, 120W
• 1 PHASE: 45W, 60W, 90W
• RATIO：1:7.5-200

1. Wider gear ratio available from 7-200.
2. Higher torque ability for those high gear ratios over 80 to 200.
3. Safe factor 1.0 with reasonable purchase cost.
4. Gear efficiency reach 90%.
5. Flexible motor options, which can be in AC power, DC power or Brushless DC power.
6. Output end can be in hollow bore 17mm dia., or solid shaft type 18mm dia..
7. Using high quality grease, no need to be re-filled under normal operation status, saving maintenance cost.
8. Lower noise running, supply quiet & nice operation environment.
9. For AC power 3 Phase motor 60W-120W, Single phase 45W-90W.
10. With nice alloy conduit box, safe & durable.
11. TEFC or TENV available, IP54, F insulation level.
12. Brake function available, as well as many necessary accessories options, such as AC inverter, DC control, and brushless motor control supply.

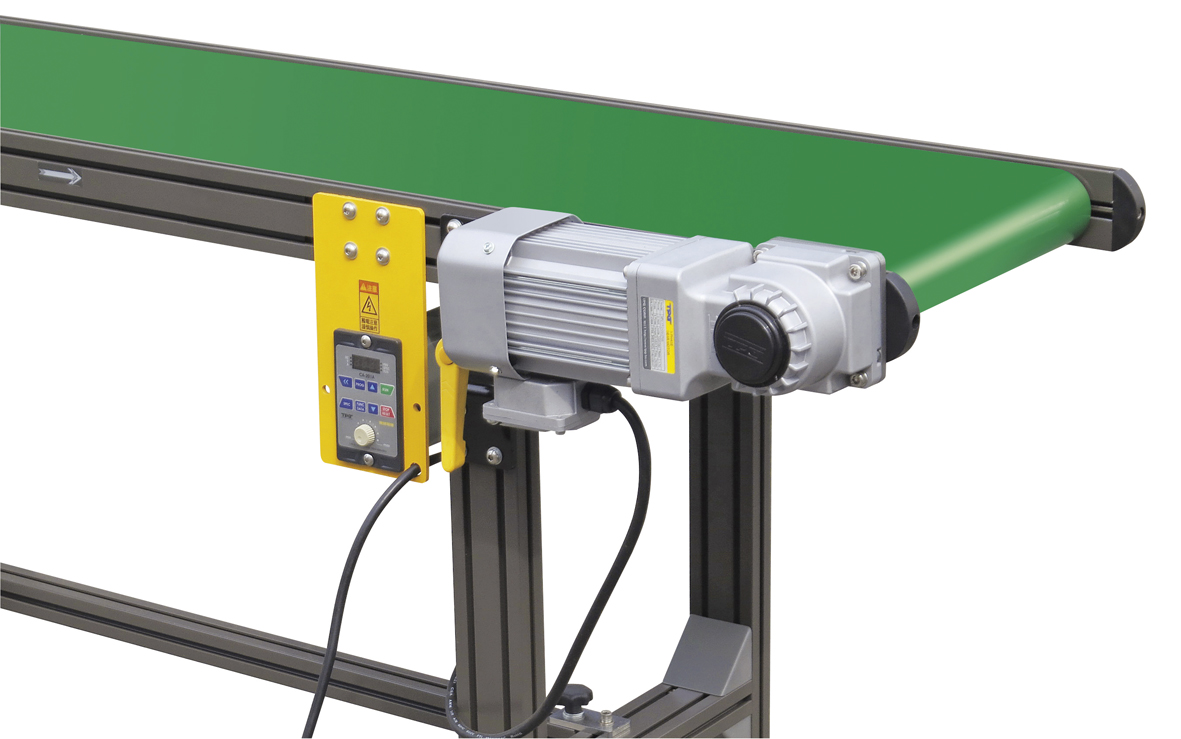

13. Application: packing machine, conveyor, food processing machine, frozen food machines...etc.

Variable Speed AC Drive
CA-202A/CA-201A
CA-201A：0.12KW 0.9A
CA-202A：0.2KW 1.5A
Input Voltage: 1Ø 220±10% Vac 50/60Hz
Output Freq.: 0.1~400Hz
