High Speed Milling Machine VD

VD 10060

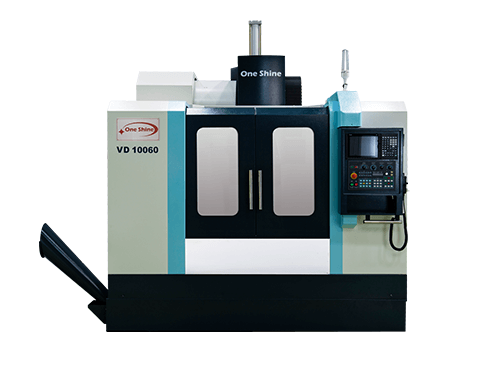

High Speed Milling Machine VD 10060
High Speed Milling Machine VD Series ---Vertical machining centers
★High speed and high accuracy design for mold processing
Features:
1) The 3axes adopt high precision roller type guideways. The travels are light and smooth, suitable for the needs of high-speed precision machining.
2) Rapid traverse rates on three axes reach 24M/min(Standard), 36M/min(OP)
High Speed Milling Machine VD 10060
TECHNICAL DATA
1) Max. X travels 1000mm
2) Max. Y travels 600mm
3) Max. Z travels 600mm
4) Max. table load 700kg
5) Table length 1100mm
6) Table width 600mm
7) T slot 5*18*100mm

CONTROL & SOFTWARE
1) MITSUBISHI M80-A control systems
2) FANUC 0i-MF control systems (OP)
3) SIEMENS control systems (OP)

FEATURES

1) Worktable max. loading capacity 700kg

2) X-travel : 1000mm / Y-travel : 600mm / Z-travel : 600mm

3) Worktable Size : 1300*600mm

4) distance from spindle to nose : 130~730 mm

5) Spindle Taper : BT-40

6) Spindle Speed : 10,000rpm

7) Direct spindle motor drive

8) Floor Space ：2,600 * 2,450 * 3,120 mm

9) Net Weight : 6,800 kg

10) We specializing in the manufacturing of High Speed Milling Machine features high efficiency and capacity

HIGH SPEED MILLING MACHINE FOR ROLLER TYPE LINEAR WAYS ON THREE AXES

► The X,Y,Z-axis are all mounted with heavy duty linear ways together with great span between linear ways, featuring high rigidity, low friction coefficient and outstanding dampening capability.

► Each linear way is equipped with the extended extra heavy duty blocks for upgrading loading capacity and dynamic stability.

TWIN CHIP AUGERS
► There is one set each of chip auger mounted at the right and left side of the base, which can deliver chips generated during cutting to the chip conveyor at the back side of the machine.

HIGH ACCURACY
► Positioning accuracy: 0.009mm

► Repeatability : 0.006mm
3) Spindle speed 10,000 rpm in standard.

Specification

High Speed Milling Machine VD 10060

	ITEM		VD-7550	VD-8150	VD-10060	VG-12070
Standard equipment	3-axes bellows cover	**	●	●	●	●
	Full enclosure spash guard	**	●	●	●	●
	Automatic lubrication	**	●	●	●	●
	Spindle air-blow device	**	●	●	●	●
	Spindle air-shield dust-proof	**	●	●	●	●
	Programmable blowing system	**	●	●	●	●
	Cutting tool coolant system &water box	**	●	●	●	●
	Flushing device	**	●	●	●	●
	Water gun	**	●	●	●	●
	Air gun	**	●	●	●	●
	LED Working light	**	●	●	●	●
	LED Patrol light	**	●	●	●	●
	M30 Autoamatic power-off system	**	●	●	●	●
	Base block+ adjusting screw	**	●	●	●	●
	Tools and tool box	**	●	●	●	●
	System manual	**	●	●	●	●
	Operating manual+Schematic	**	●	●	●	●
Optional	Spindle Power Upgrade	KW	7.5/11	7.5/11	11.0/15	15/18
	Controller-Mitsubishi -M70	**	○	○	○	○
	Controller-Siemens828D	**	○	○	○	○
	CTS	**	○	○	○	○
	Spindle upgrade 12,000	**	○	○	○	-
	Spindle upgrade15,000	**	○	○	○	-
	Spindle upgrade20,000	**	○	○	○	-
	Spindle upgrade24,000	**	○	○	○	-
	Tools length measurement system	**	○	○	○	○
	Infrared detecting tool broken system	**	○	○	○	○
	Workpiece measurement system	**	○	○	○	○
	Electrical air condition system	**	○	○	○	○
	CE Approval	**	○	○	○	○
	Transfomer & amplitube stabilizer	**	○	○	○	○
	Oil mist system	**	○	○	○	○
	Tool handle oil stop block	**	○	○	○	○
	Cutting fluid coolant	**	○	○	○	○
	Mist Collector	**	○	○	○	○
	Disc oil water separator	**	○	○	○	○
	Scraper type chip conveyor	**	-	-	-	-
	Chain type chip conveyor	**	○	○	○	○
	Chip cart	**	○	○	○	○
	Automatic Door	**	○	○	○	○
	3-axes optical scale	**	○	○	○	○
	4th-CNC Indexing Plate	**	○	○	○	○
***As the manufacturer constantly improves the machine specifications and design characteristics, above specification are subject to change without notice.
