Longmen processing center series

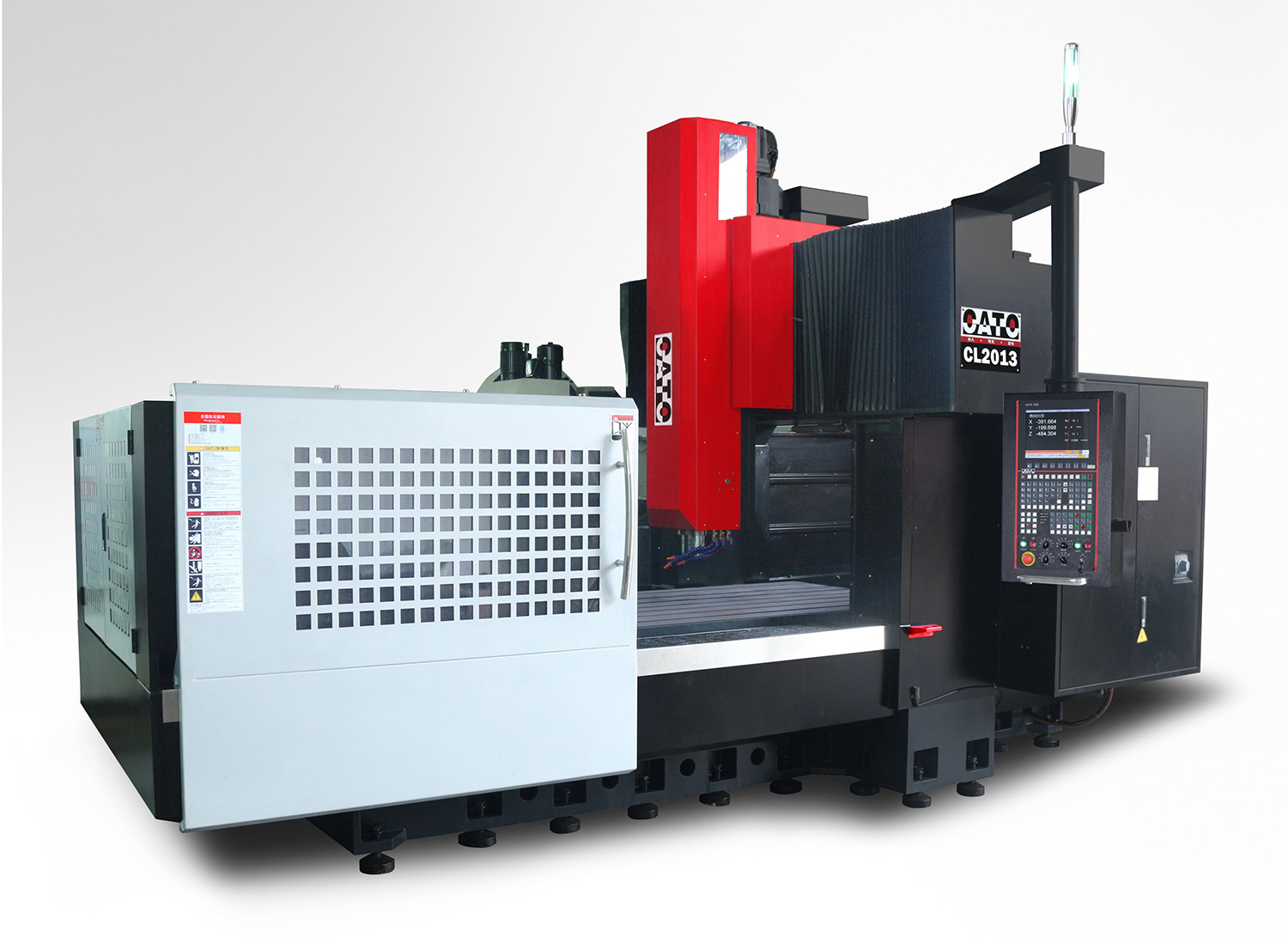

Double Column Machining Center
CL1210/1613/2013/1512/2015
The advantage of product
l Have the feature of high rigidity, high precision, high speed, high torque and others.
l Standard: BT40-φ150-12000rpm the direct driven spindle, low speed to provide high torque, high speed to provide high power..
l X/Y/Z axis is used linear guide, The three-axis rapid speed is 24/20/20m/min, improved the machine speed and efficiency.
l Using disc type ATC, 24 tool storage capacity, with the fast, simple and reliable tool change features.
DDR/DDRT 4th-axis optional

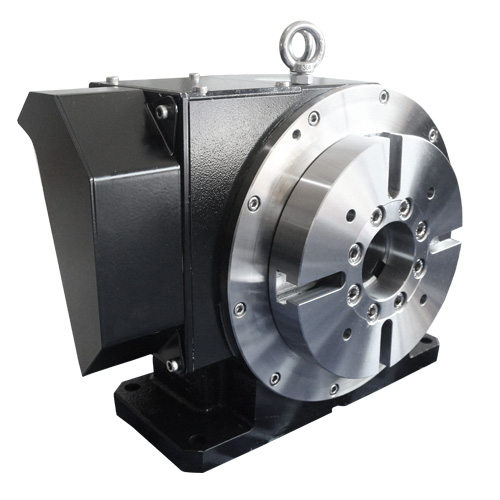

DDR 4th-axis

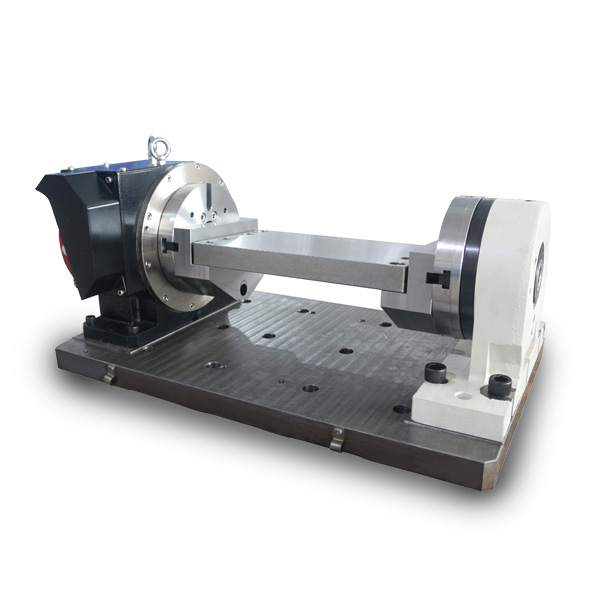

DDRT 4th-axis

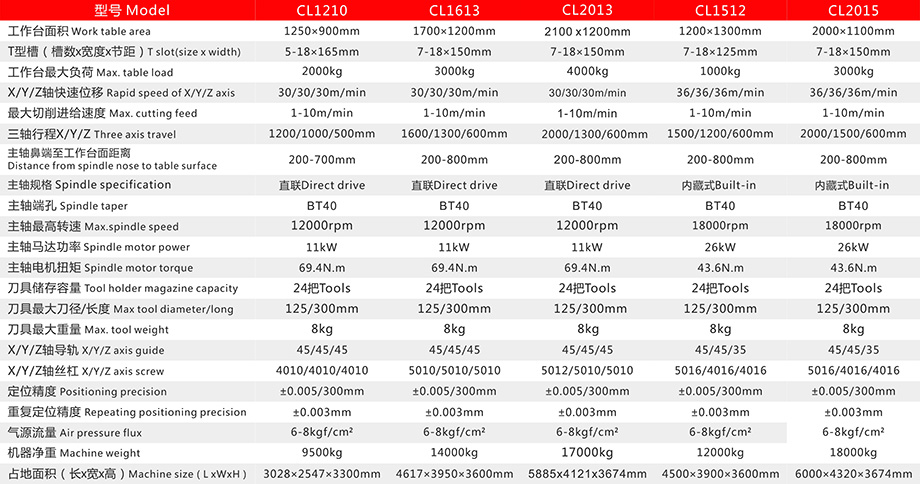

Specification
