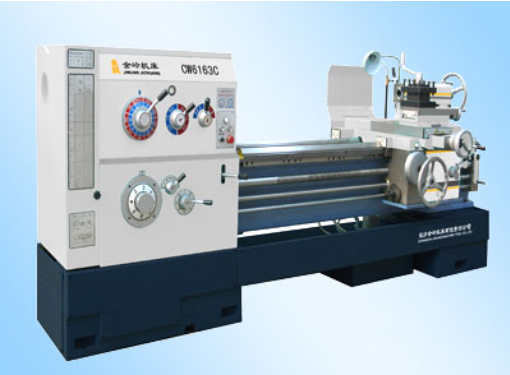

This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. It including: CW663C, CW6 73C,CW683C, CW693C, ect. Distance between centers are 750mm,1000mm,1500mm,2000mm,3000mm,4500mm,6000mm.
Model |
Unit |
CW6163C |
CW6173C |
CW6183C |
CW6193C |
|
Swing over bed |
mm |
630 |
730 |
830 |
930 |
|
Swing in gap |
mm |
800 |
900 |
1000 |
1100 |
|
Swing over cross slide |
mm |
350 |
450 |
550 |
650 |
|
Distance between centers |
mm |
750,1000,1500,2000,3000,4500,6000 |
||||
Length in gap from face plate |
mm |
300 |
||||
Spindle nose |
|
Cll or D11 |
||||
Spindle bore |
mm |
105,130 |
||||
Spindle speeds |
rpm/steps |
10—800/18 |
||||
Cross slidle travel |
mm |
480 |
||||
Top rest travel |
mm |
225 |
||||
Rapid traverse |
mm/min |
纵向:3200, 横向:1900 |
||||
Quill diameter |
mm |
90 |
||||
Quill travel |
mm |
260 |
||||
Quill taper |
|
MT5 |
||||
Bed width |
mm |
550 |
||||
Metric threads |
mm/kinds |
1—240/53 |
||||
Inch threads |
tpi/kinds |
30—2/31 |
||||
Module threads |
mm/kinds |
0.25—60/46 |
||||
Diametral pitch threads |
Lpi/kinds |
60—0.5/47 |
||||
Main motor power |
kw |
11 |
||||
Packing size |
Length |
mm |
3460,3390,3795,4330,5310,6810,8310 |
|||
Width |
mm |
1400 |
||||
Heigth |
mm |
2000 |
||||
Gross weight |
Kg |
4250 |
4450 |
4650 |
4900 |
|
4500 |
4700 |
5100 |
5300 |
|||
5000 |
5200 |
5600 |
5800 |
|||
5500 |
5700 |
6100 |
6300 |
|||
6200 |
6400 |
6600 |
6900 |
|||
7300 |
7500 |
7600 |
7900 |
|||
8300 |
8500 |
8600 |
8700 |
STANDARDACCESSORIES:
3—JAW CHUCK/Φ325&FLANGE、DEAD CENTERS、REDUCTION SLEEVE、MAINTENANCE KIT、FOUNDATTON BOLTS/NUTS、LEVEL BLOCKS、MACHINE TOOL MANUAL. [CENTERS DISTANCE IS MORE THAN 2000MM/(INCLUDE 2000MM)FOR(Φ200STEADY REST Φ20—140 FOLLOW YEST]
OPTIONAL ACCESSORIES:
4—JAW CHUCK&FLANGE、FACE PLATE、DRIVE PLATE、STEADY REST(LESS THAN 2000MM)、FOLLOW REST(LESS THAN2000MM)、Φ130 SPINDLE BORE、ELECTRIC TURRET、ELECTRIC QUILL、TAPER TURNING ATTACHMENT。
