Horizontal Lathe
103C series horizontal lathe
103C

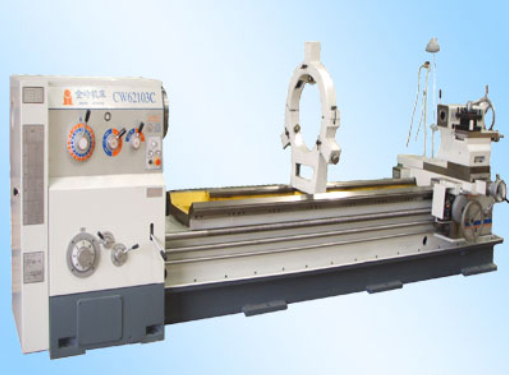

This series horizontal lathe is a new-designed product, which are based on 63C series lathe according to the market’s demand. The lathe is especially suitable for machining light-duty big disc work pieces and big diameter shaft work pieces.It including: CW61/2103C, CW61/2123C,CW61/2143C,CW61/2163C,CW61/2183C.The distance between centers are 1500mm, 2000mm, 3000mm, 4500mm, 6000mm.

Specification

Item

Unit

Spec./Model

CW61/2103C

CW61/2123C CW6 1/2 143C CW6 1/2 163C CW61/2183C

Swing in bed

mm

1030

1230 1430 1630 1830

Swing in gap

mm

1200

1400 1600 1800 2000

Swing over cross slide

mm

700

900 1100 1240 1440

Distance between centers

mm

1500,2000,3000,4500,6000

Length in gap from face plate

mm

380

Spindle nose



C11 or D11

Spindle bore

mm

105,130

Spindle speed

rpm/steps

10-800/18     7-576/18     6-480/18

Cross slide travel

mm

615          715        815    915

Top rest travel

mm

225                  300

Rapid traverse

mm/min

纵向Axe Z:3200,横向Axe X:1400

Quill diameter

mm

120

Quill travel

mm

270

Quill taper



MT6

Bed width

mm

610

Metric threads

mm/kinds

1-240/53

Inch threads

tpi/kinds

30-2/31

Module threads

mm/kinds

0.25-60/42

Diametral pitch threads

tpi/kinds

60-0.5/47

longitudinal feeds

mm/r

0.07-16.72

ain motor power

kw

0.04-9.6

Main motor power

kw

11



STANDARDACCESSORIES:
4-JAW CHUCK&FLANGEΦ500(103C、123C):Φ630(143C、163C、183C)DEAD CENTERS、REDUCTION SLEEVE、MAINTENANCE KIT、FOUNDATION BOLTS、NUTS、LEVEL BLOCKS、MACHINE[CENTRES DISTANCE IS MORE THAN 3000MM(INCLUDE 3000MM)。FOR STEADY REST/Φ500(103C、123C)、Φ700(143C、163C、183C)

OPTIONALACCESSORIES:

3-JAW CHUCK&FLANGE、FACE PLATE、STEADY REST(LESS THAN 3000MM)、FOLLOW REST、Φ130 SPINDLE BORE、ELECTRIC TURRET、ELECTRIC QUILL、TAPER TURNING ATTACHMENT
