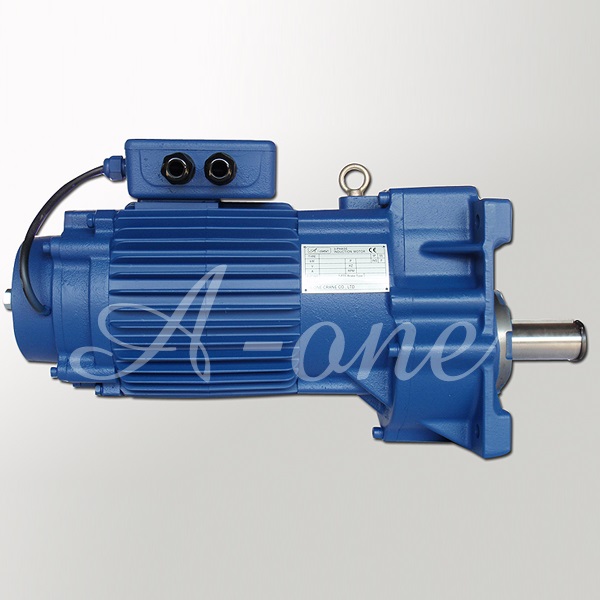

The gear boxes are designed with soft start which makes it operate smoothly and quietly. It is characteristic of reducing impact and increasing long life.
The motor are high starting torque and high output load, The brake of motor can be easily adjusted brake torque.
Specification:
Power: 2.2kWx 4P or 1.5kWx6P, 1.5/0.75kW x 4/8P, 1.5/0.5kW x 4/12P 1.5/0.37Kw x 2/8P
Power supply: 200V~600V/(50/60Hz)
Ratio: 16,10
With output pinion ( M3.5, M4.0, M5.0, M6.0 )
Specifications:
|
Type |
Power |
Pole |
Ratio |
Output speed(RPM) |
|
|
50Hz |
60Hz |
||||
|
NK-2.2A |
2.2 |
4 |
16 |
90 |
108 |
|
1.5 |
6 |
60 |
72 |
||
|
1.5/0.75 |
4/8 |
90/45 |
108/54 |
||
|
1.5/0.55 |
4/12 |
90/30 |
108/36 |
||
|
1.5/0.37 |
2/8 |
180/45 |
216/54 |
||
Output pinion
|
Module |
Teeth |
Shifted factor |
|
M3.5 |
21T |
0.5 |
|
M4.0 |
16T 17T 18T 19T 20T 21T 22T |
0.5 |
|
M5.0 |
(12T) 13T 14T 15T 16T 17T 18T 19T 20T |
0.5 |
|
M6.0 |
10T 12T 13T 14T 16T |
0.5 |
Remark: in () means soild gear.
Certificate:
- CE Approved
- China CCC certificate(3C)
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung port, Keelung port
