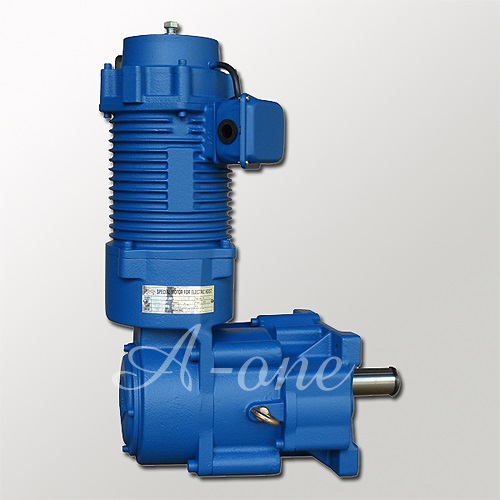

Angular gear motor for bogie crane
Angular gear motor for bogie crane
LK-W-2.2 A

The gear boxes are designed with soft start which makes it operate smoothly and quietly. It is characteristic of reducing impact and increasing long life.

The motor are high starting torque and high output load, The brake of motor can be easily adjusted brake torque.

Specification:
Power: 2.2kW x 4P , 1.5kW x 6P, 1.5/0.75kW x 4/8P, 1.5/0.5 x 4/12P
Power supply: 200V~600V/(50/60Hz)
Ratio: 16,10
With output pinion ( M3.5, M4.0, M5.0, M6.0 )

Specification

Specifications:

Type

Power
(KW)

Pole

Ratio

60Hz

50Hz

Accessory

Output speed
(RPM)

Output torque (Nm)

Output speed
(RPM)

Output torque
(Nm)

LK-W-2.2A
LK-W-2.2A-S

2.2

4

16

108

195

90

233

 *With flange plate
(Ø100 bore or Ø130 bore)

1.5

6

71

202

59

243

1.5/0.75

4/8

108/54

133

90/45

159

1.5/0.5

4/12

108/36

133

90/30

159

Sleeved pinion

Module

Teeth

Shifted factor

M3.5

21T

0.5

M4.0

16T 17T 18T 19T 20T 21T 22T

0.5

M5.0

[12T] 13T 14T 15T 16T 17T 18T 19T 20T

0.5

M6.0

[10T] 12T 13T 14T 16T

0.5

*Remark: 1. The pinion in the [ ] is solid pinion.
               2. The shifted factor of M5*19T is 0.25.

Certificate:

  • CE Approved
  • China CCC certificate(3C)
Order Information:
  • Minimum Order: Negotiable
  • FOB: Taichung port, Keelung port
