Model name: HSK63A| Product Type: Customized
Product Details
Product Introduction:
1. The shell is made of aviation aluminum, which is processed through aging treatment and precision processing. It has the characteristics of high rigidity, high precision and long life. The minimum allowed is фD77
2. The main drive shaft is made of special alloy material, processed through strict heat treatment process, and finally precision ground and formed to achieve high stability of the transmission.
3. The gear bearings are all imported from original packaging, ensuring the high torque of the transmission. Low noise.
4. The input and output forms are diverse and flexible, not limited to BT or ER interfaces. It can meet the use of various precision processing equipment and can be used for milling, drilling, tapping, grinding and other processes.

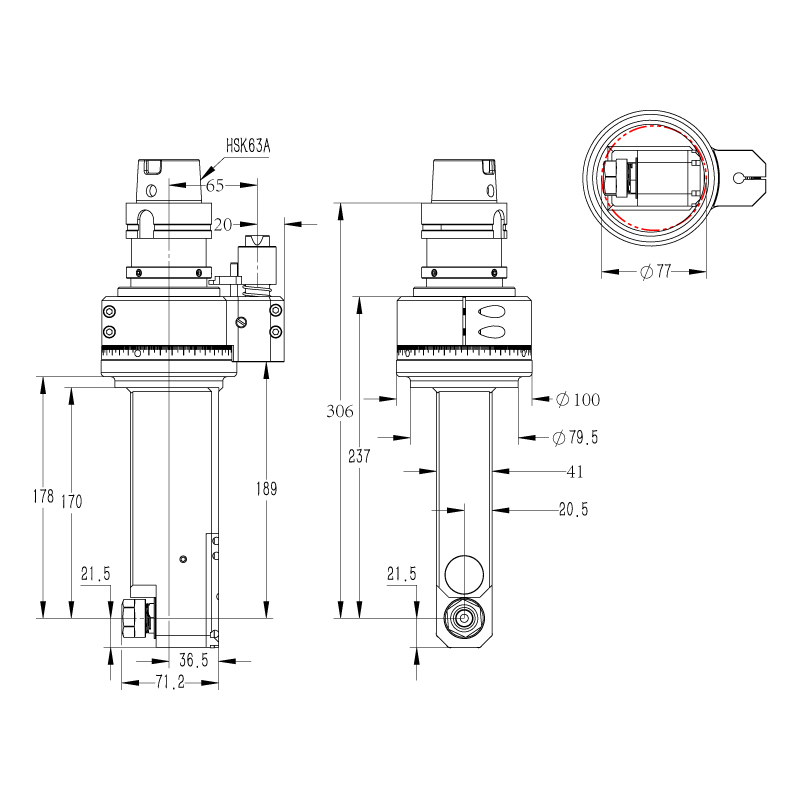

◎Specification model: DK90-HSK63A-ER16M-170
◎Drive handle: HSK63A
◎Other handles: Support
◎Peak speed: 6000RPM
◎Spindle steering: CW-CW
◎Transmission ratio: 1:1
◎Through diameter: D77
◎Clamping range: D1-D10
◎Tapping range: M5-M8
◎Peak torque: 18.Nm
◎Milling head weight: 6.833kg
◎Inventory status: Always in stock
◎Non-standard customization: support
