Model name: BT50, Caliper series| Product Type: Customized
Product introduction:
1. The shell is made of 40Cr, which is processed through aging treatment and precision machining. It has the characteristics of high rigidity, high precision and long life. The minimum allowed is фD63
2. The main drive shaft is made of special alloy material, processed through strict heat treatment process, and finally precision ground and formed to achieve high stability of the transmission.
3. The gear bearings are all imported from original packaging, ensuring the high torque of the transmission. Low noise.
4. The input and output forms are diverse and flexible, not limited to BT or ER interfaces. It can meet the use of various precision processing equipment and can be used for milling, drilling, tapping, grinding and other processes.

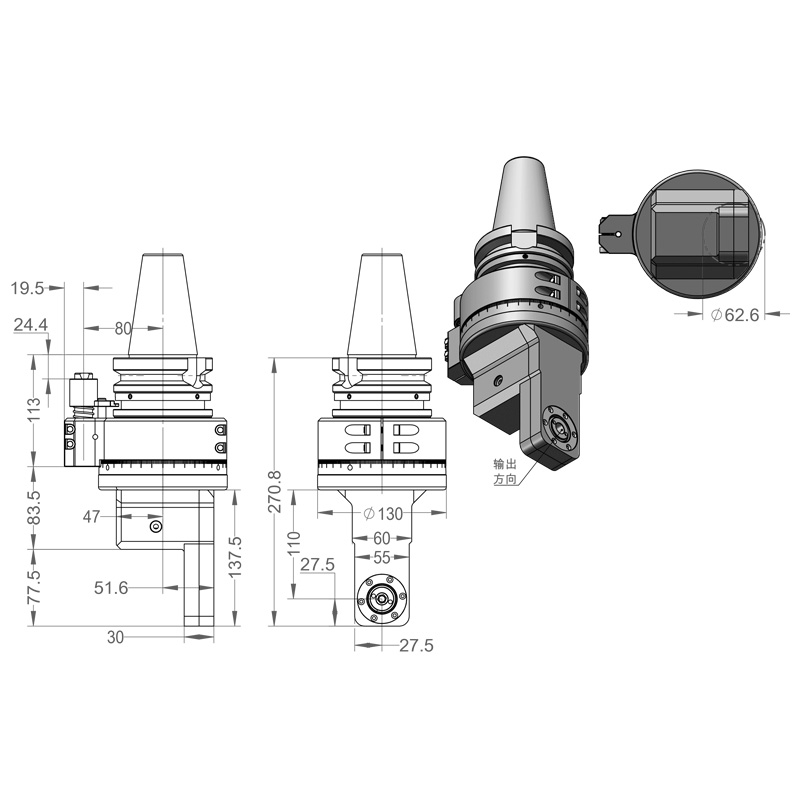

Milling head parameter table

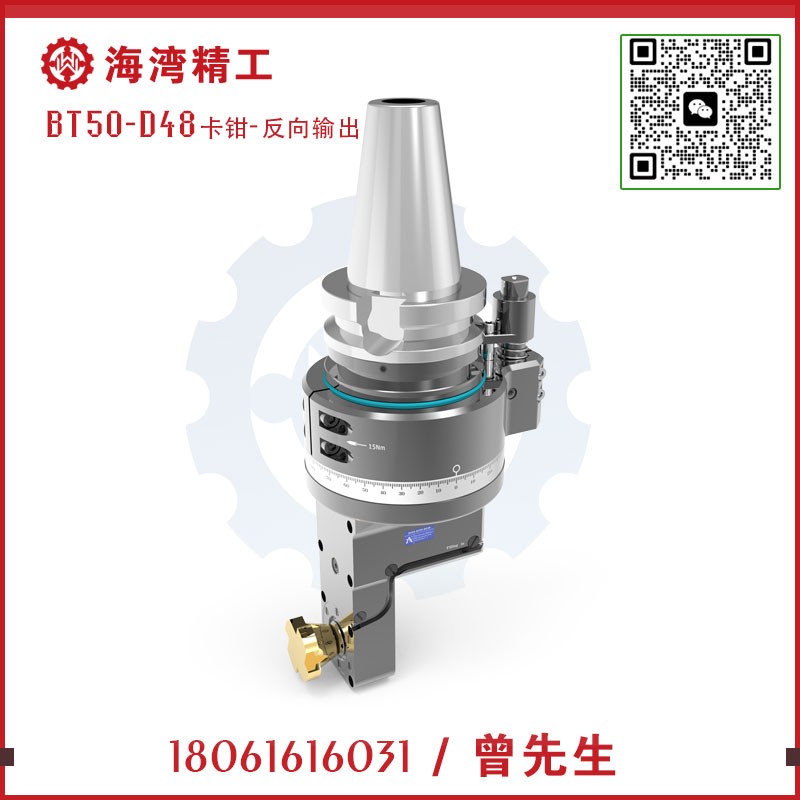

Specifications and models: DK90-BT50-D48 caliper reverse output
Drive tool holder : BT50
Other handles: Support
Peak speed: 2000RPM
Spindle direction: CW-CW
Transmission ratio: 1:1
Through diameter: D63
Clamping range: D12
Tapping range: /
Peak torque: 35.Nm
Milling head weight: kg
Stock status: Standing stock
Non-standard customization: support
