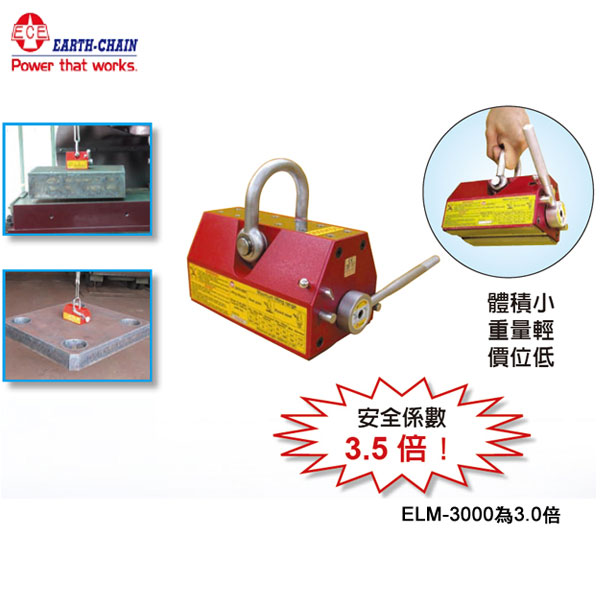

Switching ELM series permanent magnetic lifting plate
Lifting Magnet
ELM
Features
- Made by “Rare Earth” magnet with technology of improvement.
- All new models with “light weight” “less dimension” and “lower price”.
- Made by permanent magnet, require no power supply, thus eliminating hazards due to failure wiring system as electric type.
- It features powerful magnetic force, with 3.5 times safety coefficient makes more safety in use.
Applications
Suitable for move plate steel, block steel and round steel, such as machine parts, press molds, plastic molds and iron material .....etc.
SAFETY FACTOR x 3.5 times： (ELM-3000 x 3.0 times)
The capacity of magnet indicated as 1/3.5 of holding power, it means the real holding power is 3.5 times of capacity. For example the capacity of ELM-600 is 600kg (1320lbs) but the real holding power is 2100kg (4620lbs).
The large safety coefficient is concideration for ensuring the use in safety.
MAXIMUM LIFTING RANGE
Specification
DIMENSIONS
| MODEL | Capacity | A | B | C | D | E | F | G | H | Weight | SAFETY FACTOR |
||||||||||
| kg | lbs | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | ||
| ELM-100 | 100 | 220 | 107 | 4.2 | 84 | 3.3 | 120 | 4.7 | 125 | 4.9 | 60 | 2.4 | 71 | 2.8 | 41 | 1.6 | 30 | 1.2 | 2.5 | 5.5 | x3.5times |
| ELM-300 | 300 | 660 | 180 | 7.1 | 155 | 6.1 | 156 | 6.1 | 185 | 7.3 | 90 | 3.6 | 93 | 3.7 | 51 | 2.0 | 41 | 1.6 | 8.6 | 18.9 | |
| ELM-600 | 600 | 1320 | 255 | 10 | 224 | 8.8 | 212 | 8.3 | 260 | 10.2 | 115 | 4.5 | 120 | 4.7 | 77 | 3.0 | 52 | 2.0 | 21 | 46 | |
| ELM-1000 | 1000 | 2200 | 280 | 11 | 245 | 9.6 | 286 | 11.3 | 371 | 14.6 | 165 | 6.5 | 169 | 6.7 | 97 | 3.8 | 87 | 3.4 | 46 | 101 | |
| ELM-2000 | 2000 | 4400 | 422 | 16.6 | 360 | 15 | 348 | 13.7 | 512 | 20.2 | 216 | 8.5 | 215 | 8.5 | 105 | 4.1 | 121 | 4.6 | 118 | 259 | |
| ELM-3000 | 3000 | 6600 | 566 | 22.3 | 530 | 20.9 | 400 | 15.7 | 770 | 30.3 | 216 | 8.5 | 222 | 8.7 | 147 | 5.8 | 80 | 3.2 | 181 | 399 | x3.0times |
LOAD OF HOLDING POWER
The load of holding power will changes depending on the thickness, attractive face roughness and quality of material and clearance between the workpiece with magnet. (See as the graphs as below)
