Switching ELM series permanent magnetic lifting plate
Lifting Magnet

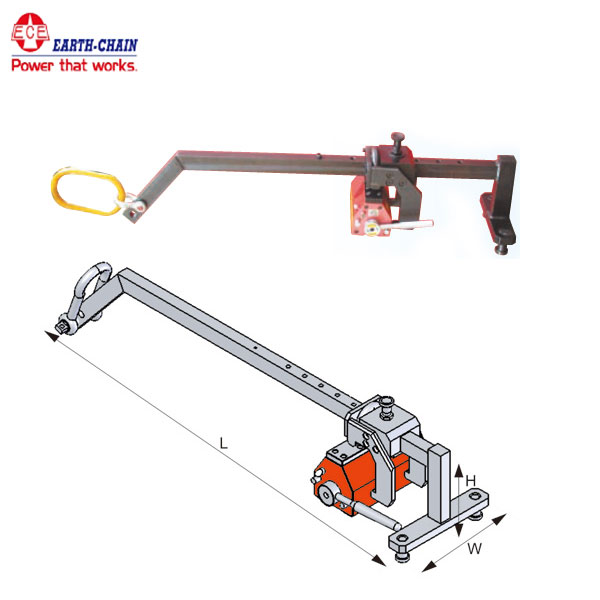

ELM-300V

EZ-Lift Material Handing Accessories

  1. Fast loading for vertical transport.
  2. One person can load and unload.
  3. No dangerous straps & slings.


Used for vertical transport of plate stock for fabricating, machining, etc.



Specification

Model Size L× W × H Weight
mm inch kg lbs
ELM-300V 953 × 216 × 254 37.5 × 8.5 × 10 26 57
ELM-600V 1156 × 272 × 254 45.5 × 10.7 × 10 39 86
ELM-1000V 1207 × 343 × 305 47.5 × 13.5 × 12 58 128



Model Plate Size ( L× W × H min/max )
Capacity L (min. / max.) W (min. / max.) H (min. / max.)
kg lbs mm inch mm inch mm inch
ELM-300V 300 660 200/1500 8/60 300/800 11.8/31.5 6/150 0.25/5.9
ELM-600V 600 1320 300/1800 12/72 300/1000 11.8/39.4 8/250 0.31/9.8
ELM-1000V 1000 2200 300/2000 12.5/79 300/1000 11.8/39.4 10/300 0.93/11.8
