Double Column Machining Center

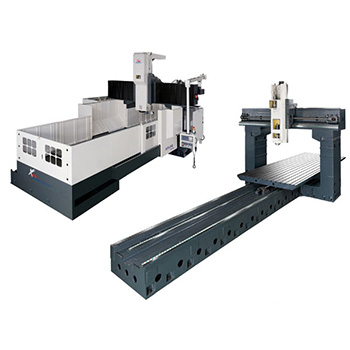

Double Column Machining Center
BMC-3224

Outstanding Features

  • The column and bridge are annealed and stress relieved to ensure structural stability.

  • Linear guideways on X and Y axes, box ways on Z axis.

  • High precision pre-loaded linear guideways feature low frictional co-efficient low stick-slip and high thrust force sensitivity ensuring dynamic movement accuracy.

  • 6,000 RPM gear-driven spindle is standard.

  • 32-tool arm-type ATC.

  • Extra wide door for easy loading and unloading of workpieces.

  • The ideal for: Automobile forming dies, plastic injection molds, machine parts machining, aerospace parts machining.

Specification

MODELBMC-3224
TravelX axis travel3200 mm
Y axis travel2700 mm
Z axis travel920 (1100) mm
Spindle nose to table200~1120 (200~1300) mm
Distance between spindle center to bridge475 mm
Door Width2350 mm
SpindleSpindle speed50~6000 rpm
Spindle motor max. rating18.5 (OPT. 26) kw
Axis motor max. rating7/7/7 kw
Taper sizeBT-50
TableWorking area3200x2100 mm
Max. loading15000 kgs
T-Slots (No. x Width x Pitch)10x 22 x 200 mm
Feed ratesRapids on X / Y/ Z axis15/12/12 m/min
Max. cutting feedrate1-6000 m/min
Tool MagazineNumber of tool32 (OPT. 40/60)
Type of toolBT - 50
Max. tool diameter127 mm
Max. tool weight15 kgs
Max. tool length300 mm
Tools to tools (change time)8 sec
AccuracyPositioningJIS ±0.005/300 mm
Repeatability±0.005 mm
Roundness0.03/300 mm
DimensionsAir source required6 kgs/cm2
Machine weight (Net)38000 kgs
Power source required (KVA.)50 KVA
Floor space (L x W x H)8470x5240x4600 mm


Standard AccessoriesOptional Accessories
Fanuc 18i-MB controllerController (Heidenhain, Seimens, Mitsubishi)
Spindle 6000rpm (gear)Z-axis travel up to 1100mm
Automatic lubricating systemZ-axis travel up to 1500mm
(for direct drive w/ Z-axis linear guide way)
Automatic lubricating oil collector for 3 axesHeighten column by 200mm
Spindle and gear transmission/temperature controlATC (40, 60 tools)
Twin screw and one link type chip conveyor with tankSpindle 8000rpm (belt-drive)
Heat exchanger for electric cabinet30/35HP spindle motor upgrade (Fanuc 32xx only)
Foot switch for tool clamping/unclampingBall screw cooling system (Y/Z axis)
32 tools arm-type tool changeLadder for maintenance
Spindle oil coolerX-axis linear guide roller type (Schneeberger)
Full splash guardZ-axis linear guide way
Air blow for chip (M Code)Direct drive spindle 8000rpm or 10000rpm
(for linear guide way only.)
X & Y linear guideway (roller type)Y-axis linear guide roller type (Schneeberger)
Ball screw cooling system (X-axis)90° angular head
Foundation bolt kitManual universal head
Work lightExtended head with clamping/unclamping tool
RS-232 interface (10 meters)/RJ45Auto tool length measurement
Oil skimmerAuto workpiece Measurement device
Maintenance and operational manualCoolant through spindle
Twin hydraulic counter weight cylindersLinear scales feedback (Heidenhain/Fagor)

CNC rotary table & tailstock
