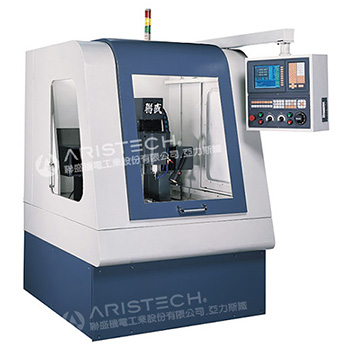

2000i CONTROLLER SPECIFICATION :
-
Special designed for mould industry & 3C manufacturer.
-
Machine frame are lron casting & components which are processed, By precision machine tools.
Full enclosed metal cover, auto lubrication, cooling liquid, and spindle air blast. And spindle oil cooler devices. -
New CNC multi-axes controller with 9.4" TFT LCD display and the handle pulse Generator (MPG).
-
X, Y, Z Axes adopt Panasonic AC servo motor & driver.
-
Full closed loop AC servo control, The resolution can reach 0.001mm.
-
Real time tools path display & simulate exchange tool in engraving procedure.
-
With slash offset, tool offset & screw pitch error compensation.
-
Automation tool regulator, expediently tools change.
-
With open software interface, compatible with Fanuc-0 series code & accept any NC code from 3D CAM software.
-
Used M code for spindle, water pump & tool regulator.
|
Control Axes: |
4-Axes, Extend 8 Axes |
Simultaneous Axes: |
3-Axes |
|
Max. Command Range: |
|
Interpolation Method: |
Linear, Circular, Helical |
|
Interpolation Accuracy: |
0.1μm |
Interpolation Pulse: |
3ms |
|
Positioning Accuracy: |
1μm |
Servo Pulse: |
100μs |
|
Rapid Feed Rate: |
5, 25, 50, 100% |
Feed Rate: |
0~150% |
|
Manual Speed Rate: |
0~150% |
Command Unit: |
1, 10, 100, 1000, 10000μm |
|
Pitch Error Compensation: |
512 Point / Compensation 1~1000μm |
Reverse Pitch Compensation: |
1~65535μm |
9999.999mm
MACHINE SPECIFICATION :
|
SPECIFICATION / MODEL |
LE-45 |
|
|
X, Y, Z Axes Travel |
mm |
400x500x160 |
|
Table Size (X, Y) |
mm |
450x550 |
|
Max. Speed |
m/min. |
10 |
|
Resolution |
mm |
0.0005 |
|
Positioning Accuracy |
mm |
0.001 |
|
Repeat Positioning Accuracy |
mm |
0.005 |
|
CPU Capacity |
|
PII/133MHZ & DSP/ 100MHZ |
|
Memory |
|
128M RAM |
|
Engraving Commend |
|
G Code |
|
3Axes Power |
|
Panasonic AC servo motor |
|
Power Source |
|
AC 220V & 380V |
|
Electric Power |
|
1.3kw |
|
Spindle (Inverter) |
|
1500W DC |
|
Spindle Speed |
rpm |
0~30000 |
|
Machine Weight |
kg |
1250 |
