CNC EDM Series
LS Series Programmable E.D.M. Series

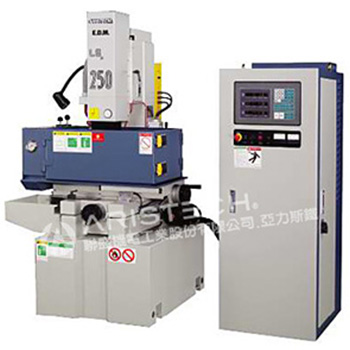

LS-250

THE FEATURES OF LS-SERIES EDM:

  1. THE HIGHLY RIGID, FINE-GRAINED CAST IRON MACHINE BASE, COLUMN, TABLE. AND TRITE-B COATED SLIDE-WAYS, PROVIDE STABILITY AND LONG SERVICE LIFE.
  2. FOUR SETS OF PRECISION LINEAR BEARINGS (GUIDES) AND GROUND LEAD SCREWS (BALL SCREWS FOR LS-550, 580, 650)ON Z-AXIS. THE X&Y AXES ARE EQUIPPED BALL SCREWS (LEAD SCREWS FOR LS-250)FOR ACCURATE POSITIONING.
  3. 20 STEPS PROGRAMMABLE IN Z-AXIS CONTROLLER AND BUILT-IN 3-AXES DIGITAL READOUT, LINEAR SCALES SERVO FEED BACK SYSTEM. RESOLUTION 0.005MM OR 0.0002 INCH.
  4. STANDARD DIGITAL READOUT FUNCTIONS & EDM SAFETY DEVICE LIKE ARCING 1.0MM & FRAME DETECTOR, DIELECTRIC TEMPERATURE & LEVEL SENSOR DETECTOR, EMERGENCY STOP & AUTO. FIRED DETECTOR & EXTINGUISHER, AND POLARITY REVERSE SWITCH COMPLY WITH & SAFETY REQUIREMENT.
  5. ADOPT SLOT-INSET DESIGN FOR CONTROL P.C. BOARDS, CONVENIENT MAINTENANCE. SIMPLE & CLEAR TOUCH PANEL, ALL DIGITAL EDM PARAMETERS, EASY TO UNDERSTAND & OPERATIN.
  6. NEW CIS MACHINE COLOR, NEWLY DESIGNED POWER SUPPLY UNIT, COMPLY TO RELEVANT SAFE & HARMONIZED STANDARDS AS THE DIRECTIVES 2006/42/EC, AS AMENDED AND 2006/95/EC. CERTIFICATE NO.1317011210.
    DATE:08/12/2010. FROM "SAFENET LIMITED" ENGLAND. U.K.
STANDARD ACCESSORIES: OPTIONAL ACCESSORIES:
  • Operating tool box and tool kit

  • Filtering equipment

  • 1 PC electrode holder

  • 1 set flushing nozzle

  • 1 PC quartz work light

  • 1 set clamps

  • Digital readout with linear scales for X,Y,Z axes.

  • X,Y axes ballscrews

  • Lubrication system

  • 1PC automatic Fired dectector& extinguisher.

  • Operation manual & technical data

  • System 3R, Hirschmann, Erowa tooling.

  • Dielectric Coolant System.

  • Orbitting-cut system COC-200.

  • Hydraulic power for up/down front door of work-tank.

  • C-box., rotating spindle.



Specification



ERIES NO. \ SPECIFIC. - LS-250 LS-350 LS-450

Work tank (WxDxH) inner size

mm/inch

790x530x340
(31.1x20.9x13.4)

950x600x370
(37.4x23.6x14.6)

1240x710x400
(48.8x28x15.8)

Work table size (XxY)

mm/inch

600x300(23.6x11.8)

650x350(25.6x13.8)

750x450(29.5x17.7)

Work table travel (XxY)

mm/inch

300x200(11.8x7.9)

400x300(15.7x11.8)

500x400(19.7x15.7)

Work head travel (W-axis)

mm/inch

230(9.1)

280(11.0)

280(11.0)

Ram servo travel (Z-axis)

mm/inch

180(7.1)

200(7.9)

200(7.9)

Minimum /Max. distant between The table surface and electrode plate.

mm/inch

0-380 (0-14.9)

30-500(1.2-19.7)

370-680(14.6-26.8)

Max. electrode weight

kgs/lbs

50(110)

80(176)

100(220)

Max. work piece weight

kgs/lbs

300(660)

400(880)

500(1,100)

External dimension (WxDxH)

mm/inch

1,200x1,200x2,240
(47.2x47.2x86.6)

1,300x1,170x1,980
(51.2x46.1x78)

1,500x1,400x2,040
(59x55.1x80.3)

Packing dimension (WxDxH)

mm/inch

1,245x1,215x2,220
(49x47.8x87.4)

1,395x1,260x2,220
(54.9x49.6x87.4)

1,600x1,510x2,210
(63x59.5x87)

Net weight

kgs/lbs

1,050(2,310)

1,200(2,640)

1,600(3,520)

SERIESNO. \ SPECIFIC. - LS-550 LS-580 LS-650 LS-2010

Work tank (WxDxH)inner size

mm/inch

1300x750x500
(51.2x29.5x19.7)

1,700x1,050x700
(66.9x41.3x27.6)

2,150x1,150x700
(84.7x45.3x27.6)

2,900x1,500x700
(114.2x59.1x27.6)

Work table size (XxY)

mm/inch

800x550
(31.5x21.7)

1,100x700
(43.3x27.5)

1,400x900
(55.1x35.4)

2,240x1,050
(88.2x41.3)

Work table travel (XxY)

mm/inch

600x500
(23.6x19.7)

800x500
(31.5x19.7)

1,200x700
(47.3x27.6)

2,000x1,000
(78.7x39.4)

Work head travel (W-axis)

mm/inch

330(13.0)

-

-

-

Ram servo travel (Z-axis)

mm/inch

250(9.8)

450(17.7)

450(17.7)

550(21.7)

Minimum/Max. distant between The table surface and electrode plate.

mm/inch

0-540
(0-21.3)

520-970
(20.5-38.2)

560-1,100
(22.1-43.3)

600-1,150
(23.6-45.3)

Max. electrode weight

kgs/lbs

200(440)

400(880)

400(880)

500(1,100)

Max. work piece weight

kgs/lbs

600(1,320)

3,000(6,600)

4,000(8,800)

9,000(19,800)

External dimension (WxDxH)

mm/inch

1,650x1,500x2,100
(65x59.1x82.7)

1,670x1,430x2,180
(65.7x56.3x85.8)

2,500x2,500x2,940
(98.4x98.4x115.8)

3,000x2,400x3,150
(118.14x94.5x124)

Packing dimension (WxDxH)

mm/inch

1,745x1,610x2,270
(68.7x63.46x89.4)

2,320x2,280x3,190
(91.4x89.8x125.6)

2,340x2,300x2,500
(92.2x90.6x98.5)

SEPARATED PACKING IN CONTAINER

Net weight

kgs/lbs

1,850(4,070)

5,400(11,880)

6,300(3,860)

13,000(28,600)

  *Optional X,Y axes travel 1,000x600mm



DIELECTRIC FLUID UNIT.



SERIES NO. \ SPECIFIC. - LS-250 LS-350 LS-450

Capacity

LITERS

300

350

360

Filter paper/pump

PCS

2/1PC.

2/1PC.

4/2PCS.

External dimension(WxDxH)

mm/inch

BUILTIN

760X1,100X500
(29.9X43.3X19.7)

930X1,200X500
(36.7X47.3X19.7)

Packing (WxDxH) Dimension

mm/inch

BUILTIN

880X1,210X1,025
(34.7X47.6X40.4)

1,050X1,320X1,025
(41.4X52X40.4)

Net weight

kgs/lbs

BUILTIN

100(220)

120(264)





SERIES NO. \ SPECIFIC. - LS-550 LS-580 LS-650 LS-2010

Capacity

LITERS

400

1,000

2,000

4,200

Filter paper/pump

PCS

4/2PCS

6/2PCS.

6/2PCS.

6/2PCS.

External dimension
 (WxDxH)

mm/inch

940X1,500X500
(37X59.1X19.7)

3,000X1,300X420
(118X51.2X16.5)

2,400x1,100x470x1PC
(94.5x43.3x18.5)
2,600x1,100x470x1PC
(102.4x51.2x18.5)

3,000x1,500x470x2PC
(118.1x59x18.5)

Packing  (WxDxH)
Dimension

mm/inch

1,060X1,640X1,025
(47.1X64.6X40.4)

1,550X2,515X970
(61x99x38.2)

2,700x1,250x1,660
(106.3x49.2x65.4)

 Deep on the Required

Net weight

kgs/lbs

220(484)

300(660)

750(1,650)

 Deep on the Required

Mold
Machine
