Precision Locknuts
SBL Series
SBL-B
SBL-B Precision Lock Nut

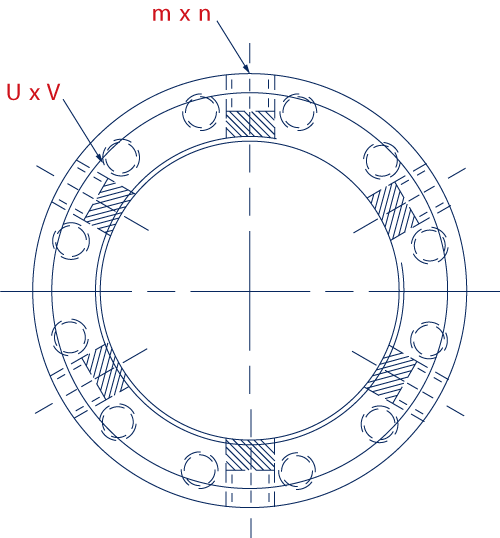

This design differs from the SBL-A in that there are balance adjustment screws added at the trailing surface, making for added convenience in precision adjustment. Balance adjustment screw holes can be fitted with screw-in plugs (option), eliminating high frequency noise and subsequent vibration.

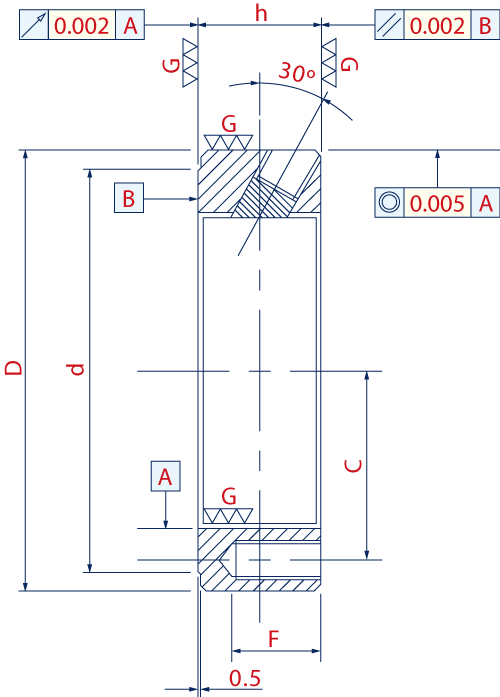

Specification
-
Material Composition：SCM440(42CrMo4)
-
Hardness：HRC48° ~52°
-
Thread Precision：ISO 4H
-
Parallelism：0.002mm
-
Edge Bevel：0.002mm
-
Concentricity：0.005mm
