Products

Precision Locknuts
SBL Series
SBL-C

SBL-C Precision Lock Nut

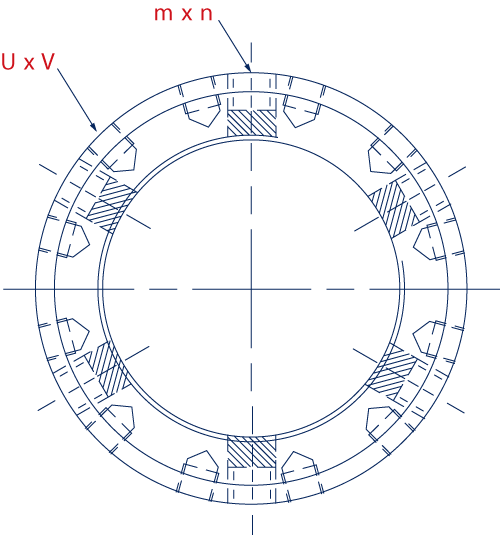

The difference with this design is that the balance adjustment screws tighten from the outer skirt at a radial angle. It is the optimal choice for spindles with restricted space. Balance adjustment screw holes can be fitted with screw-in plugs (option), eliminating high frequency noise and subsequent vibration.

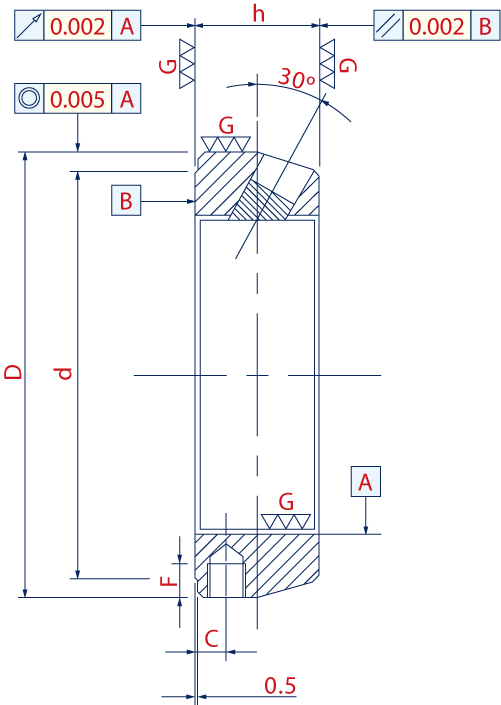

Specification

  • Material Composition:SCM440(42CrMo4)

  • Hardness:HRC48° ~52°

  • Thread Precision:ISO 4H

  • Parallelism:0.002mm

  • Edge Bevel:0.002mm

  • Concentricity:0.005mm
