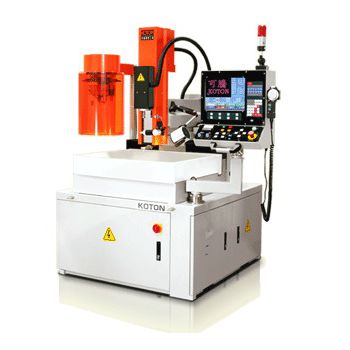

Feature
●C type structure.
●Mirror image function.
●Coordinates can rotate at any angle.
●Automatic copper tube deviation correction.
●Automatic 16 & 30 copper tube changers available.
●Direct and easy learning dialogue operation interface.
●Data could be input by USB, or transfer through network.
●Automatic edge, internal diameter finding, and centering.
●The machining coordinate can be input directly when NC program is not available.
●Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
●Automatic illustrates the path of current and next drilling position with color.
●Precision servo motors on X,Y,Z axes provide excellent stability during drilling.
●The flushing medium used by this machine is distilled water - environment friendly.
●Provide 1μ optical scale, linear slideway and ballscrew ensure very accurate movements.
●NC program G-code and DXF files could be directly read; ●Automatically finds the start cutting point and begins a fine hole drilling process.
●Z axis auto reset and depth calculation. (Z axis automatically checks depths of holes, and then returns in order to complete any that are too shallow.)
