OIL MIST AIR CLEANER
OIL MIST AIR CLEANER
KF-10E/20E/30E

●The cleanest air in the world :
Using HEPA EU-H11 filter, Absorb 99.5% of 0.3μm particles.
●Saving the cost :
Unique oil drain design. Lubricant recycling.
●Create a clean working environment :
Saving electrical energy, Strong air flow, but lower noise.

Specification

ONE-SITE
TESTING

Low carbon footprint, clean air, and environmental recycling

Specifications

Model   KF-10E

  • Power3ΦAC380V or AC220V 50/60HZ
  • Efficiency99.95% HEPA EU H11 standard
  • Motor0.2 KW
  • Weight(kgs)41
  • Air Flow m3/min (50Hz/60Hz)9/12.8
  • Air Intake DiameterØ150
  • Static Pressure kPa (50Hz/60Hz)0.75/1.13
  • Effective Filtration≦5m3
  • Noise db (A) (50Hz/60Hz)64/67

Model   KF-20E

  • Power3ΦAC380V or AC220V 50/60HZ
  • Efficiency99.95% HEPA EU H11 standard
  • Motor0.4 KW
  • Weight(kgs)46
  • Air Flow m3/min (50Hz/60Hz)18/21.5
  • Air Intake DiameterØ150
  • Static Pressure kPa (50Hz/60Hz)1.08/1.74
  • Effective Filtration≦10m3
  • Noise db (A) (50Hz/60Hz)65/68

Model   KF-30E

  • Power3ΦAC380V or AC220V 50/60HZ
  • Efficiency99.95% HEPA EU H11 standard
  • Motor0.75 KW
  • Weight(kgs)63
  • Air Flow m3/min (50Hz/60Hz)28/32.5
  • Air Intake DiameterØ150
  • Static Pressure kPa (50Hz/60Hz)1.42/1.82
  • Effective Filtration≦18m3
  • Noise db (A) (50Hz/60Hz)68/73

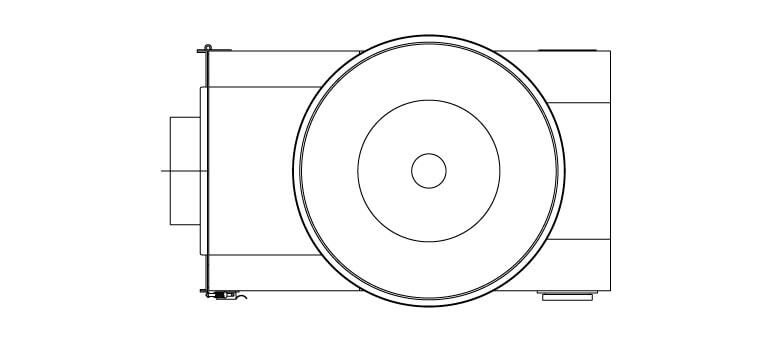

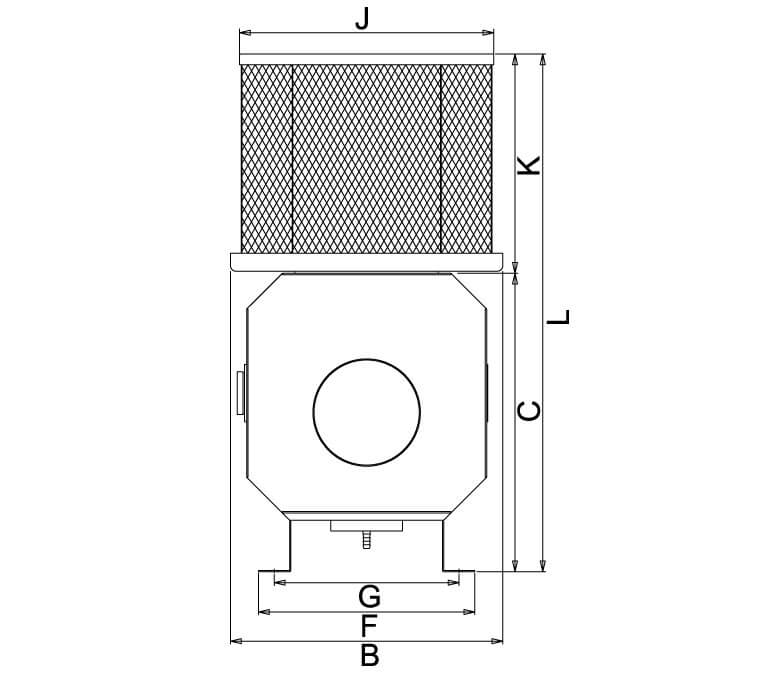

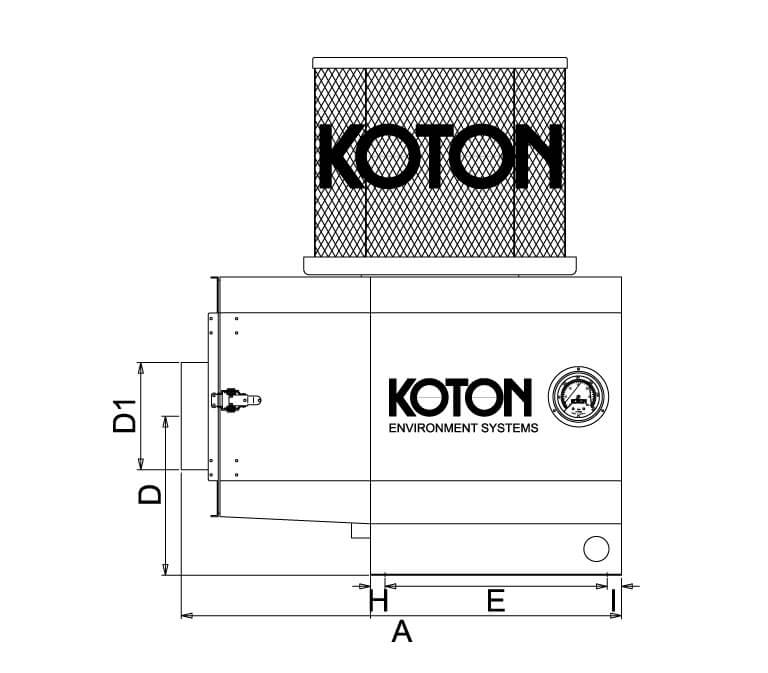

機器尺寸

Model KF-10E KF-20E KF-30E
A 621 646 750
B 369 369 450
C 435 464 513
D 253.5 253.5 279.3
E 295 310 363
F 209 234 284
G 162 187 237
H 25 25 30
I 25 25 35
J Ø360 Ø360 Ø435
K 310 410 410
L 745 874 923
