Products

Traditional Series
Drilling Electric Discharge Machine

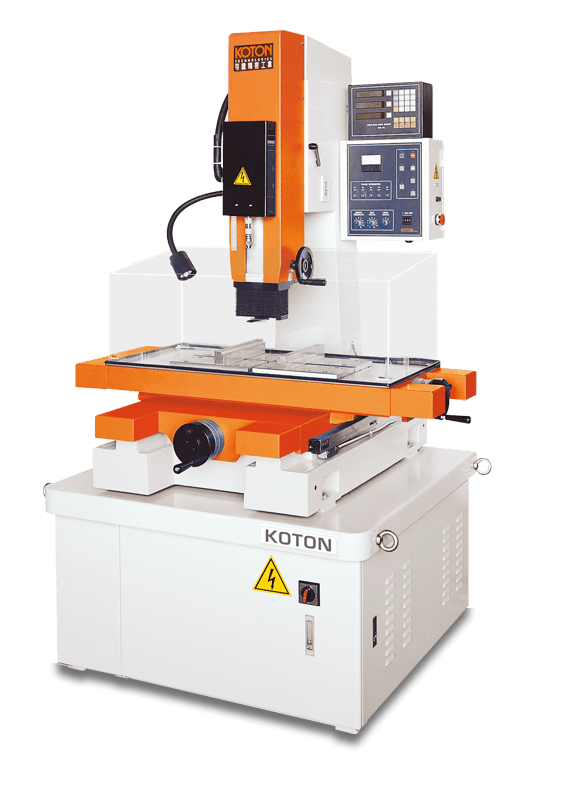

KTH-605

Feature
●Suitable for bigger workpiece and plastic mold. Precision servo motor control for stable drilling.
●Automatic pressure release function is used in the system.
●The long life worktable is made of stainless steel.
●Capable of drilling at any angle, into curved surfaces, and irregular shapes.
●Designed for drilling hardened tool steel, carbides and other conductive materials.
●Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.

Specification

Specifications

  • Work table dimension (mm)800 × 450
  • Max. Workpiece dimension (mm)1000 × 500
  • Table travel X/Y (mm)600 × 400
  • Z1+Z2 axis travel(mm)345 + 250
  • Ram servo travel (mm)350
  • Max. Length of electrode (mm)400
  • Min. Electrode diameter (mm)Ø0.2 ~ Ø3.0
  • Max. Workpiece weight (kgs)300
  • DielectricWater
  • Capacity of dielectric (litres)20
  • Machine weight (nw/gw) (kg)2100/ 2200 (Machine)
  • 60/ 70 (Electrical Control Box)
  • Packing dimension (mm)1800 × 1500 × 2230 (Machine)
  • 900 × 800 × 1700 (Electrical Control Box)
  • Max. Current (A)25
  • Peak current setting (ip) (steps)6
  • Pulse on-time setting (steps)9
  • Pulse off-time setting (steps)9
  • High volts (steps)3
  • Power input (V)220/ 380/ 415
  • Max. Rating power (KVA)4

Accessories

  • 01.5μ 2 axis optical scale and monitor
  • 02.Precision electrode collet jig Ø0.1~Ø3.0mm
  • 03.Electrode pipe guide Ø1.0mm
  • 04.Electrode tube Ø1.0mm × 10
  • 05.Halogen work lamp
  • 06.Tool box × 1
  • 07.Filter × 2
  • 08.Parallel block 1set
  • 09.X, Y, Z axis precision ball screw
  • 10.Auto pressure release pump × 1
  • 11.X, Y, Z axis precision servo motor ( Z axis )
