CNC Double Column Machining Center
CNC Double Column Machining Center (SDV-VH)

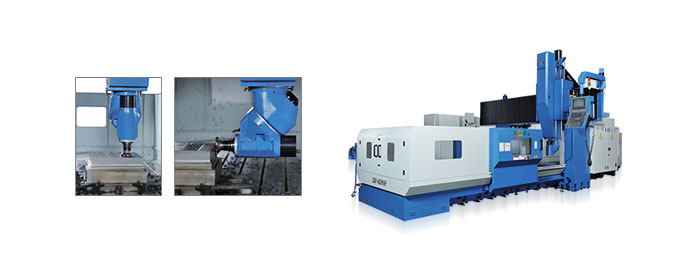

SDV-VH
Specification
|
Item / Model
|
Unit
|
SDV-3229 / 3234 / 4224VH
|
||||
|
X-Axis Travel
|
mm
|
3200 /3200 / 4200
|
||||
|
Y-Axis Travel
|
mm
|
2900 / 3400 / 2400
|
||||
|
Z-Axis Travel
|
mm
|
760(1000 / 1200 / 1400 )
|
||||
|
Table Size
|
mm
|
3000x2200 / 3000x2700 / 4000x1700
|
||||
|
T-Slots Dimension
|
mm
|
22(24、28)
|
||||
|
Table Load Capacity
|
kgs
|
10000 / 12500 / 12000
|
||||
|
Distance Between Columns
|
mm
|
2500 / 3000 / 2000
|
||||
|
Distance From Spindle Nose To Table
|
mm
|
V – 250 ~ 1010 mm ( 250 ~ 1250 mm )( 250 ~ 1450 mm )( 250 ~ 1650 mm )
H – 280 ~ 1040 mm ( 280 ~ 1280 mm )( 280 ~ 1480 mm )( 280 ~ 1680 mm ) |
||||
|
Spindle Taper Tool Shank
|
|
ISO NO.50 BT-50、CAT-50、DIN 69871
|
||||
|
Spindle Speed Range
|
rpm
|
3000(5000) rpm
|
||||
|
Main Motor Output
(30 Min Rating/Cont) |
HP
|
35 / 30
|
||||
|
Rapid Traverse Rate X,Y-Axis
|
mm/min
|
12000
|
||||
|
Rapid Traverse Rate Z-Axis
|
mm/min
|
12000(15000)
|
||||
|
Cutting Feed Rate
|
mm/min
|
1~5000(1~8000)
|
||||
|
Minimum Input Increment
|
mm/min
|
0.001
|
||||
|
Tool Magazine Capacity
|
pcs
|
(20/ 32/ 40/ 60)
|
||||
|
Max.Tool Diameter
/Adjacent Pockets Empty |
mm
|
Ø125 / Ø210
|
||||
|
Max. Tool Length
(From Gauge Line) |
mm
|
350
|
||||
|
Max. Tool Weight
|
kgs
|
(18/ 20 )
|
||||
|
Tool Selection Method
|
|
(ABS, Random Bi)
|
||||
|
Tool Change Time (T-T) (Approx)
|
secs
|
8(4.5)
|
||||
|
Power Requirement
|
Kva
|
40(45) / 40(45) / 45(50)
|
||||
|
Floor Space Requirement
|
mm
|
9400x6500 / 9400x7000 / 11400x6000
|
||||
|
Machine Height From Floor Level
|
mm
|
4650(4990)(5520)(6110)
|
||||
|
Machine Weight (Approx)
|
kgs
|
31500 / 34500 / 33500
|
||||
|
CNC Controller
|
Fanuc,Meldas,Siemens, Heidenhain series etc.
|
|||||
|
Positioning Accuracy
|
mm
|
|
||||
|
Repeatability Accuracy
|
mm
|
|
||||
| STANDARD ACCESSORIES | |
| 1. LUBRICATION SYSTEM 2.GLAZED WINDOW-TYPE SPLASH GUARD 3.SCREW-TYPE CHIP CONVEYOR 4.LINK-TYPE CHIP CONVEYOR 5.COOLANT EQUIPMENT 6.SPINDLE OIL COOLER 7.Z-AXIS HYDRAULIC BALANCE UNIT 8.PNEUMATIC UNIT 9.AIR BLOW FOR CHIP(BY M-CODE) |
10.WORK LAMP 11.AUTO POWER-OFF SYSTEM 12.M.P.G 13.PROGRAM END&ALARM LAMP 14.RS-232 INTERFACE 15.LEVELING BLOCK AND BOLTS 16.TOOL KIT 17.MAINTENANCE AND OPERATION MANUAL 18.INSPECTION LIST |
| OPTIONAL ACCESSORIES | |
| 1.AUXILIARY TABLE 2.NC(ROTARY TABLE,INDEX TABLE) 3.20/32/40/60 ATC MAGAZINE CAPACITY 4.TOOL PRESETTER 5.AUTO TOOL LENGTH DIAMETER MEASUREMENT 6.AUTO TOUCH PROBE SYSTEM 7.LINEAR SCALE FEEDBACK 8.COOLANT THROUGH SPINDLE SYSTEM |
9.OIL HOLE TOOL SHANK DEVICE 10.COOLANT AUTO AIR MIST DEVICE 11.COOLANT NOZZLE ANGLE REMOTE CONTROL 12.SPINDLE THERMAL COMPENSATION |
Note:
1.To research and improve our company keep thr right of changing design and structure at
any time, this data is just for reference.
2.We can make special specification for your order.
