CNC Long post stereotypes five face machining center machine

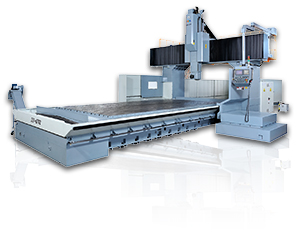

CNC Double Column 5-Face Machining Center (S5F)
CNC龍門柱定型五面切削加工中心機 (S5F)
► S5F- 3732 , S5F- 4732 , S5F- 4737 ,
S5F- 5732 , S5F- 5737 , S5F- 6737 ,
S5F- 5742 , S5F- 6742
Specification
| MODEL / ITEM | UNIT | S5F-5737 / 6737 | S5F-5742 / 6742 |
| X- AXIS TRAVEL | mm | 5700 / 6700 | 5700 / 6700 |
| Y- AXIS TRAVEL | mm | 3700 | 4200 |
| Z- AXIS TRAVEL | mm | 1000 ( 1200 ) | |
| TABLE SIZE | mm | 5000x2700 / 6000x2700 | 5000x3200 / 6000x3200 |
| T SLOTS DIMENSION | mm | 22 ( 28 ) | |
| TABLE LOAD CAPACITY | kgs | 20000 / 22500 | 22000 / 24000 |
| DISTANCE BETWEEN TWO COLUMNS | mm | 3000 | 3500 |
| DISTANCE FROM SPINDLE NOSE TO TABLE | mm | V-150 ~ 1150 mm ( 150 ~ 1350 mm ) H-288 ~ 1288 mm ( 288 ~ 1488 mm ) | |
| SPINDLE TAPERBTOOL SHANK | ISO NO.50 BT-50BCAT-50BDIN 69871 | ||
| SPINDLE SPEED RANGE | rpm | 20 3000 TWO STEP GEAR BOX | |
| MAIN MOTOR OUTPUT (30 MIN RATING/CONT) | HP | 35 / 30 | |
| RAPID TRAVERSE RATE X AXIS | mm/min | 8000 | |
| RAPID TRAVERSE RATE Y , Z AXIS | mm/min | 10000 ( 12000 ) | |
| CUTTING FEED RATE | mm/min | 1 5000 ( 1 8000 ) | |
| MINIMUM INPUT INCREMENT | mm | 0.001 | |
| TOOL MAGAZINE CAPACITY | pcs | 40 ( 60 / 80 / 120 ) | |
| MAX. TOOL DIAMETERADJACENT POCKETS EMPTY | mm | Ø125 / Ø250 | |
| MAX. TOOL LENGTH (FROM GAUGE LINE) | mm | V-400 / H-400 | |
| MAX. TOOL WEIGH T | kgs | 20 | |
| TOOL SELECTION METHOD | ABS]Shortest Path^ | ||
| TOOL CHANGE TIME (T-T) | secs | V-14 / H-20 | |
| POWER REQUIREMENT | KVA | 65 | |
| FLOOR SPACE REQUIREMENT | mm | 14400x7220 16400x7220 | |
| MACHINE HEIGHT FROM FLOOR LEVEL | mm | 5100 ( 5500 ) | |
| MACHINE WEIGHT (APPROX) | kgs | 61000 66000 | |
| CNC CONTROLLER | Fa | Fanuc, Siemens, Heidenhain, Series etc | |
| POSITIONING ACCURACY | mm | JIS 6338 0.01/300, VDI 3441 P0.035 | |
| REPEATABILITY ACCURACY | mm | 0.005 | |
| STANDARD ACCESSORIES | |
| 1. HORIZONTAL SPINDLE 90° AUTO DIVIDE (4 POSITION) 2.40 ATC MAGAZINE FOR V AND H TOOL CHANGE 3.LUBRICATION SYSTEM 4.SEMI-SPLASH GUARD 5.SCREW-TYPE CHIP CONVEYOR 6.CHAIN-TYPE CHIP CONVEYOR 7.COOLANT EQUIPMENT 8.SPINDLE OIL COOLER 9.Z-AXIS HYDRAULIC BALANCE UNIT | 10.PNEUMATIC UNIT 11.AIR BLOW FOR CHIP 12.WORK LAMP 13.AUTO POWER-OFF 14.M.P.G 15.PROGRAM END & ALARM LAMP 16.RS-232 INTERFACE 17.LEVELING BLOCK AND BOLTS 18.TOOL KIT 19.MAINTENANCE AND OPERATION MANUAL> 20.INSPECTION LIST |
| OPTIONAL ACCESSORIES | |
| 1.AUXILIARY TABLE (BY ORDER SIZE) 2.NC (ROTARY TABLE, INDEX TABLE) 3.60,80,120 A.T.C MAGAZINE CAPACITY 4.AUTO TOOL LENGTH DIAMETER MEASUREMENT 5.AUTO TOUCH PROBE SYSTEMT 6.LINEAR SCALE FEEDBACK | 7.COOLANT THROUGH SPINDLE SYSTEM 8.COOLANT THROUGH TOOL SHANK DEVICE 9.COOLANT AUTO AIR MIST DEVICE 10.SPINDLE TRANSMISSION GEAR OIL MIST 11.HORIZONTAL SPINDLE AUTO DIVIDE (8,12,24,72 POSITION) |
Note:
1. ( ) Description is optional accessories.
2. To research and improve our company keeps the right of changing design and structure at any time, this
data is just for reference.
